Accurate Environmental Test Chamber Temperature Humidity And Altitude Chamber
Product Details
| Humidity Range: | 20% To 98% RH | Interior Material: | Stainless Steel Plate SUS304 |
|---|---|---|---|
| Power Supply: | AC380V 50Hz | Temp Fluctuation: | ±0.5℃ |
| Air Pressure Range: | Normal Pressure To ~1kPa | Configuration Interface: | USB, WLAN, RS232 Port (APP Function Optional) |
| Temp Cooling Rate: | 0.7℃~1℃/min | Temp Rising Rate: | 0.7℃~1℃/min |
| Highlight |
Accurate Environmental Test Chamber,Temperature Environmental Test Chamber,Altitude Environmental Test Chamber |
||
Product Description
Climatic chamber with 1m³ (35ft³) capacity for hot/cold, vacuum, and humidity testing ranging from -65°C to +200°C at 10 mbar (approx. altitude 85 kft).
- Combined temperature, humidity, and vacuum testing on electronic components
- Designed for electronics operating at voltages below 6000V
- Ideal for electronics, defense, and aeronautics industries
- Test space with conditioning unit at the back
- Machinery with electrical cabinet on rear side
- Front-mounted control board

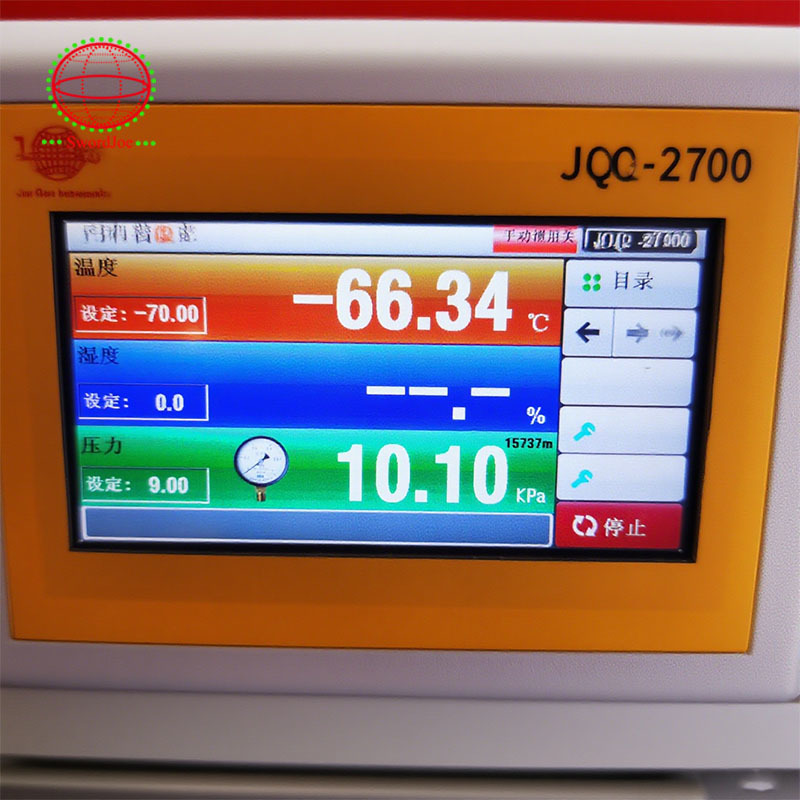

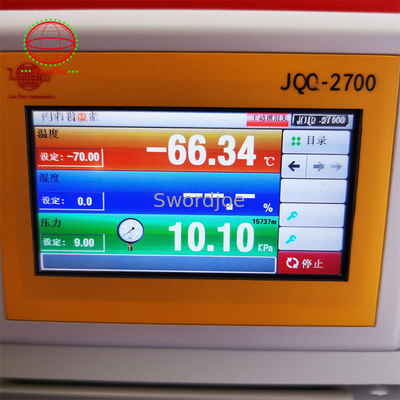

- Touch screen control with supervision software
- Average cooling rate: 10°C/min (+175°C to -37°C, empty at 150 mbar)
- Average heating rate: 10°C/min (-37°C to +175°C, empty at 150 mbar)
- Temperature stability: ≤ ±0.5°C
- Temperature homogeneity: ±2°C at 10cm from walls
- DUT heat dissipation: 2kW at -30°C
- Temperature range: +10°C to +95°C
- Humidity range: 10-98% RH (without dissipation, empty at 150 mbar for max 4h)
- Uniformity: ±3% at 10cm from walls
- Range: AP to 10 mbar, regulated down to 50 mbar (approx. 63.5 kft altitude)
- Operational range: 100°C to -65°C
- Regulating accuracy: ±1 mbar
| Model | JQTA-225 | JQTA-504 | JQTA-1000 | JQTA-1700 | JQTA-3400 |
|---|---|---|---|---|---|
| Inner Size (cm) | 50×75×65 | 80×70×90 | 100×100×100 | 195×315×516 | 407×210×407 |
| Volume (L) | 225 | 504 | 1000 | 1700 | 3400 |
| Temp. Range | L type: -40°C~150°C S type: -70°C~150°C (customizable) |
||||
| Humidity Range | 20% to 98% RH | ||||
| Temp Fluctuation | ±0.5°C | ||||
| Cooling Rate | 0.7°C~1°C/min | ||||
| Heating Rate | 0.7°C~1°C/min | ||||
| Materials | Exterior: 1.5mm Electrolytic plate with Electrostatic painting Interior: Stainless steel plate SUS304 |
||||
| Air Pressure Range | Normal pressure to ~1kPa | ||||
| Controller | TW DELTA PLC, 7" or 10" color touch screen | ||||
| Power Supply | AC380V @50Hz | ||||
- Available with low GWP refrigerants (R449a, R448a, R508B)
- Configuration interface with USB, WLAN, RS232 port (optional APP function)
- Premium compressor options: French Tecumseh, German Bitzer or Bock
Note: Performance data refers to +26°C ambient temperature, 415V/50Hz nominal voltage, without test specimen or accessories. Sound pressure level measured at 1m height and 1m distance from equipment surface.
