AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber

Brand Name:	Jianqiao
Model Number:	JQTA-225
MOQ:	1
Delivery Time:	5 WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Humidity Range:

20% To 98% RH

Interior Material:

Stainless Steel Plate SUS304

Power Supply:

AC380V 50Hz

Temp Fluctuation:

±0.5℃

Air Pressure Range:

Normal Pressure To ~1kPa

Configuration Interface:

USB, WLAN, RS232 Port (APP Function Optional)

Temp Cooling Rate:

0.7℃~1℃/min

Temp Rising Rate:

0.7℃~1℃/min

Packaging Details:

Wooden case

Supply Ability:

300/YEAR

Highlight:

AC380V Temperature Humidity Altitude Chamber

50Hz Temperature Humidity Altitude Chamber

Altitude environmental testing chamber

Product Description

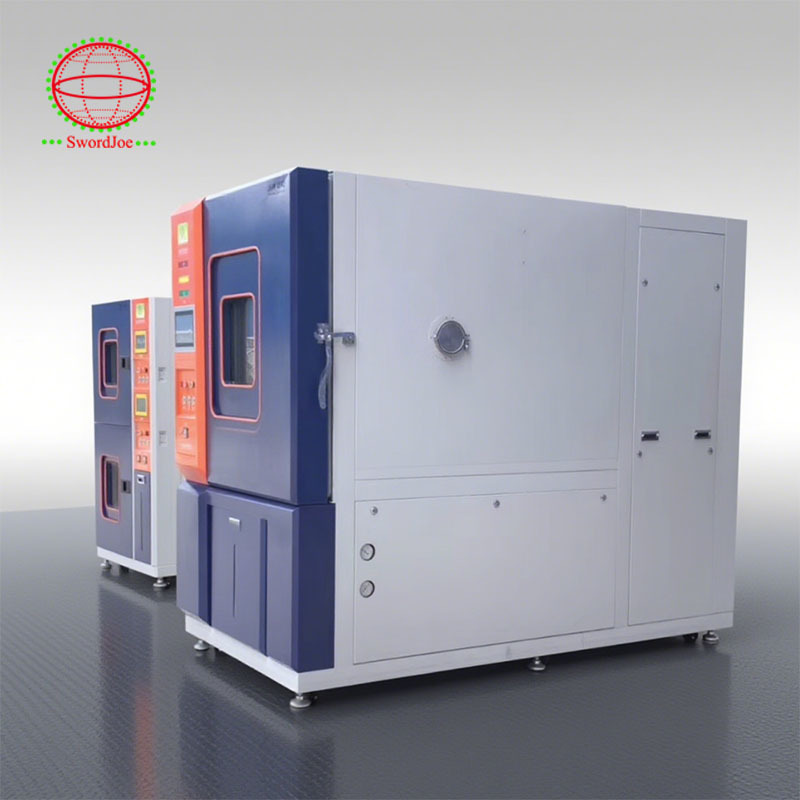

Reliable Temperature, Humidity, & Altitude Chamber for Quality Testing

The Temperature, Humidity, and Altitude Chamber is a state-of-the-art testing solution designed to simulate a variety of environmental conditions for research, product testing, and quality control. These chambers offer precise control over temperature, humidity, and altitude levels, making them ideal for industries such as aerospace, automotive, electronics, and pharmaceuticals.

Key Features

Programmable climate control for precise environmental simulation
Real-time monitoring of all test parameters
Customizable settings for diverse testing requirements
Tests product performance under extreme heat, cold, humidity, and pressure conditions
Helps ensure compliance with global industry standards

Technical Specifications

Model	JQTA-225	JQTA-504	JQTA-1000	JQTA-1700	JQTA-3400
Inner size (cm)	50×75×65	80×70×90	100×100×100	195×315×516	407×210×407
Volume (L)	225L	504L	1000L	1700L	3400L
Temperature Range	L type: -40℃~150℃ S type: -70℃~150℃ (customizable)
Humidity Range	20% to 98% RH
Temperature Fluctuation	±0.5℃
Temperature Variation in Space	No-load at atmospheric pressure ±3℃ (≥100℃), ±2℃ (≤100℃)
Cooling Rate	0.7℃~1℃/min
Heating Rate	0.7℃~1℃/min
Exterior Material	1.5mm Electrolytic plate with Electrostatic painting
Interior Material	Stainless steel plate SUS304
Air Pressure Range	Normal pressure to ~1kPa

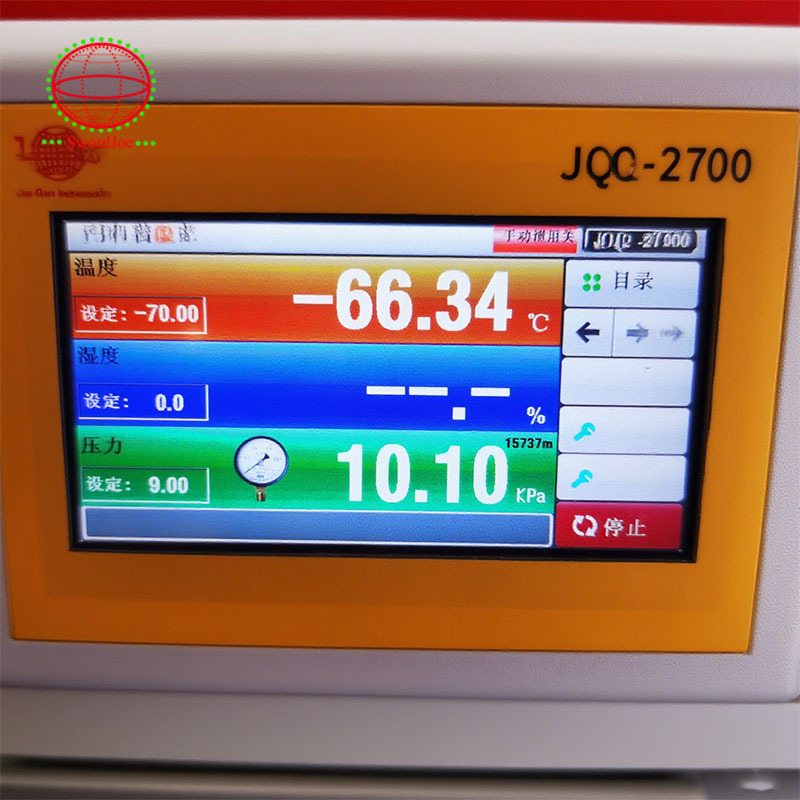

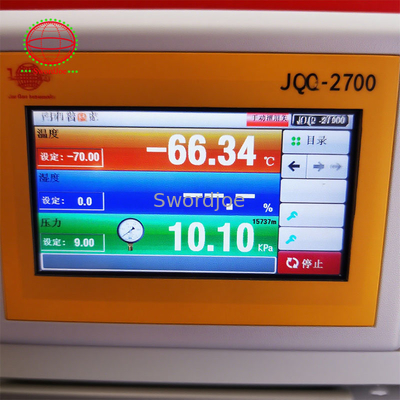

Controller	TW DELTA PLC, 7" or 10" color touch screen control
Compressor	French Tecumseh, Germany Bitzer, or Bock brand
Power Supply	AC380V @50Hz

Additional Features

Configuration interface with USB, WLAN, RS232 port (APP function optional)
Available with low GWP refrigerants: R449a, R448a, and R508B

Note: Performance data refers to an operating room temperature of +26°C, 415 V/50 Hz nominal voltage, without test specimen and without accessories. Sound pressure level measurements were taken in free-field environments at 1 meter height and distance from equipment surface.
