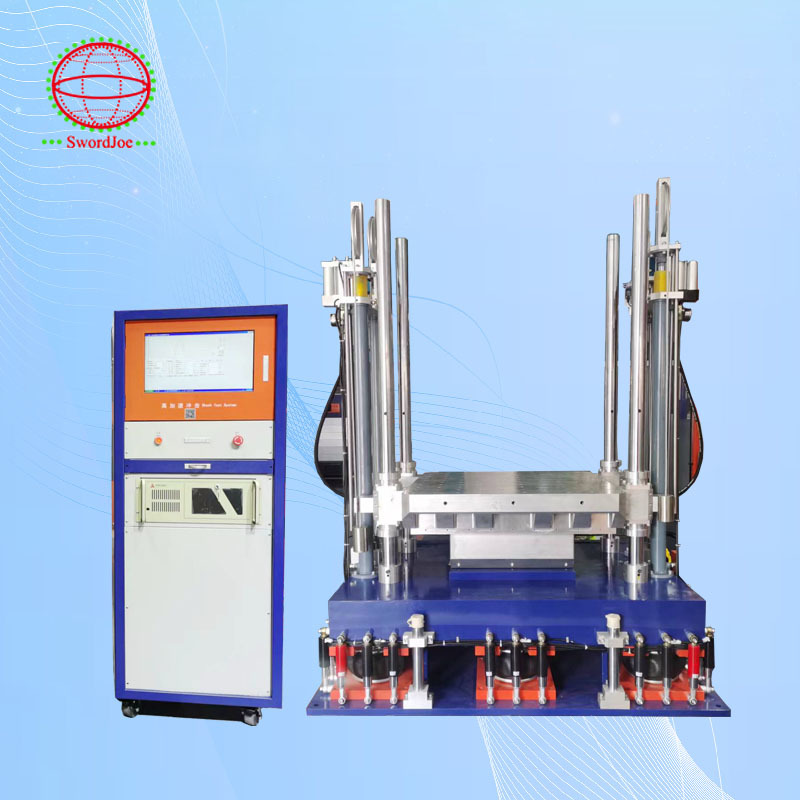

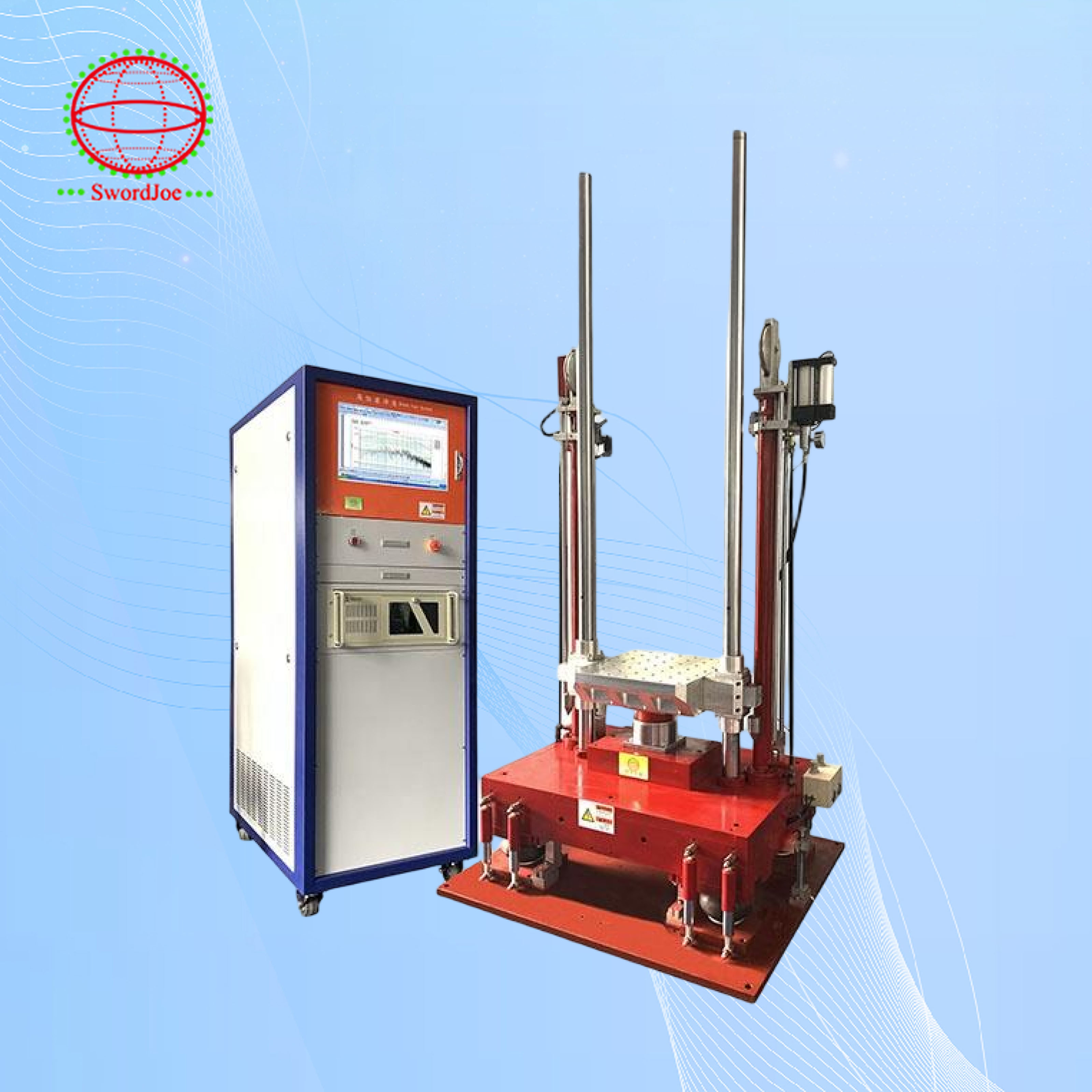

Digital Control Hydraulic Shock Test System For ISTA Package Test
Product Details
| Features: | Digital Control | Name: | Shock Test System |
|---|---|---|---|
| Control And Measurement System: | OKS01 | Power Requirements: | 220V±10% Single Phase AC 50Hz 2kVA |
| Standard: | GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200 | ||
| Highlight |
Hydraulic Shock Test System,ISTA Package Shock Test System,Hydraulic Shock Test Machine |
||
Product Description
The Shock Test Machine is a high-acceleration testing system specifically designed to meet military industry and home appliance testing requirements. Utilizing drop principle technology with air pressure reverse thrust or spring energy storage, it achieves various acceleration levels through adjustable inflation pressure. For higher accelerations, the system includes a waveform amplifier.
This automatic hydraulic hoist type machine simulates real-world shock conditions to measure product fragility levels and evaluate protective packaging for structural optimization. It supports half-sine wave, terminal-peak sawtooth wave, and square wave shock tests.
- Two or more guidance shafts with hydraulic hoist system for balanced lifting with minimal noise
- Optimized magnesium alloy table with high rigidity and silent high-frequency operation
- Integrated brake system generates significant skid force to prevent secondary shock
- Digital controller ensures precise hoist height with perfect repeatability
- Buffer base reduces shock transmission to floor, eliminating need for special foundation
| Model | IS5 | IS10 | IS25 | IS50 | IS100 | IS200 | IS300 |
|---|---|---|---|---|---|---|---|
| Maximum test load (kg) | 5 | 10 | 25 | 50 | 100 | 200 | 300 |
| Table size (mm) | 120×120 | 200×200 | 350×350 | 500×500 | 700×700 | 750×750 | 800×800 |
| Shock waveform (m/s²) | Half sine waveform: 100~30000 (IS5), 100~20000 (IS10), 100~10000 (IS25), 100~6500 (IS50), 150~6000 (IS100), 150~5000 (IS200), 150~3500 (IS300) After peak saw-tooth: 100~1000 Trapezoidal wave: 150~1500 (IS5-IS100), 150~1200 (IS25-IS200), 100~1000 (IS300) |
||||||
| Pulse duration time (ms) | Half sine waveform: 0.5~20 (IS5), 0.6~20 (IS10), 0.8~20 (IS25), 1.5~20 (IS50), 2~20 (IS100), 2.5~20 (IS200), 3~20 (IS300) After peak saw-tooth: 6~18 Trapezoidal wave: 6~25 |
||||||
| Maximum impact distance (mm) | 1550 | 1500 | 1400 | ||||
| Anti-secondary impact device | Air pressure friction brake | Hydraulic friction brake | |||||
| Table weight (kg) | 1300 | 1500 | 2800 | 3800 | 4350 | 4900 | 6250 |
| Dimensions (L×W×H mm) | 900×450×2600 | 1000×500×2700 | 1100×800×2800 | 1100×750×2800 | 1350×850×2850 | 1420×920×2900 | 1480×1000×2950 |
| Hydraulic pump station power (kVA) | 2.5 | 2.5 | 4 | 4.6 | 4.6 | 6.2 | 6.5 |
- Control and measurement system: OKS01
- Power requirements: 220V±10% single phase AC, 50Hz, 2kVA
- Hydraulic pump station power: 380V±10% 3 phases AC, 50Hz
- Compliance standards: GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200
