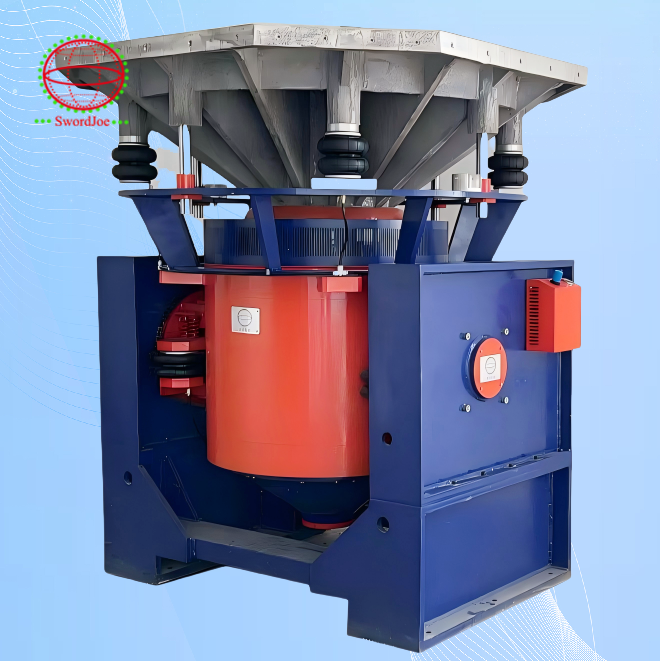

Industrial Vibration Table For Automotive Electronics And Construction Industries
Product Details
| Frequency: | 2000Hz | Sine Force: | 50kN /5000kg |
|---|---|---|---|
| Random Force: | 50kN /5000kg | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 800KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
Industrial vibration test table,Vibration table for material testing,Vibration test table for automotive |
||
Product Description
Designed for rigorous vibration resistance testing, this industrial vibration table is widely used across automotive, electronics, and construction industries to ensure product durability under transport conditions.
- Frequency: 2000Hz
- Sine force: 50kN / 5000kg
- Random force: 50kN / 5000kg
- Shock force: 98kN / 9800kg / 9918lbf
- Channel options: 2/4/8/16
- Maximum acceleration: 100g
- Maximum displacement: 100mm (4") / 76mm (3") / 51mm (2")
- Maximum load: 800KG
- Moving parts mass: 20KG
- Armature diameter: 335mm
Most consumer products undergo vibration testing, with package testing being the most common application. Our vibration tables simulate the complete product journey from factory packaging to final customer delivery.
A typical application involved testing two 85kg plasma screen televisions in their transport packaging. The system accurately reproduced transport conditions, enabling packaging optimization and material savings. Testing included:
- Sine tests (typically <5 mm peak-to-peak in the 5-20 Hz range)
- Random tests (<1.5 g up to 200 Hz)
| Shaker Model | JQA-502-450 / JQA-503-450 |
|---|---|
| Frequency Range (Hz) | 5~2700 |
| Sine force (KN) | 50 |
| Shock force (KN) | 100/150 |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. Displacement (mm p-p) | 51/76 |
| Max. load (kg) | 800 |
| Vibration isolation frequency(Hz) | 2.5 |
| Shaking table type | JQ-50 |
| Moving parts weight (kg) | 50 |
| Armature diameter (φmm) | 450 |
| Allowable eccentric moment(Nxm) | 980 |
| Outer dimension (W*H*D) | 1650*1180*1060 |
| Shaker weight (kg) | 4500 |
As a leading manufacturer specializing in vibration test systems, environmental test chambers, and battery testing equipment, we combine advanced R&D capabilities with professional production and comprehensive after-sales support. Our team includes senior engineers recruited nationwide, and our products serve top enterprises across multiple industries.
All equipment is manufactured in strict compliance with ISO9001 standards, meeting international specifications including ISO, ASTM, DIN, EN, BS, UL, JIS, and GB/T. Our solutions are widely adopted in new energy vehicles, aerospace, shipping, electronics, and scientific research applications.
