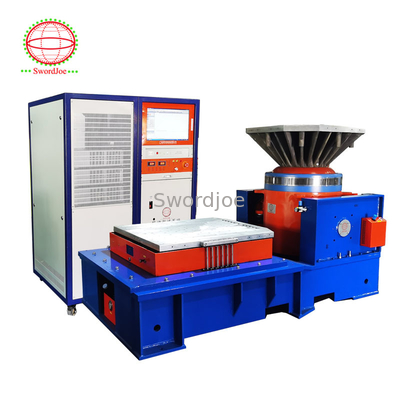

Lithium Ion Battery Vibration Test Table For EV Battery 98kN / 9800kg / 9918lbf Shock Force
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
EV Battery Vibration Test Table,Vibration Test Table 98kN,Lithium Ion Battery Vibration Test |
||
Product Description
| Frequency | 2000Hz |
| Sine force | 20kN /2000kg/4409lbf |
| Random force | 20kN /2000kg/4409lbf |
| Shock force | 98kN /9800kg/9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |
Lithium-ion batteries are the most common battery type used for electric vehicles. During their lifespan, these batteries undergo various vibrations and temperature changes. Several standardized tests have been developed to simulate long-term environmental effects on batteries at different size levels (cell, module, pack).
This product focuses on vibration and temperature aspects of four key standards: SAE J2380, SAE J2464, IEC 62660-2, and UN 38.3. Our Spider systems provide comprehensive solutions for random, sine, and shock vibration testing, along with temperature control.
Based on actual road measurement data, SAE J2380 simulates the effect of driving 100,000 miles on battery packs and modules. The standard requires random vibration profiles applied across three perpendicular axes for durations ranging from 9 minutes to 38 hours each.
This standard evaluates abuse tolerance for cells and battery packs, measuring response for any rechargeable energy storage system (RESS). The tests simulate scenarios contrary to design intent but possible during field use. Includes:
- Thermal shock cycling (70°C to -40°C)
- Shock vibration test (3 positive/negative half-sine shocks in three axes)
Specifies reliability and abuse testing for EV lithium-ion cells. Includes:
- 8-hour random vibration test on each plane
- Mechanical shock test in all six spatial directions
- Temperature test from room temperature to 130°C
- 30 thermal cycles (85°C to -40°C)
Required for lithium-ion battery transport certification. Includes:
- 10 thermal cycles (72°C to -40°C) plus 24-hour ambient storage
- 3-hour swept sine vibration test in three mounting positions
- 18 half-sine shocks (3 positive/negative in three axes)
| Shaker Model | JQA-202-335 / JQA-203-335 |
| Frequency Range (Hz) | 5~3000 |
| Rated sinusoidal force (KN) | 20 |
| Shock force (KN) | 40/60✱ |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mmp-p) | 51/76 |
| Max. load (kg) | 300 |
| Vibration isolation frequency (Hz) | 2.5 |
| Shaking table type | JQ-20 |
| Moving parts weight (kg) | 23 |
| Armature diameter (φmm) | 335 |
| Allowable eccentric moment (N x m) | 490 |
| Outer dimension (W*H*D) (mm) | 1080*990*860 |
| Shaker weight (kg) | 1600 |
| Power amplifier model | PA-20 |
| Max. output power (KVA) | 20 |
| Amplifier Size (W*H*D) | 550*1750*850 |
| Power amplifier Weight (kg) | 410 |
| Power Amplifier working model | Switch |
| System power consumption (KVA) | 40 |
| Cooling method | Forced air cooling |
| Fan model | FJ-3000 |
| Rated flow (m³/min) | 40 |
| Rated wind pressure (kPa) | 3.5/8.8 |
| Fan power (KW) | 7.5 |
We are a large-scale professional manufacturer specializing in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment. With our team of senior R&D engineers and comprehensive after-sales service, we've provided high-quality products and solutions to numerous top enterprises and over 11,000 end users.
Our products are manufactured in strict accordance with ISO9001 standards and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and more. They are widely used in new energy vehicles, aerospace, shipping, electronics, and scientific research institutions.
Product Highlights
