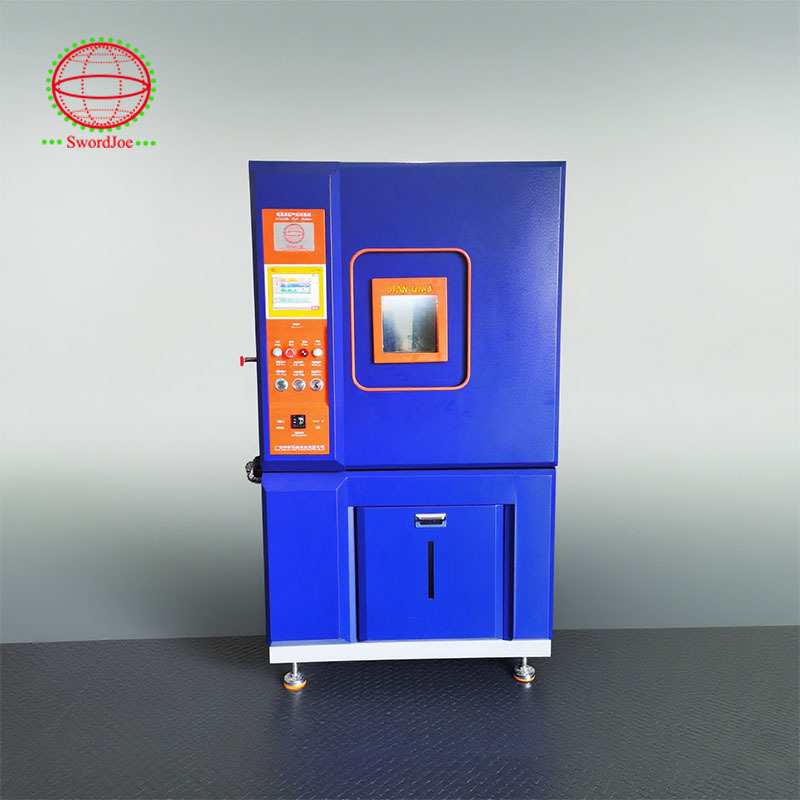

225L Climate Test Chamber For Temperature Humidity And Altitude
Product Details
| Humidity Range: | 20% To 98% RH | Interior Material: | Stainless Steel Plate SUS304 |
|---|---|---|---|
| Power Supply: | AC380V 50Hz | Temp Fluctuation: | ±0.5℃ |
| Air Pressure Range: | Normal Pressure To ~1kPa | Configuration Interface: | USB, WLAN, RS232 Port (APP Function Optional) |
| Temp Cooling Rate: | 0.7℃~1℃/min | Temp Rising Rate: | 0.7℃~1℃/min |
| Highlight |
225L Climate Test Chamber,Temperature Climate Test Chamber,Altitude Climate Test Chamber |
||
Product Description
- Temperature Control: Chambers can create a wide range of temperature conditions, from extremely low to high temperatures, allowing for testing under various thermal stresses.
- Humidity Control: They can regulate humidity levels, simulating both dry and humid environments to assess the impact of moisture on products.
- Altitude Simulation: Some chambers can simulate different altitudes, essential for testing products intended for high-altitude locations or air travel.
- Versatility: Used across industries including electronics, pharmaceuticals, automotive, and aerospace to test a wide array of products.
- Dynamic Condition Simulation: Can be programmed to simulate dynamic changes in temperature, humidity, and altitude, mimicking real-world scenarios and accelerating aging tests.
- Specific Tests: Used for accelerated aging, corrosion testing, and thermal shock testing.
- Compliance: Some chambers meet specific standards like those for lithium-ion battery testing under UN regulations.
- Data Logging: Modern chambers feature advanced control systems for precise parameter regulation and data logging.
- Electronics: Ensuring components withstand temperature fluctuations and humidity exposure
- Pharmaceuticals: Testing drug stability and efficacy under varying conditions
- Aerospace: Simulating extreme temperature and pressure conditions for aircraft components
- Automotive: Assessing durability of vehicle parts in different climates
- Quality Assurance: Ensures products meet performance and safety standards
- Accelerated Testing: Reduces time required to assess product durability
- Cost Savings: Identifies potential failures early, avoiding costly recalls
- Regulatory Compliance: Essential for meeting industry standards and regulations
| Model | JQTA-225 | JQTA-504 | JQTA-1000 | JQTA-1700 | JQTA-3400 |
|---|---|---|---|---|---|
| Inner size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 | 407*210*407 |
| Outer size (cm) | Subject to the actual weight | ||||
| Volume (L) | 225L | 504L | 1000L | 1700L | 3400L |
| Temp.Range | L type: -40℃~150℃ S type: -70℃~150℃ (customized options available) |
||||
| Humidity range | 20% to 98% RH | ||||
| Temp Fluctuation | ±0.5℃ | ||||
| Temp variation in space | No-load at atmospheric pressure ±3℃ (≥100℃), ±2℃ (≤100℃) | ||||
| Temp cooling rate | 0.7℃~1℃/min | ||||
| Temp rising rate | 0.7℃~1℃/min | ||||
| Weight (kg) | Subject to the actual weight | ||||
| Exterior material | Standard 1.5mm Electrolytic plate Electrostatic painting | ||||
| Interior material | Stainless steel plate SUS304 | ||||
| Air pressure range | Normal pressure to ~1kPa | ||||
| Pressure error | PWM control technology cold-end | ||||
| Depressurization rate | ≧40kPa,±2kPa,4kPa~40kPa,±0.5kPa,≦4kPa,±0.1kPa | ||||
| Pressure recovery | Normal pressure to 1kPa≦30min | ||||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | ||||
| Configuration interface | With USB, WLAN, RS232 port, APP function optional | ||||
| Compressor | French Tecumseh or Germany Bitzer brand or Bock | ||||
| Power supply | AC380V @50Hz | ||||
• Low GWP refrigerants of R449a, R448a, and R508B are available
• Performance data refers to an operating room temperature of +26°C, 415 V/50 Hz nominal voltage, without test specimen and without accessories
• Sound Pressure Level: Measured in free-field environments at 1m height and 1m distance from equipment surface
