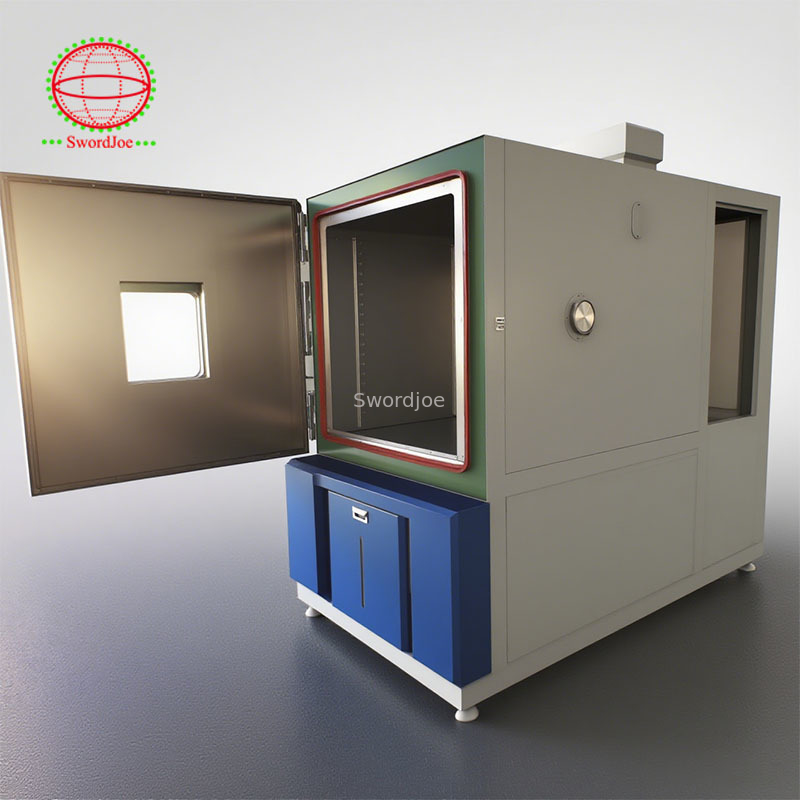

Environmental Altitude Test Chamber For Temperature Humidity Altitude Control
Product Details
| Humidity Range: | 20% To 98% RH | Interior Material: | Stainless Steel Plate SUS304 |
|---|---|---|---|
| Power Supply: | AC380V 50Hz | Temp Fluctuation: | ±0.5℃ |
| Air Pressure Range: | Normal Pressure To ~1kPa | Configuration Interface: | USB, WLAN, RS232 Port (APP Function Optional) |
| Temp Cooling Rate: | 0.7℃~1℃/min | Temp Rising Rate: | 0.7℃~1℃/min |
| Highlight |
Environmental Altitude Test Chamber,Humidity Altitude Test Chamber,Environmental Temperature Altitude Chamber |
||
Product Description
- Temperature Range: -70˚C to +180˚C (Cascade) & -40˚C to +180˚C (Single)
- Altitude Range: AP to 100mBar
- Humidity Range: 10% RH to 98% RH
- Rapid Decompression in controlled environment
- Durable welded pressure chamber for structural strength
- Slide-Out, Adjustable Product Shelf
- Lockable, One-Handed Door Latch
- Durable Silicone Door Gasket
- Two 4″ (100mm) Circular Port Plugs
- TCP/IP and Serial Communication
- Frost-Free Operation
- Non-Settling Rigid Stone Wool Insulation
- Heavy-Duty Swivel Casters with Leveling Pads
- Energy Saving Refrigerants R404A and R23
- Fog-Free Tempered Heated Viewing Window with Interior Light
- Continuous TIG Welding 304 Stainless Steel Interior Liner
- Easy Maintenance with Three-Sided Access to Components
- IEC 60068-2-30, 2005: Environmental testing - Damp heat, cyclic
- IEC 60068-2-78, 2012: Environmental testing - Damp heat, steady state
- IEC 60068-2-1, 2007: Environmental testing - Tests: Cold
- IEC 60068-2-2, 2007: Environmental testing - Tests: Dry heat
- IEC 60068-2-14, 2009: Environmental testing - Change of temperature
- IEC 60068-2-131
- ASTM D6693
- MIL-STD-810H
| Model | JQTA-225 | JQTA-504 | JQTA-1000 | JQTA-1700 | JQTA-3400 |
|---|---|---|---|---|---|
| Inner size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 | 407*210*407 |
| Outer size (cm) | Subject to the actual weight | ||||
| Volume (L) | 225L | 504L | 1000L | 1700L | 3400L |
| Temp.Range | L type: -40℃~150℃ S type: -70℃~150℃ (customizable) |
||||
| Humidity range | 20% to 98% RH | ||||
| Temp Fluctuation | ±0.5℃ | ||||
| Temp variation in space | No-load at atmospheric pressure ±3℃ (≥100℃), ±2℃ (≤100℃) | ||||
| Temp cooling rate | 0.7℃~1℃/min | ||||
| Temp rising rate | 0.7℃~1℃/min | ||||
| Weight (kg) | Subject to the actual weight | ||||
| Exterior material | Standard 1.5mm Electrolytic plate Electrostatic painting | ||||
| Interior material | Stainless steel plate sus304 | ||||
| Air pressure range | Normal pressure to ~1kPa | ||||
| Pressure error | PWM control technology cold-end | ||||
| Depressurization rate | ≧40kPa,±2kPa,4kPa~40kPa,±0.5kPa,≦4kPa,±0.1kPa | ||||
| Pressure recovery | Normal pressure to 1kPa≦30min | ||||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | ||||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | ||||
| Compressor | French Tecumseh or Germany Bitzer brand or Bock | ||||
| Power supply | AC380V @50Hz | ||||
Append request: Low GWP refrigerants of R449a, R448a, and R508B are available.
The performance data refer to an operating room (ambient) temperature of +26°C, 415 V/50 Hz nominal voltage, without test specimen and without accessories.
Sound Pressure Level: Using a calibrated instrument, the weighted sound pressure level was measured in free-field environments at a height of 1 meter from the floor and a distance of 1 meter from the equipment surface.
