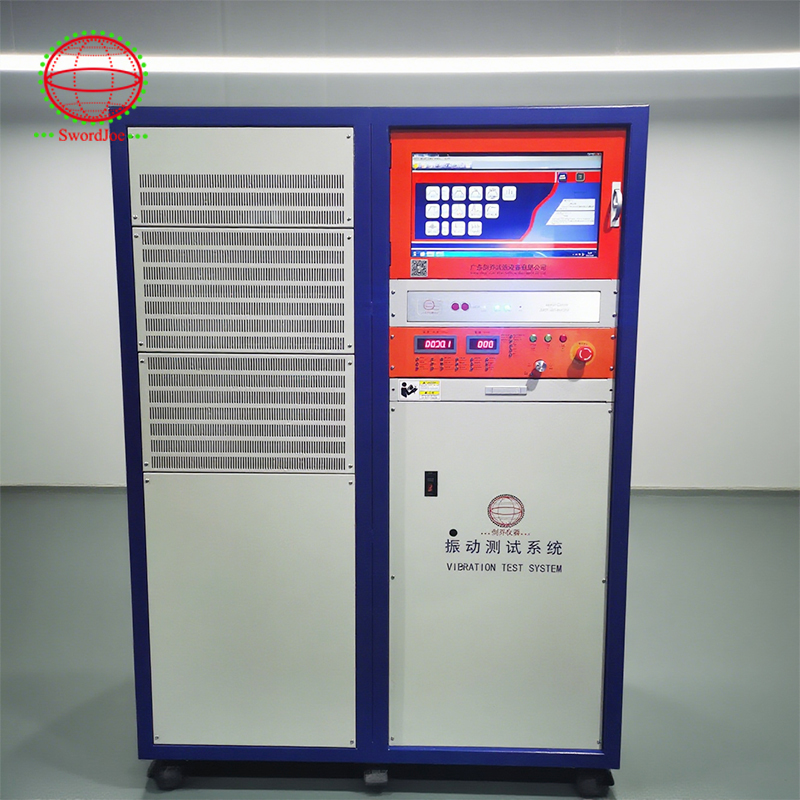

Vibration Test Machine Power Amplifier 4Ohm Optimum load impedance
Product Details
| Power Output: | 8 To 56 KVA Range | Control: | Optional Remote Panel (200m Range) |
|---|---|---|---|
| Interface: | Microprocessor Control With LCD Display | Efficiency: | Over 90% Energy-efficient |
| Power Supply: | 1~ / N / PE 230 V±5% 50/60 Hz, CEE 7/7 | Voltage/Current Mode: | Yes/Yes |
| Highlight |
Power Amplifier 4Ohm,Vibration Test Power Amplifier |
||
Product Description
| Continuous sine output power (RMS, max.) | 500 VA |
| Frequency range (small signal / full power) | DC - 180 kHz / 20 Hz - 25 kHz |
| Voltage/Current mode | Yes/Yes |
| Output voltage (RMS, max.) | 45 V |
| Output current (RMS, max.) | 11.2 A (below 5 Hz) |
| Optimum load impedance | 4 Ohm |
| Signal input voltage (PK at 1 kHz sine for max. power) | 3.5 V |
| Distortion (frequency range 40 Hz to 5 kHz) | < 0.05 % |
| Signal to noise ratio | > 110 dB |
| Dimensions (W×H×D) | 440 × 90 × 290 mm |
| Total mass | 18 kg |
| Power supply | 1~ / N / PE 230 V±5% 50/60 Hz, CEE 7/7 |
| Recommended fuse protection | 16 A slow |
| Max. power consumption at 230 V (full load) | 1200 VA |
| Max. power consumption at 230 V (with vibration test system JQA-502-450) | 350 VA |
- Compatible with all permanent magnet driven shakers on the market
- High signal-to-noise ratio >110 dB
- Low distortion factor < 0.05%
- OLED display panel for clear monitoring
- Comprehensive safety management system monitors temperature, overcurrent, and overtravel
- Available in multiple operating voltage ranges (100V, 120V or 230V factory-set) upon request
- Switchable between current- or voltage mode operation
- Adjustable current limit for precise control
- 180° phasing switch between input and output signal
- Includes 1.5m power cable with connector (custom lengths available)
Built-in interlocks for overload protection, temperature monitoring, and clipping prevention.
