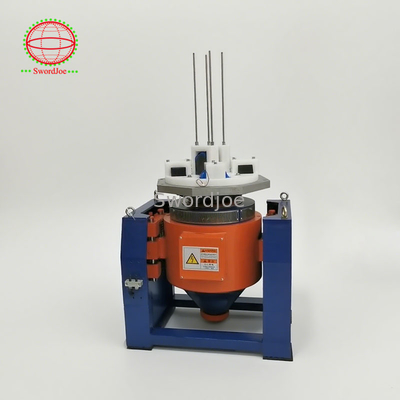

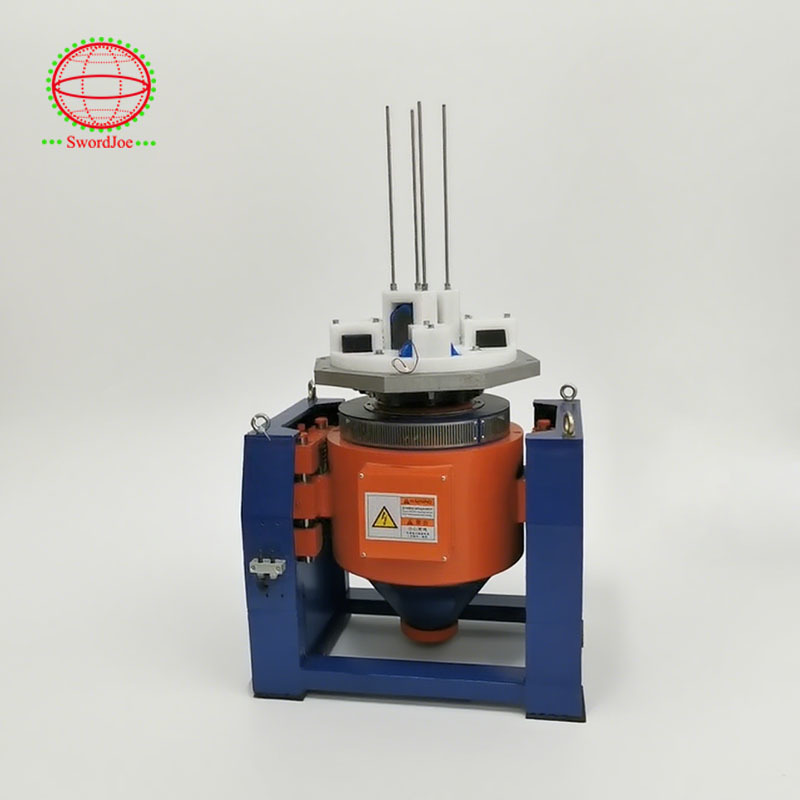

2000Hz Battery Test Equipment UN38.3 EV Battery Vibration Testing
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
Battery Test Equipment UN38.3,2000Hz Battery Test Equipment,UN38.3 EV Battery Vibration Testing |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 20kN /2000kg/4409lbf |
| Random force | 20kN /2000kg/4409lbf |
| Shock force | 98kN /9800kg/9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |
Lithium-ion batteries are the most common battery type used for electric vehicles. During their lifespan, these batteries undergo various vibrations and temperature changes. Several test standards have been developed to simulate long-term environmental effects on these batteries across different size levels (cell, module, pack).
- SAE J2380: Simulates the effect of driving 100,000 miles on battery packs and modules with random vibration profiles.
- SAE J2464: Evaluates abuse tolerance for cells and battery packs, including thermal shock cycling and shock vibration tests.
- IEC 62660-2: Specifies reliability and abuse testing for electric vehicle lithium-ion cells, including random vibration and mechanical shock tests.
- UN 38.3: Simulates vibration loads experienced by lithium batteries during transportation with swept sine tests.
Sine Vibration: Changes according to a sine function over time, used to test resistance to resonance frequency vibration.
Random Vibration: Irregular time-domain waveform that better reflects real-world vibration conditions during transportation and use.
Mixed-mode Vibration: Superposition of sine and random vibrations for comprehensive testing scenarios.
| Shaker Model | JQA-202-335 / JQA-203-335 |
|---|---|
| Frequency Range (Hz) | 5~3000 |
| Rated sinusoidal force (KN) | 20 |
| Shock force (KN) | 40/60✱ |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mmp-p) | 51/76 |
| Max. load (kg) | 300 |
| Vibration isolation frequency (Hz) | 2.5 |
| Shaking table type | JQ-20 |
Guangdong Jianqiao Testing Equipment Co., Ltd is a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment.
Our products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB and are widely used in new energy vehicles, aerospace, shipping, electronics industry and other industries.
