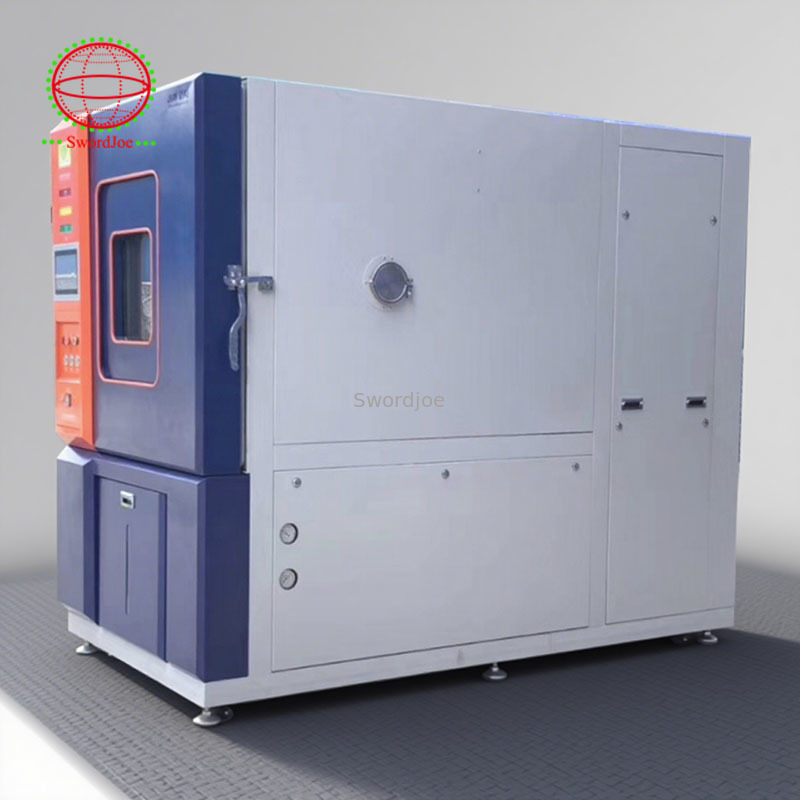

Precision Temperature Humidity Altitude Simulation Testing Chamber For Product Durability
Product Details
| Humidity Range: | 20% To 98% RH | Interior Material: | Stainless Steel Plate SUS304 |
|---|---|---|---|
| Power Supply: | AC380V 50Hz | Temp Fluctuation: | ±0.5℃ |
| Air Pressure Range: | Normal Pressure To ~1kPa | Configuration Interface: | USB, WLAN, RS232 Port (APP Function Optional) |
| Temp Cooling Rate: | 0.7℃~1℃/min | Temp Rising Rate: | 0.7℃~1℃/min |
| Highlight |
Precision Altitude Simulation Testing,Altitude Simulation Testing Chamber |
||
Product Description
Our precision temperature, humidity, and altitude chambers provide accurate environmental simulations for product durability testing. These chambers help ensure your products meet rigorous industry standards through comprehensive testing capabilities.
- Simulates altitude up to 100,000 feet (8.2 Torr) standard, with optional extension to 175,000 feet (.37 Torr)
- Optional extended ranges for sea level testing at high-altitude locations
- Compliant with multiple test standards including IEC and Mil-Stds
- Touch screen controller with intuitive interface
- Advanced connectivity options including Ethernet monitoring and serial communications
- Humidity water filtration system for consistent performance
- Robust vacuum system for reliable operation
| Model | JQTA-225 | JQTA-504 | JQTA-1000 | JQTA-1700 | JQTA-3400 |
|---|---|---|---|---|---|
| Inner Size (cm) | 50×75×65 | 80×70×90 | 100×100×100 | 195×315×516 | 407×210×407 |
| Volume (L) | 225L | 504L | 1000L | 1700L | 3400L |
| Temperature Range | L type: -40℃ to 150℃ S type: -70℃ to 150℃ (customizable) |
||||
| Humidity Range | 20% to 98% RH | ||||
| Temperature Fluctuation | ±0.5℃ | ||||
| Temperature Variation in Space | No-load at atmospheric pressure ±3℃ (≥100℃), ±2℃ (≤100℃) | ||||
| Cooling/Rising Rate | 0.7℃ to 1℃/min | ||||
| Exterior Material | 1.5mm Electrolytic plate with Electrostatic painting | ||||
| Interior Material | Stainless steel plate SUS304 | ||||
- Controller: TW DELTA PLC with 7" or 10" color touch screen
- Configuration interface: USB, WLAN, RS232 port (APP function optional)
- Compressor options: French Tecumseh, Germany Bitzer, or Bock brand
- Power supply: AC380V @50Hz
- Low GWP refrigerants available (R449a, R448a, R508B)
- IEC 60068-2-13
- MIL-STD-202
- MIL-STD-810
- MIL-STD-883
Performance data refers to an operating room temperature of +26°C, 415 V/50 Hz nominal voltage, without test specimen and without accessories.
Sound Pressure Level: Measured in free-field environments at 1 meter height from floor and 1 meter distance from equipment surface.
