Sand And Dust Chamber Testing For Talcum Powder Portland Cement Arizona Test Dust
Product Details
| Studio Temperature Range: | RT~80℃ | Test Dust: | Talcum Powder, Portland Cement, Arizona Test Dust |
|---|---|---|---|
| Name: | Sand & Dust Chambers | IP: | IP5X And IP6X |
| Highlight |
Portland Cement Sand And Dust Chamber,Talcum Powder Sand And Dust Chamber |
||
Product Description
Reliable Sand and Dust Testing Chamber for Aerospace, Automotive, and Electronics

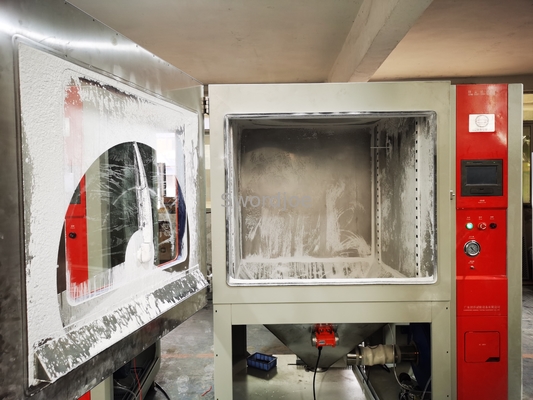

Sand & Dust chambers provide an environment to test the exposure of automotive and electronic components to concentrated levels of dust in order to validate product seal integrity.
Pulses of compressed air are blown through a manifold located in the bottom of a collection trough, forcing dust up and over the product. Air pulses are time-programmed for “on” and “off” cycles. Concentration of dust can be easily varied by changing the air pressure and the amount of the blowing time. All dust chambers are designed to meet common test methods such as SAE J575, subparagraph “G”, J.I.S. D-0207-1977, and ASTM C-150-77. Approved dust types are Arizona Dust, Portland Cement Dust, and 213 Silica Sand.
Feature
- Two Digital Timers
- Coalescing & Particulate Filters
- Exhaust with Cleanable Filter
- 16 Gauge Stainless Steel Interior
- Full-Opening Front Loading Door
- 3” Thick Foam Insulation
- Casters
Optional
- Access Ports
- Viewing Window
- Shelving
- Test Fixture Support Rails
- Self-Contained Air Compressor
- Interior Light with Switch
|
IP5X,IP6X |
|||
|
Model |
JQD-800 |
JQD-1000 |
JQD-1800 |
|
(mm)Internal dimensions |
800*800*800(W·H·D) |
1000*1000*1000(W·H·D) |
1000*1500*1200(W·H·D) |
|
Studio temperature range |
RT~80℃ |
RT~80℃ |
RT~80℃ |
|
Test dust |
Talcum powder ,Portland cement , Arizona test dust |
||
