Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions

1
MOQ
Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 50kN /5000kg
Random Force: 50kN /5000kg
Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 800KG
Moving Parts Mass: 20KG
Armature Diameter: 335mm
Highlight:

vibration testing equipment for product development

,

vibration test table with accurate data

,

real-world vibration simulation equipment
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-202-335
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description

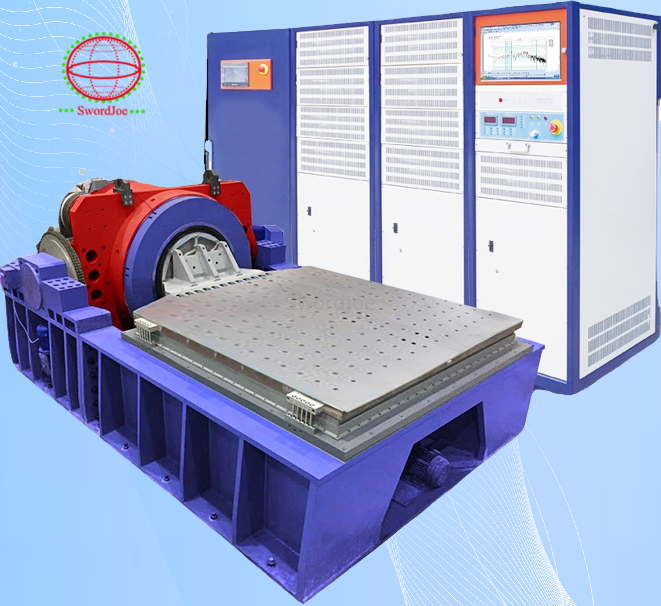

Vibration Testing Equipment

Specially designed to simulate real-world vibration conditions, providing accurate data for product development.

Key Specifications
Attribute Value
Frequency 2000Hz
Sine force 50kN /5000kg
Random force 50kN /5000kg
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 800KG
Moving parts mass 20KG
Armature diameter 335mm
Product Features
Altitude Simulation Capability

The Dual Vibration Test System operates in conjunction with an altitude simulation chamber, enabling testing of large payloads under near-vacuum conditions.

  • Special vacuum compensation extender system prevents armature displacement
  • Precision balancing control system maintains armature position
  • Sealed floor connection ensures consistent vacuum conditions
  • Multiple Amplifier Control (MAC) enables dual configuration operation
Technical Specifications
Parameter Value
Shaker Model JQA-502-450 / JQA-503-450
Frequency Range (Hz) 5~2700
Sine force (KN) 50
Shock force (KN) 100/150
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76
Max. load (kg) 800
Vibration isolation frequency(Hz) 2.5
Moving parts weight (kg) 50
Armature diameter (φmm) 450
Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 0 Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 1 Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 2 Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 3
About Guangdong Jianqiao Testing Equipment Co., Ltd

A large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With a strong R&D department, professional production team, and comprehensive after-sales service network, we serve major enterprises and end users nationwide.

Our products are manufactured in strict accordance with ISO9001 standards and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB. Widely used in new energy vehicles, aerospace, shipping, electronics and other industries, our solutions serve research institutions, quality inspection centers and academic fields.

Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 4 Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 5 Accurate Vibration Testing Equipment To Simulate Real World Vibration Conditions 6
