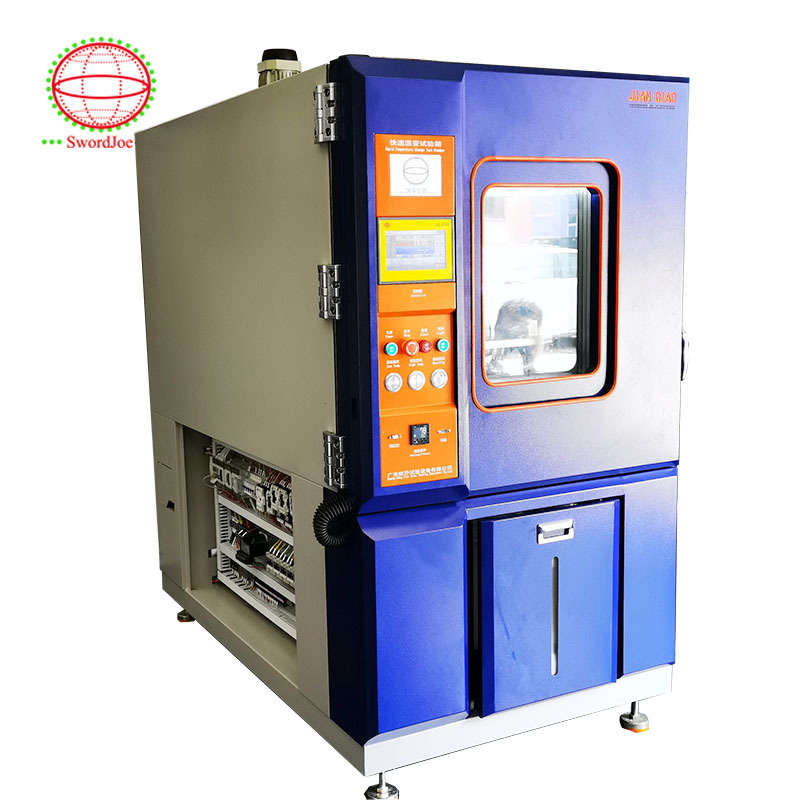

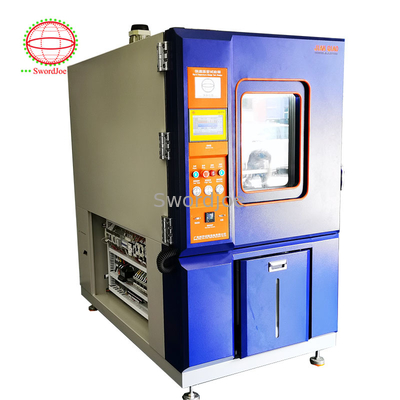

Rapid Temperature Cycling Test Chamber For Electronic Components IEC 60068-2-14
Product Details
| Heating System: | Stainless Steel Tubular Heater | Cooling System: | Mechanical Refrigeration |
|---|---|---|---|
| Warranty: | 1 Year | Refrigeration Compressor: | Hermetic Compressor(Tecumseh) |
| Humidity Uniformity: | ±2.0％RH | Fan: | Centrifugal Blower |
| Humidifier: | Steam Humidifier | Humidity Control Range: | 20.0%RH～95.0%RH |
| Evaporator: | Fin - And - Tube Heat Exchanger | Chamber Size: | 1000mm X 1000mm X 1000mm |
| Humidity Control: | 10% ~95%RH | ||
| Highlight |
Rapid Temperature Cycling Test Chamber,Temperature Cycling Test Chamber IEC 60068-2-14,Rapid Temperature Cycling Test |
||
Product Description
| Attribute | Value |
|---|---|
| Heating System | Stainless Steel Tubular Heater |
| Cooling System | Mechanical Refrigeration |
| Warranty | 1 Year |
| Refrigeration Compressor | Hermetic compressor (Tecumseh) |
| Humidity Uniformity | ±2.0％RH |
| Fan | Centrifugal blower |
| Humidifier | Steam humidifier |
| Humidity Control Range | 20.0%RH～95.0%RH |
| Evaporator | Fin-and-Tube Heat Exchanger |
| Chamber Size | 1000mm x 1000mm x 1000mm |
| Humidity Control | 10% ~95%RH |
The Rapid Temperature Cycling Chamber is a specialized environmental testing device designed to simulate rapid temperature fluctuations that electronic components and materials might experience in real-world conditions. This chamber is essential for evaluating product reliability and performance under extreme temperature variations.
- Rapid Temperature Changes: Quickly transitions between high and low temperatures to simulate thermal stresses
- Reliability Testing: Assesses product durability and identifies potential failure points under extreme conditions
- Quality Control: Screens for defects that only appear under rapid temperature changes
- Environmental Simulation: Replicates temperature changes during transportation, storage, or operation
- Industry Applications: Electronics, automotive, aerospace, and materials science
- Temperature Range: Customizable based on testing requirements
- Temperature Uniformity: High consistency throughout chamber
- Control Accuracy: Precise temperature maintenance
- Rate of Change: Rapid transition between temperature extremes
- Standard Compliance: Meets IEC 60068-2-14 requirements
- Compressors: High-performance Tecumseh refrigeration system
- Insulation: Double-layer insulated doors for temperature stability
- Humidity Control: External water connection for precise humidification
- Control System: LCD display with programmable temperature profiles
- Mobility: Equipped with casters for easy positioning
- Remote Monitoring: Optional web-based interface available
Temperature change rate: 15°C per minute
