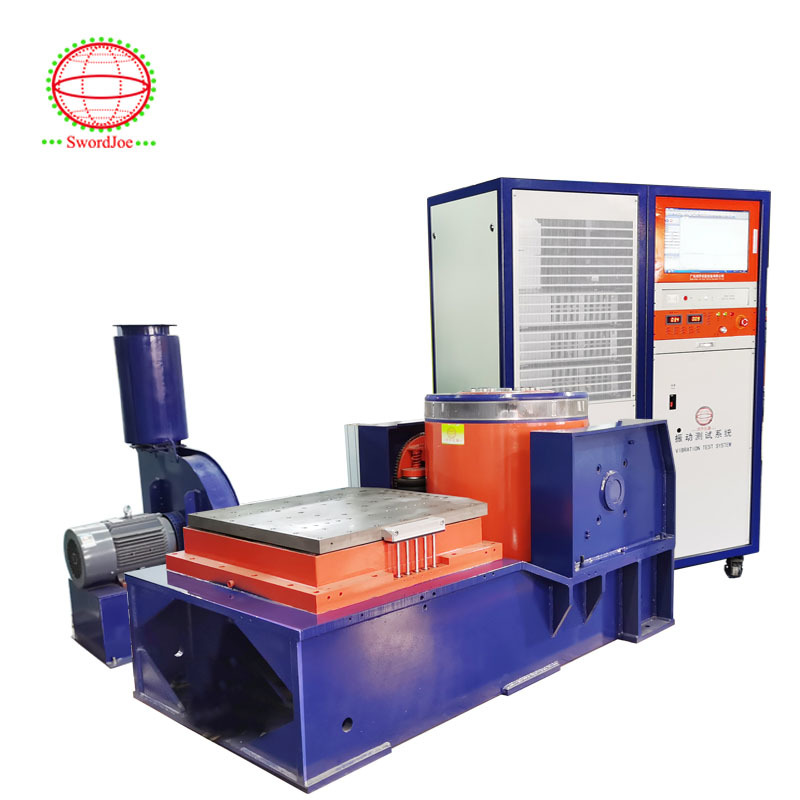

Electromagnetic Vibration Test Machine Mechanical Shock And Vibration Test Equipment

Ensure the integrity of your automotive products using Vibration Analysis, Mechanical Shock and Vibration Testing.

Electrodynamic (ED) shakers can be used for Accelerated Stress Testing (AST), Highly Accelerated Life Test (HALT) capabilities can be put into practice to arm products with ongoing reliability, and Failure Mode Verification Test (FMVT®) capabilities use an Intertek-patented resonance impact vibration pod in applications to uncover real-world failure modes to assist with reliability growth.

Additional capabilities include shock testing, vibration analysis, simulate environment chambers, data acquisition, custom test fixture controls and software, helping you fill all your automotive testing and standard certification needs at one stop.

• GMW 3172
• GMW 3431
• GMW 8287
• GMW 15570
• GMW 3191
• GM 9123P
• Ford CETP 00.00-L-412
• Ford WCR 00.00EA-D11
• Chrysler PF-8982
• Toyota TSC7000G
• Nissan Design Specification 25100NDS00 [11]
• Hyundai/Kia Motor ES95400-10

• Vibration Testing
• Resonant searches and dwells
• Custom fixture design and fabrication
• Fixture resonance evaluation
• Combined vibration and environmental
• Electrodynamic (ED) shakers for Accelerated Stress Testing (AST)
• Strain monitoring during vibration
• Vibration Analysis
• Mechanical Shock Capabilities
• Drop Shock Capabilities
• Vibration/Mechanical Shock Custom Capabilities

Design:

• Custom test fixture design (Solid Works)
• Accept client data in native Solid Works, Parasolid, IGS or STP formats
• Finite Element Analysis (FEA) using Algor as required

Fabrication:

• Custom test fixture fabrication
• Machining
• Welding aluminum, steel, MIG, TIG
• Easy access to CNC machining, laser, water jet, wire EDM cutting and powder coat painting

Test Sample Attachment:

• Vibration adapter plates utilize 3/8"-16 holes on 2" centers
• Plate sizes range from 12" x 12" up to 72" x 72", with 24" x 24" being the most common

• Ramp/soak programmable
• Table: Up to 4' x 4' surface
• Height: Up to 35"
• Temperature range: -80°C to 180°C typical, -100°C to 200°C intermittent
• Thermal ramp rate: Up to 50°C/minute
• Vibration type: Pneumatic air hammer quasi-random 6-axis
• Acceleration: 50G's rms below 3kHz, 70G's rms below 10kHz
• Frequency range: 100 - 10,000Hz

FMVT® is a process that can be performed in many ways, frequently using an Intertek patented resonance impact vibration pod in applications to uncover real world failure modes to assist with reliability growth.

• Ramp/soak programmable
• Chamber dimensions: 71" x 54" x 47" high
• Temperature range: -80°C to 180°C typical
• Thermal ramp rate: Up to 30°C/minute
• Acceleration: 50Gpk
• Frequency range: 1 - 10,000Hz

Walk-in Chambers

• Simulated environmental chambers
• Ramp/soak programmable
• Many sizes up to 20' x 9' x 9'
• Temperature range: -80°C to 177°C
• Humidity range: <10% to >95%RH
• Mechanical refrigeration and/or liquid nitrogen cooling
• Steam or aerated water mist humidity generation
• Mechanical refrigeration and / or desiccant dryer dehumidification

Infrared (IR) Sunload Heat Lamp Panel

• Proportionally regulated by surface temperature, black body or solar heat watt density
• Size: (2) 4' x 4' panels with 42 bulbs
• Power: 10,500 watts each
• Applications: Solar radiation simulation, elevated surface temperature for interior / exterior automotive assemblies (non-actinic effects)
