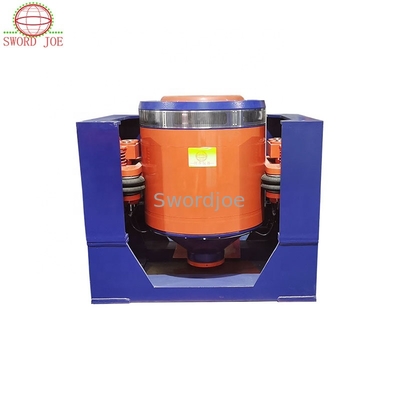

ISTA1A/2A/3A/6A Package Vibration Test Table for Transport Simulation of Package Transport Vibration
Product Details
| Frequency: | 2000Hz | Sine Force: | 40kN /4000kg/674.43lbf |
|---|---|---|---|
| Random Force: | 40kN /4000kg/674.43lbf | Shock Force: | 80kN /8000kg/1348.86lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 500KG |
| Moving Parts Mass: | 40KG | Armature Diameter: | 440mm |
| Highlight |
ista1a vibration test table,ista1a hydraulic vibration table,2000hz vibration test table |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 40kN / 4000kg / 674.43lbf |
| Random force | 40kN / 4000kg / 674.43lbf |
| Shock force | 80kN / 8000kg / 1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 500KG |
| Moving parts mass | 40KG |
| Armature diameter | 440mm |
ISTA (International Safe Transit Association) tests 1A, 2A, 3A, and 6A evaluate packaged products' ability to withstand transit and handling conditions. These tests simulate shipping hazards including vibration, drops, and compression.
- ISTA 1A: Basic integrity test for package strength, without real-world simulation
- ISTA 2A: Partial simulation test combining elements of 1A and 3A series
- ISTA 3A: General simulation test replicating common transport conditions
- ISTA 6A: Specialized test for Amazon shipments
Vibration testing is a critical component of all ISTA procedures, simulating the shaking and jarring experienced during transportation to assess packaging protection effectiveness.
| Parameter | Value |
|---|---|
| Frequency Range (Hz) | 5~2700 |
| Rated sinusoidal force (KN) | 40 |
| Shock force (KN) | 80/120* |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mm p-p) | 51/76 |
| Vibration isolation frequency (Hz) | 2.5 |
| Allowable eccentric moment (N x m) | 490 |
| Component | Specification |
|---|---|
| Shaker Model | JQA-402-44/0JQA-403-440 |
| Shaking table type | JQ-40 |
| Power amplifier model | PA-30 |
| Max. output power (KVA) | 30 |
| Cooling method | Forced air cooling |
| Fan model | FJ-5000 |
We are a professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers, and battery testing equipment. With over 20 years of experience, we provide high-quality products and comprehensive solutions to top enterprises and end users worldwide.
Our products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, and GB/T, serving industries such as new energy vehicles, aerospace, shipping, and electronics.
