Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts

1
MOQ
Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 3kN /300kg/674.43lbf
Random Force: 3kN /300kg/674.43lbf
Shock Force: 6kN /600kg/1348.86lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 120KG
Moving Parts Mass: 3KG
Armature Diameter: 150mm
Highlight:

Vertical Vibration Test Equipment

,

Electro Dynamic Vibration Test Equipment

,

electric Vertical Vibration Test
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-031-150
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description
High Quality Electro-Dynamic Vertical Vibration Test Equipment for MIL-STD-202G Electrical Component Parts Vibration Test
Product Specifications
Attribute Value
Frequency 2000Hz
Sine force 3kN /300kg/674.43lbf
Random force 3kN /300kg/674.43lbf
Shock force 6kN /600kg/1348.86lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 120KG
Moving parts mass 3KG
Armature diameter 150mm
Product Overview

Air-cooled series-electric vibration test system features wide frequency range, excellent performance indicators, high reliability, compact footprint, easy mobility, and simple operation. Available in various models with excitation force ranging from 1kN to 70kN and maximum load capacity from 70kg to 1000kg.

Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts 0
Key Features
  • Forced air cooling system
  • Random and sinusoidal excitation force 1:1 ratio
  • Displacement peak-to-peak value up to 100mm
  • Trunnion airbag with excellent isolation effect
  • Double magnetic circuit design with low magnetic flux leakage and uniform magnetic field
  • Sinusoidal excitation force range: 1kN ~ 70kN
  • Double sinusoidal impact force (three times more than 2 tons)
  • Light dynamic coil with optimized design and strong vibration resistance
  • Center airbag with strong carrying capacity and excellent low frequency performance
  • Configurable horizontal slide
  • High-efficiency cooling fan with low noise operation
  • Frequency range starting from 1Hz
System Performance

High dynamic winding reliability: Enhanced structure and technology significantly improve vibration resistance in high thrust, high acceleration, impact, and high temperature environments.

Cooling fan: Unique air duct design provides excellent cooling with minimal noise.

Horizontal and vertical testing: Electric vibration table with horizontal slide allows for simple switching between test orientations.

IGBT module: Amplifiers feature reliable MOSFET and IGBT modules for maximum stability.

Technical Specifications
Shaker Model JQA-402-44/0JQA-403-440
Frequency Range (Hz) 5~2700
Rated sinusoidal force (KN) 40
Shock force (KN) 80/120*
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. displacement(mmp-p) 51/76
Max. load (kg) 500
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-40
Moving parts weight (kg) 40
Armature diameter (φmm) 440
Allowable eccentric moment(N x m) 490
Product Images

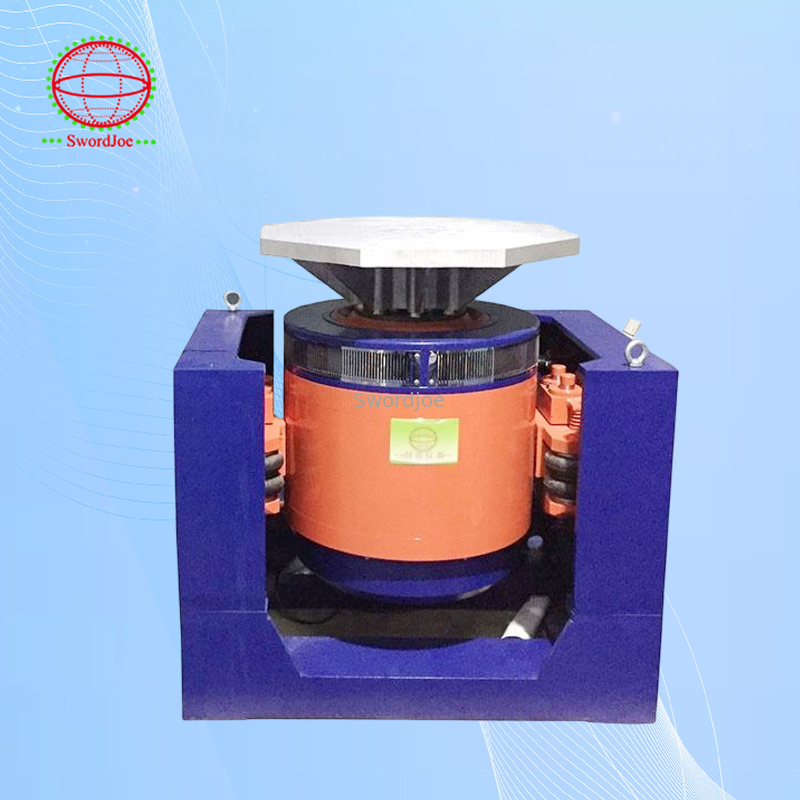

Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts 1 Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts 2 Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts 3 Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts 4 Electro Dynamic Electric Vertical Vibration Test Equipment For Electrical Component Parts 5
Compliance Standards
  • IEC62660-2 (Secondary lithium-ion cells for electric road vehicles)
  • IEC 62281 (Safety during transport)
  • IEC 62133-2:2017 (Safety requirements for portable sealed secondary cells)
  • IEC60068-2-64 (Environmental testing - Vibration, broadband random)
  • IEC60068-2-6 (Environmental testing - Vibration, sinusoidal)
  • IEC60086-4 (Safety of lithium batteries)
  • UN 38.3.4.3 (Transport of dangerous goods)
  • UL-1642 (Standard for safety lithium batteries)
  • ISO16750-2 (Road vehicles environmental testing)
  • ISTA6-AMAZON.COM standards
  • RTCA-DO-160G (Airborne equipment vibration testing)
  • SAE J1211 (Automotive electrical/electronic modules validation)
