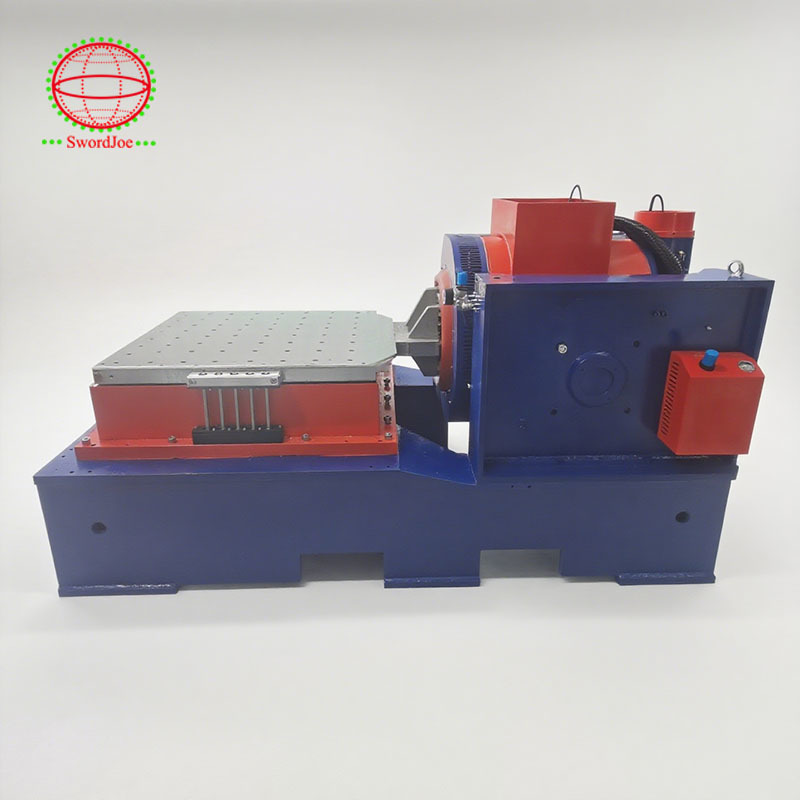

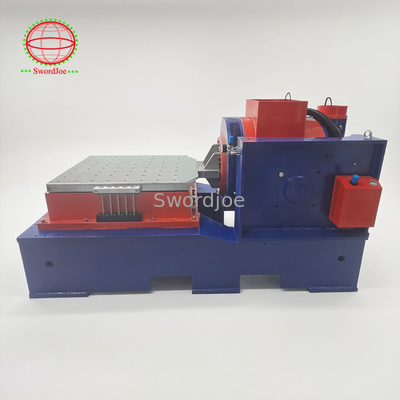

Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency

1
MOQ
Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 50kN /5000kg
Random Force: 50kN /5000kg
Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 800KG
Moving Parts Mass: 20KG
Armature Diameter: 335mm
Highlight:

customizable vibration test table

,

Vibration Test Table 2000Hz
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-202-335
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description
Customizable Vibration Tables
Tailor vibration amplitude and frequency to suit specific testing environments and requirements.
Key Specifications
Attribute Value
Frequency 2000Hz
Sine force 50kN /5000kg
Random force 50kN /5000kg
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 800KG
Moving parts mass 20KG
Armature diameter 335mm
Product Features
  • Vibration testing solutions for modal, structural and component testing
  • Wide frequency range from DC up to 6,300 Hz
  • Peak force ratings from 667 N to 5,115 N
  • Lightweight, high-performance armature design (110 mm to 180 mm in diameter) delivers excellent acceleration and velocity performance
  • Vertical or horizontal operation
  • Optional software allows system tests to be controlled remotely using a PC
  • Compatible with COMETUSB and LASERUSB vibration controllers
  • Ease of use and power saving features reduce operating costs
  • Proven reliability maximizes system availability, combined with global servicing and support
Total System Solutions
Combining a wide frequency range, high force and high acceleration, this range of air-cooled shaker solutions delivers excellent all-round testing capabilities. A number of optional extras enable the system to be tailored to suit most applications. Trunnion mounting and slip tables enable both vertical and horizontal testing, and the addition of a thermal barrier allows for improved product testing under diverse environmental conditions.
Technical Specifications
Shaker Model JQA-502-450 / JQA-503-450
Frequency Range (Hz) 5~2700
Sine force (KN) 50
Shock force (KN) 100/150
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76
Max. load (kg) 800
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-50
Moving parts weight (kg) 50
Armature diameter (φmm) 450
Allowable eccentric moment(Nxm) 980
Outer dimension (W*H*D) 1650*1180*1060
Shaker weight (kg) 4500
Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 0 Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 1 Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 2 Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 3
About Guangdong Jianqiao Testing Equipment Co., Ltd
We are a large scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With our advantage in technical expertise, professional production and sales team, and perfect after-service department, we have built a comprehensive marketing network across major cities in China.
In the past 20 years, Jianqiao has provided high quality products and one-stop solutions for dozens of top 100 enterprises and 11,289 end users. Our products are manufactured in strict accordance with ISO9001 and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and others.
Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other sectors, serving scientific research units, quality inspection institutions and academic fields.
Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 4 Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 5 Customizable Vibration Test Table 2000Hz Tailor Vibration Amplitude And Frequency 6
