| Brand Name: | Jianqiao |
| Model Number: | JQA-031-150 |
| MOQ: | 1 |
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 3kN /300kg/674.43lbf |
| Random force | 3kN /300kg/674.43lbf |
| Shock force | 6kN /600kg/1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 120KG |
| Moving parts mass | 3KG |
| Armature diameter | 150mm |

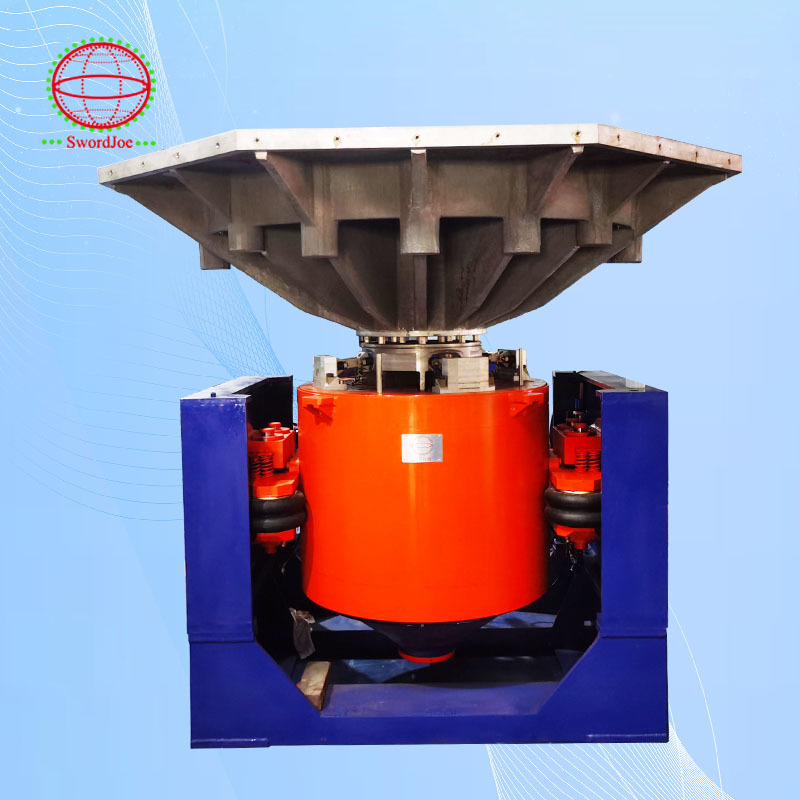

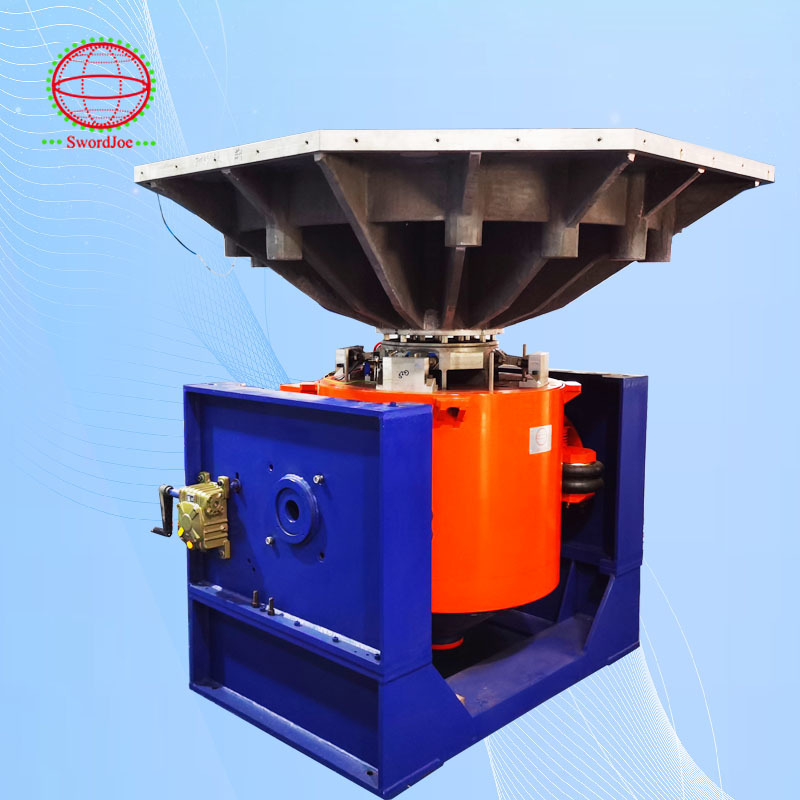

The air-cooled electrodynamic shaker vibration test system offers wide frequency range, excellent performance indicators, high reliability, compact footprint, easy mobility, and simple operation. Available in various models with excitation forces ranging from 1kN to 70kN and maximum loads from 70kg to 1000kg.
High dynamic winding reliability: Enhanced moving coil winding structure provides superior vibration resistance in high thrust, high acceleration, impact, and high temperature environments.
Efficient cooling: Unique air duct design ensures effective cooling with minimal noise.

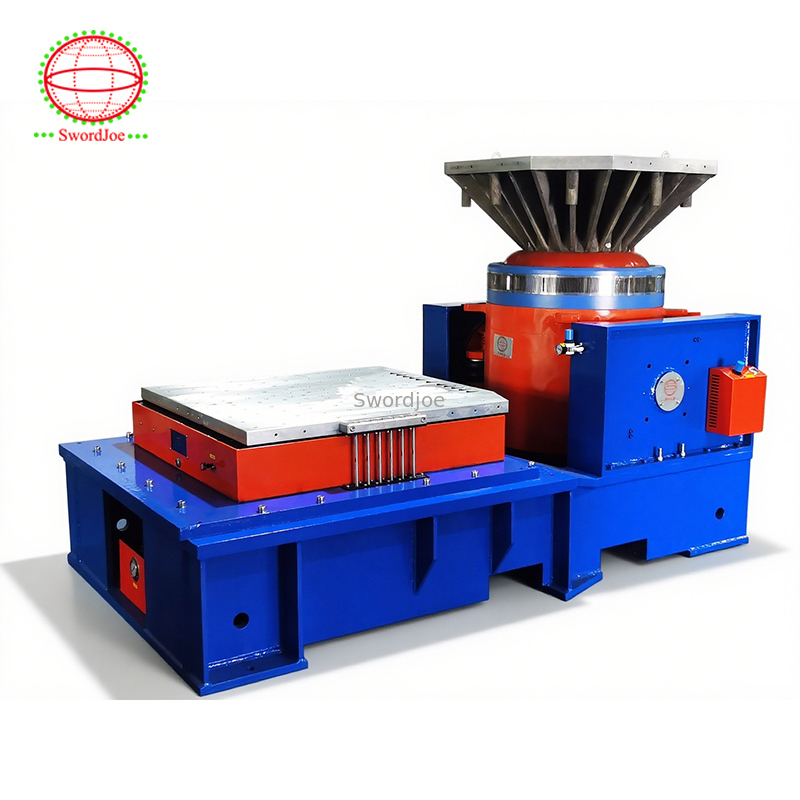

Versatile testing: Horizontal slide option enables both horizontal and vertical testing with simple switching.
Reliable power: Amplifiers feature robust MOSFET and IGBT modules for high stability.
| Shaker Model | JQA-402-44/0JQA-403-440 |
|---|---|
| Frequency Range (Hz) | 5~2700 |
| Rated sinusoidal force (KN) | 40 |
| Shock force (KN) | 80/120* |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement(mmp-p) | 51/76 |
| Max. load (kg) | 500 |
| Vibration isolation frequency(Hz) | 2.5 |
| Shaking table type | JQ-40 |
| Moving parts weight (kg) | 40 |
| Armature diameter (φmm) | 440 |
As a large-scale professional manufacturer specializing in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment, we serve numerous top enterprises and end users worldwide. Our products comply with ISO9001 and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, and GB/T.
Applications span new energy vehicles, aerospace, shipping, electronics industry, and scientific research institutions. With over 20 years of experience, we provide high-quality products and comprehensive testing solutions.
