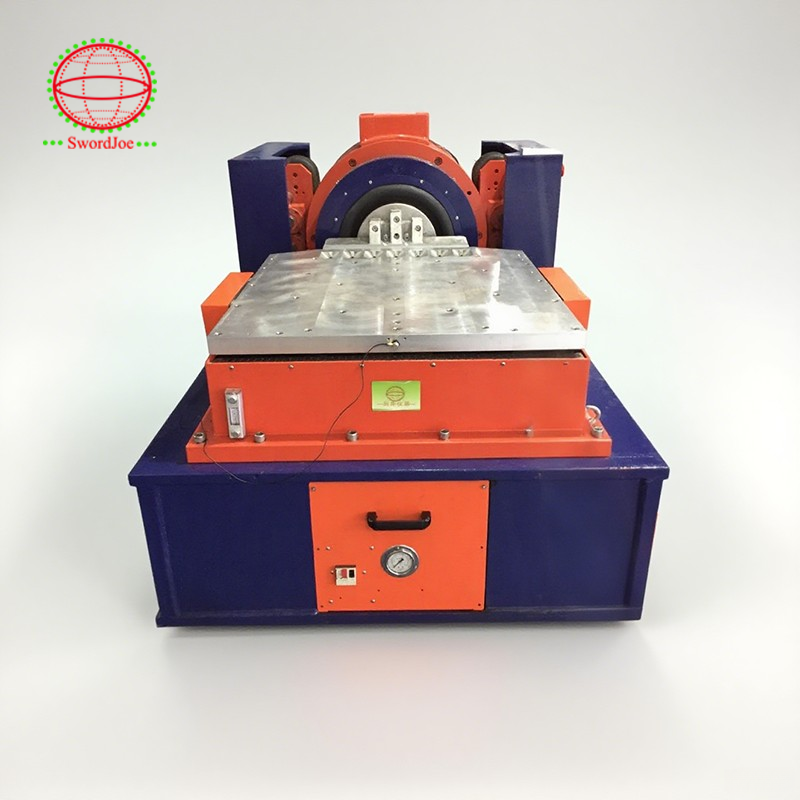

Horizontal Vibration Testing Slip Table For Automotive Aerospace Electronics and Packaging
Product Details
| Features: | Multi-Axis Testing | Work Environment: | Temperature Range5~35℃, Humidity Range ≤90&(not Condensing) |
|---|---|---|---|
| Structure Material: | Steel Structure | Model: | JV Series |
| Slip Table Types: | Hydrostatic Bearing / Mechanical Bearing / Mono-base | Applications: | Automotive, Aerospace, Electronics And Packaging |
| Highlight |
Horizontal Vibration Testing Slip Table,Automotive Vibration Testing Slip Table |
||
Product Description
- Horizontal Vibration Testing: Enables vibration testing of specimens in the horizontal plane, essential for simulating conditions like those experienced by vehicles or aircraft.
- Large and Heavy Payloads: Designed for testing components that might exceed the capacity of standard vertical shaker setups.
- Multi-Axis Testing: Can be integrated with shakers that rotate to facilitate comprehensive multi-axis vibration testing.
- Versatility: Suitable for various vibration testing types including sine, random, and shock testing.
- Slip Plate: Flat plate, often made of magnesium for optimal strength-to-weight ratio.
- Bearing Surface: Typically a granite block with lubricant or mechanical bearing system.
- Shaker Attachment: Connects to the armature of an electrodynamic shaker to induce vibrations.
- Guidance System: Some models incorporate hydrostatic bearings to minimize friction and ensure smooth movement.
- Hydrostatic Bearing Slip Tables: Use pressurized oil film for low-friction, high-stability operation.
- Mechanical Bearing Slip Tables: Utilize linear motion guides for movement.
- Mono-base Slip Tables: Integrated shaker and slip table unit for easy switching between vertical and horizontal testing.
- Automotive: Testing vehicle components for durability and reliability.
- Aerospace: Evaluating aircraft parts and systems performance.
- Electronics and Packaging: Assessing product resilience to vibration during shipping and use.
| Model | JV-03KN | JV-06KN | JV-10KN | JV-20KN | JV-30KN | JV-40KN |
|---|---|---|---|---|---|---|
| SL0303(300x300) | 30 | |||||
| SL0404(400x400) | 30 | 30 | ||||
| SL0505(500x500) | 30 | 30 | 40 | 40 | 45 | 45 |
| SL0606(600x600) | 40 | 40 | 40 | 40 | 45 | 45 |
| SL0707(700x700) | 45 | 45 | 45 | 45 | 45 | 45 |
- The equivalent mass of the moving parts includes the water platform, joint, V-rail and drive rod (excluding moving coil mass).
- Frequency limit is 2000Hz.
- The equivalent mass values represent conventional designs; special requirements may necessitate recalculation.
Product Highlights
Slip Table for Vibration Shaker System A slip table in vibration testing is a specialized system used with an electrodynamic shaker to test specimens in the horizontal axis, particularly for heavy or oversized loads. It consists of a plate that moves on a bearing surface, allowing the shaker to ...
