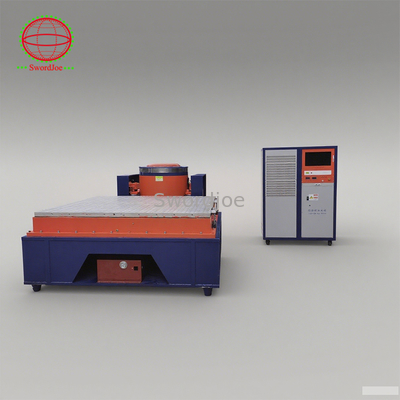

Laboratory Vibration Shaker Slip Table Temperature Range 5 - 35℃

Brand Name:	JIANQIAO
Model Number:	SL-2020
MOQ:	1
Delivery Time:	5 WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

Multi-Axis Testing

Work Environment:

Temperature Range 5~35℃, Humidity Range ≤90&(not Condensing)

Structure Material:

Steel Structure

Model:

JV Series

Slip Table Types:

Hydrostatic Bearing / Mechanical Bearing / Mono-base

Applications:

Automotive, Aerospace, Electronics And Packaging

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

Vibration Shaker Slip Table

Laboratory Shaker Slip Table

Product Description

Slip Table for Vibration Shaker System

Slip tables provide the optimal test platform for horizontal vibration testing with any shaker combination. Two design options are available:

Unibase concept: Features a structural steel body to precisely align the shaker and table on a rigid platform
Standalone design: Compatible with any vertical shaker from JIANQIAO manufacturers

All slip tables incorporate precision-ground natural granite slabs and a selection of guidance bearings to accommodate different applications and budgets. The rotation system enables single-person operation for coupling with the shaker, while mechanical stops ensure consistent alignment.

Specifications

Available in sizes ranging from 12 in (300 mm) square for small shakers to 8 feet (2.5 meters) square for larger systems. Various restraining bearing options available to meet specific application requirements.

Technical Data

Model	JV-03KN	JV-06KN	JV-10KN	JV-20KN	JV-30KN	JV-40KN
SL0303 (300x300)	30
Thickness/Frequency	11.5/8.5
SL0404 (400x400)	30	30
Thickness/Frequency	17.5/12	20/15
SL0505 (500x500)	30	30	40	40	45	45
Thickness/Frequency	25.5/17.5	28/20.5	38/27.5	42/31.5	56.5/43	61.5/48

Operating Conditions

Temperature range: 5~35℃
Humidity range: ≤90% (non-condensing)

Notes

1. The equivalent mass of moving parts includes the water platform, joint, V-rail, and drive rod (excluding moving coil mass).
2. Frequency limit: 2000Hz.
3. Equivalent mass values represent conventional designs. Special requirements may necessitate recalculation.

All slip tables comply with European CE standards.
