Multi Axis Slip Table For Vibration Shaker System The frequency limit 2000Hz
Product Details
| Features: | Multi-Axis Testing | Work Environment: | Temperature Range5~35℃, Humidity Range ≤90&(not Condensing) |
|---|---|---|---|
| Structure Material: | Steel Structure | Model: | JV Series |
| Slip Table Types: | Hydrostatic Bearing / Mechanical Bearing / Mono-base | Applications: | Automotive, Aerospace, Electronics And Packaging |
| Highlight |
Multi Axis Slip Table,Slip Table 2000Hz |
||
Product Description
- Three-axis testing
- Testing of avionics and defense hardware
- Testing of commercial and military aircraft assemblies
- Automotive component testing
- Testing of electronic assemblies
- Packaging and transport testing
- Combo systems: For three-axis testing applications, we recommend the combo configuration, as it offers easy installation and accurate alignment between shaker and table, reducing test setup time when switching the position from vertical to horizontal.
- Stand-alone slip tables: A trunnion-mounted shaker with a separate slip table on a seismic base is the favored arrangement for testing large or dynamically complex payloads, as it delivers optimal pitch, roll and yaw restraints.
| Mass of moving parts (aluminum/magnesium) | JV-03KN | JV-06KN | JV-10KN | JV-20KN | JV-30KN | JV-40KN |
|---|---|---|---|---|---|---|
| SL0303(300x300) | 30 | |||||
| 11.5/8.5 | ||||||
| SL0404(400x400) | 30 | 30 | ||||
| 17.5/12. | 20/15 | |||||
| SL0505(500x500) | 30 | 30 | 40 | 40 | 45 | 45 |
| 25.5/17.5 | 28/20.5 | 38/27.5 | 42/31.5 | 56.5/43 | 61.5/48 |
1. The equivalent mass of the moving parts is the sum of the mass of the water platform, the joint, the V-rail and the drive rod. (excluding moving coil mass)
2. The frequency limit is 2000Hz.
3. The equivalent mass of the moving parts of the table is the equivalent quality of the conventional design. If there are special requirements and special designs, it is necessary to recalculate the equivalent mass of the moving parts.
Product Highlights

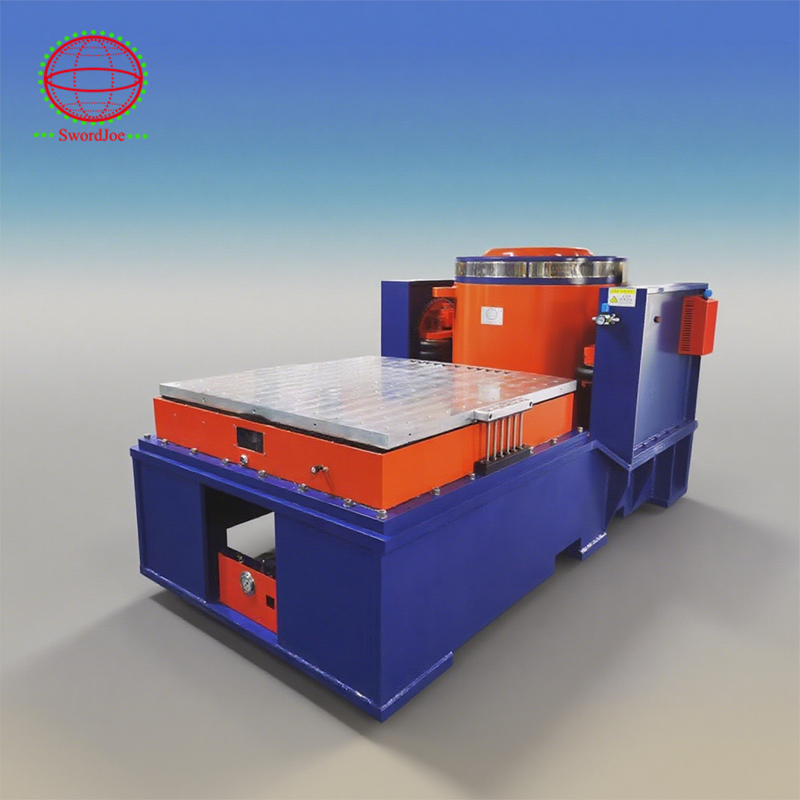

Slip Table for Vibration Shaker System For testing applications requiring three individual axes, we recommend a trunnion-mounted shaker and a slip table. A slip table typically consists of a magnesium plate sitting atop a smooth granite block, with a lubricating film in between. Both are housed in a ...
