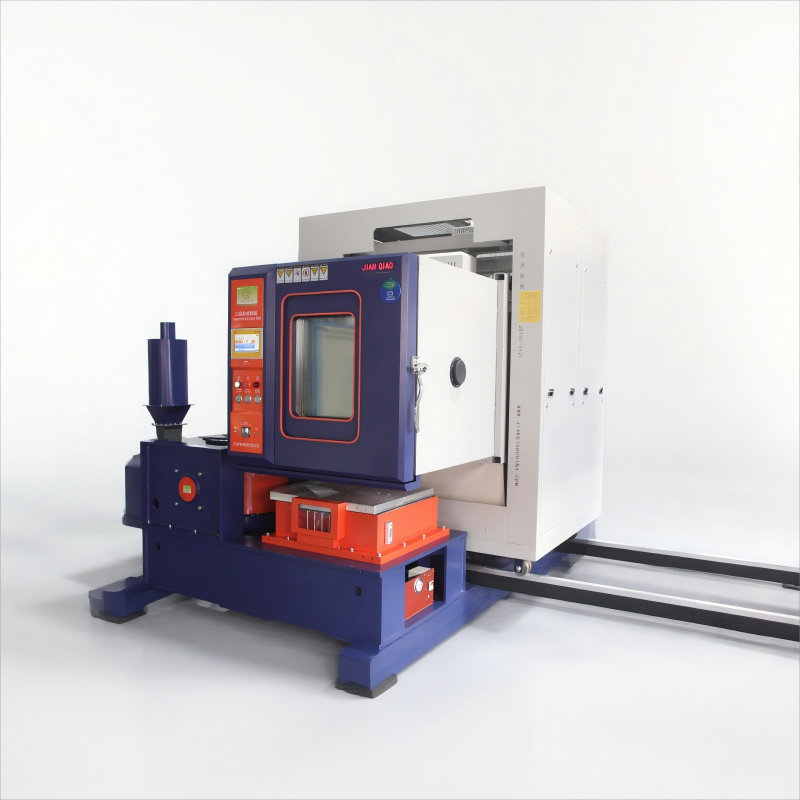

Stainless Steel Battery Agree Chamber For Battery Temperature Humidity Vibration Testing

1
MOQ
Stainless Steel Battery Agree Chamber For Battery Temperature Humidity Vibration Testing
Features Gallery Product Description Chat Now
Features
Specifications
Certifications: CE, ISO 9001:2008
Power Source: 380V AC 50/60Hz
Internal Material: Stainless Steel(SUS304)
Inner Chamber: 1000*1000*1000
Temperature Cooling Rate: 0.8~1.5°C/Min
Frequency Rang: 3-2000Hz
Controller: Standard: South Korea TEMI-1500
Usage: Environmental Testing
Fan: Centrifugal Blower
Internal Dimens: Customizable
Chamber Material: Stainless Steel
Highlight:

Stainless Steel Agree Chamber

,

Agree Chamber Vibration Testing

,

Battery Temperature Humidity Chamber
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQTHV-1000
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5 weeks
Payment Terms: ,T/T
Supply Ability: 300/YEAR
Product Description
Battery Agree Chamber for Battery Temperature Humidity Vibration Testing
Product Attributes
Attribute Value
Certifications CE, ISO 9001:2008
Power Source 380V AC 50/60Hz
Internal Material Stainless steel (SUS304)
Inner Chamber 1000*1000*1000
Temperature cooling rate 0.8~1.5°C/Min
Frequency Range 3-2000Hz
Controller Standard: South Korea TEMI-1500
Usage Environmental testing
Fan Centrifugal blower
Internal Dimensions Customizable
Chamber Material Stainless steel
Product Description

The AGREE environmental test chamber performs reliability, identification, and environmental stress screening tests for industries including electronics, automobiles, and telecommunications.

Features include:

  • Temperature control and cooling of samples on vibration tables
  • Three spatial axes transmission and rotation
  • Flexible, insulated walls to compensate for table movement and chamber volume changes
  • Decouples vibration of temperature control device components
Test Standards

TIEC 62660-2, SAE J2464, IEC 60086-4, UL 1642, UN 38.3, IEC 61960, IEC 62133, UL 2054, IEEE 1625, IEEE 1725.

Stainless Steel Battery Agree Chamber For Battery Temperature Humidity Vibration Testing 0 Stainless Steel Battery Agree Chamber For Battery Temperature Humidity Vibration Testing 1
Test Specifications
Test Specification Description
IEC 62660-2 Reliability & Abuse Testing for Lithium Ion Cells in Electric Vehicles. Includes capacity discharge tests at various temperatures, high temperature endurance, and temperature cycling tests.
SAE J2464 EV & HEV Rechargeable Energy Storage System Safety & Abuse Testing. Includes thermal stability and temperature cycling tests.
IEC 60086-4 Primary Batteries, Part 4: Safety of Lithium Batteries. Includes altitude simulation, thermal cycling, external short circuit, and thermal abuse tests.
UL 1642 Standard for Lithium Batteries. Includes short circuit, heating, temperature cycling, and altitude simulation tests.
UN Lithium Battery Testing UN Lithium Battery Testing Requirements. Includes altitude simulation and temperature cycling tests.
IEC 61960 Secondary lithium cells and batteries for portable applications. Includes discharge performance tests.
IEC 62133 Safety requirements for portable sealed secondary cells. Includes altitude simulation, temperature cycling, and thermal abuse tests.
UL 2054 Household and Commercial Batteries. Includes heating and temperature cycling tests.
IEEE 1625 Laptop Rechargeable Batteries. Includes altitude simulation, heating, and temperature cycling tests.
IEEE 1725 Phone Rechargeable Batteries. Includes heating test and temperature stability tests.
Core Components
  • Tailor made PWM control valve from SPORLAN: Energy saving over 30% with unique refrigerant servo valve controls
  • Ultra low power high efficiency air-cooled condenser: Composed of copper tube, heat sink, and fan for optimal heat dissipation
  • US-imported "Honeywell" environmentally friendly refrigerant R-404A/R23: Clean, low toxicity, non-combustible with excellent cooling effect
  • Korean "Autonics" over-temperature protector: High quality sensor and thermostat for reliable temperature control
  • Originally imported "Danish Danfoss" drying filter: Prevents clogging and ensures smooth pipeline system flow
Model Specifications
Model JQTHV-500 JQTHV-1000 JQTHV-1700 JQTHV-3400
Inner Size (cm) 50*75*65 80*70*90 100*100*100 195*315*516
Volume (L) 512L 1000L 1700L 3400L
Weight (KG) Subject to the actual weight
Temperature Range -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D: -70℃)
Humidity Range 10%~98% RH
Cooling Rate Standard 1℃ /Min or Optional specified
Heating Up Rate Standard 3℃ /Min or specified
Frequency Range 3~5000 Hz (adjustable)
Sine Force (kg) 300kg to 35000kg for chooses or specified. 300kg~35t
Displacement (mm) Please see vibration shaker details
Max.Load (kg) Please see vibration shaker details
Exterior material Standard 1.2mm Electrolytic plate Electrostatic spray paint
Interior material SUS 304# Stainless steel plate
Floor load resistance Customized
Languages Chinese, English, Russian
Controller TW DELTA PLC, 7" or 10" color touch screen control
Configuration interface With USB, WLAN, RS232 port, APP function is optional
Compressor French Tecumseh or German Bitzer brand or Bock
Power supply AC380V @50Hz
