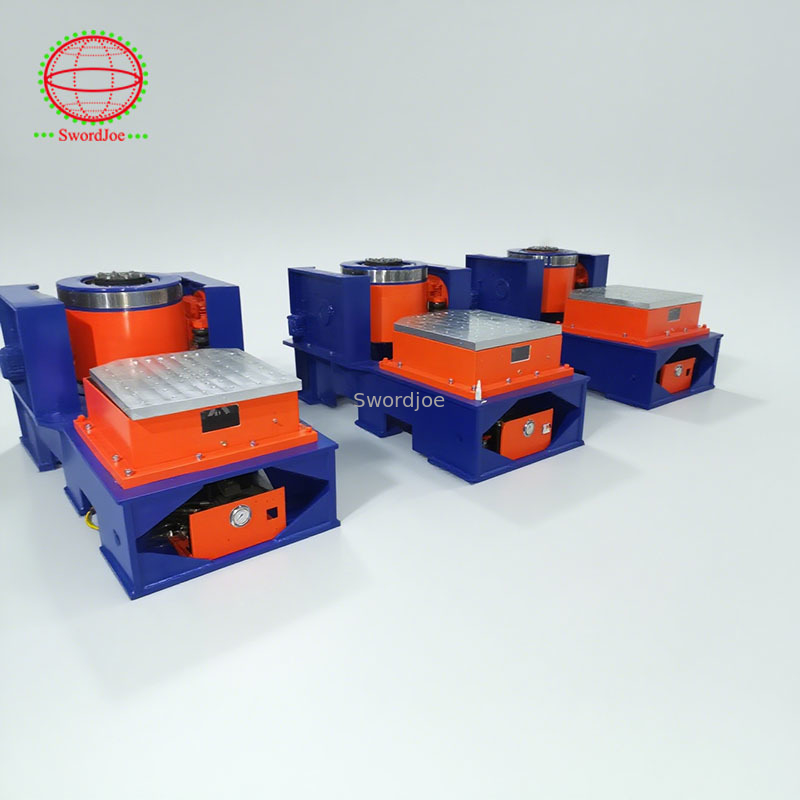

Precise High Capacity Vibration Test Table With 100mm Max Displacement 100g Acceleration

A complete vibration testing setup includes an exciter, power amplifier, exciter control, accelerometer or force transducer, and conditioning amplifier. Selection criteria for the exciter include required force/acceleration capacity, side load tolerance, transverse vibration characteristics, and waveform distortion.

Exciters are typically isolated from their base by springs, providing adequate protection from environmental vibration when floor-mounted. For high-level applications, additional isolation using resilient materials or seismic blocks is recommended to minimize building vibration transmission.

Sine wave signals (swept or fixed frequency) are the most common excitation method due to straightforward control, extensive reference data availability, and simple response measurement. Swept sine testing requires fast-response feedback control (compressor) capable of tracking low-damped resonances at high sweep rates.

Key parameters include frequency range (2-10,000 Hz) and amplitude (typically specified as peak values, with displacement as peak-to-peak). Modern systems offer dynamic ranges exceeding 80 dB with compressor rates up to 1000 dB/sec.

Random vibration testing employs continuous-spectrum signals with Gaussian-distributed amplitudes. Practical systems impose limitations on the theoretical ideal, with typical requirements specifying peak values at 3× RMS levels.

Key differences from sine testing include greater power amplifier requirements (for equivalent force output) and spectral description using power spectral density (PSD) or acceleration spectral density (ASD). Modern digital control systems use Fourier transform techniques and computer-based equalization to shape the spectrum according to standards like ISO 5344.

Environmental testing evaluates equipment durability under specified vibration, shock, temperature, and humidity conditions. Standards like IEC 60068 (Tests Fc and Fd) provide test procedures while allowing customization of severity levels.

Key test components include:

• Test object mounting configuration
• Endurance conditioning parameters
• Vibration response investigation methodology

Mounting must simulate actual service conditions, often requiring custom fixtures. The control accelerometer location and operational status during testing must be clearly specified.

Test fixtures must transmit vibration uniformly without introducing resonances within the test frequency range. Aluminum construction typically offers the best balance of weight and stiffness. Design verification requires accelerometer measurements across the fixture surface.

Optimization techniques include:

• Over-dimensioning structural elements to elevate natural frequencies
• Using thin plates with strategic bracing
• Minimizing spring/mass effects from fasteners
• Applying damping materials (rubber laminates, foamed plastic fillers)

About Guangdong Jianqiao Testing Equipment Co., Ltd

As a leading manufacturer with 20 years of experience, we specialize in vibration test systems, environmental chambers, and battery testing equipment. Our ISO9001-certified products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB.

Applications span automotive, aerospace, shipping, electronics, and scientific research. Our technical team delivers solutions for top enterprises and over 11,000 end users worldwide.
