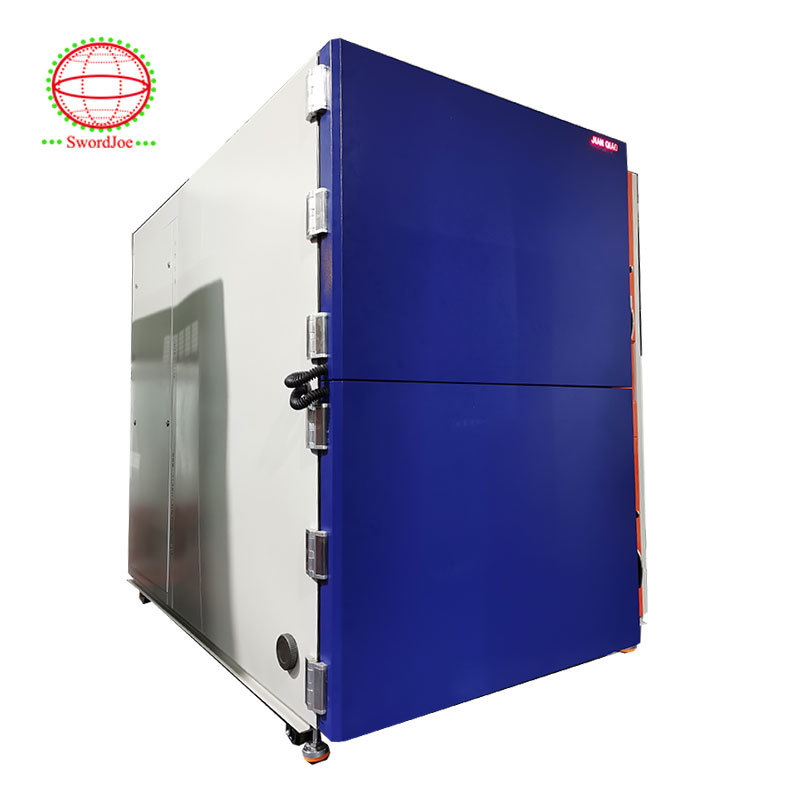

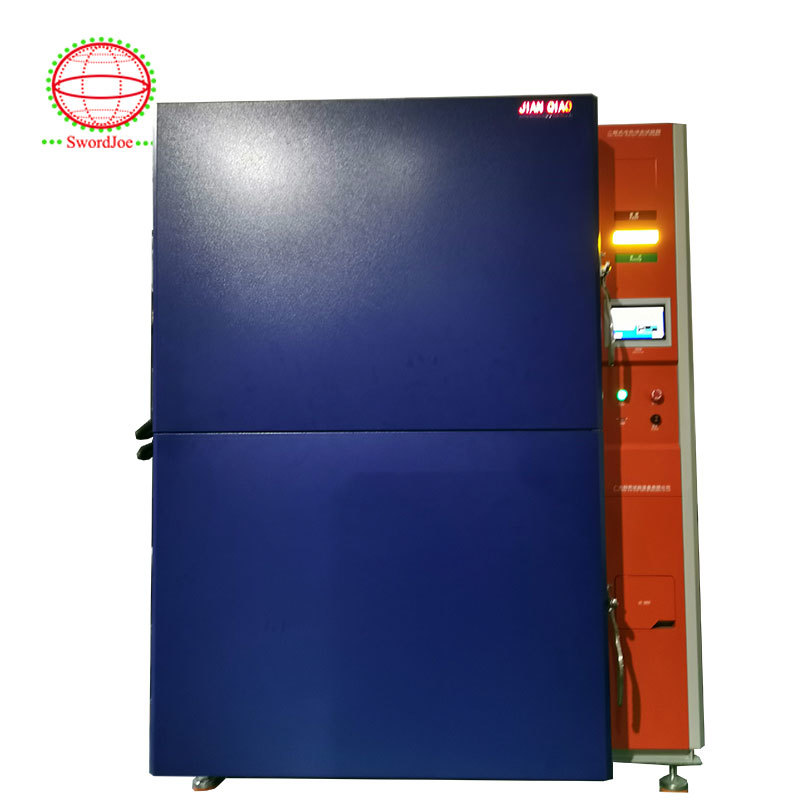

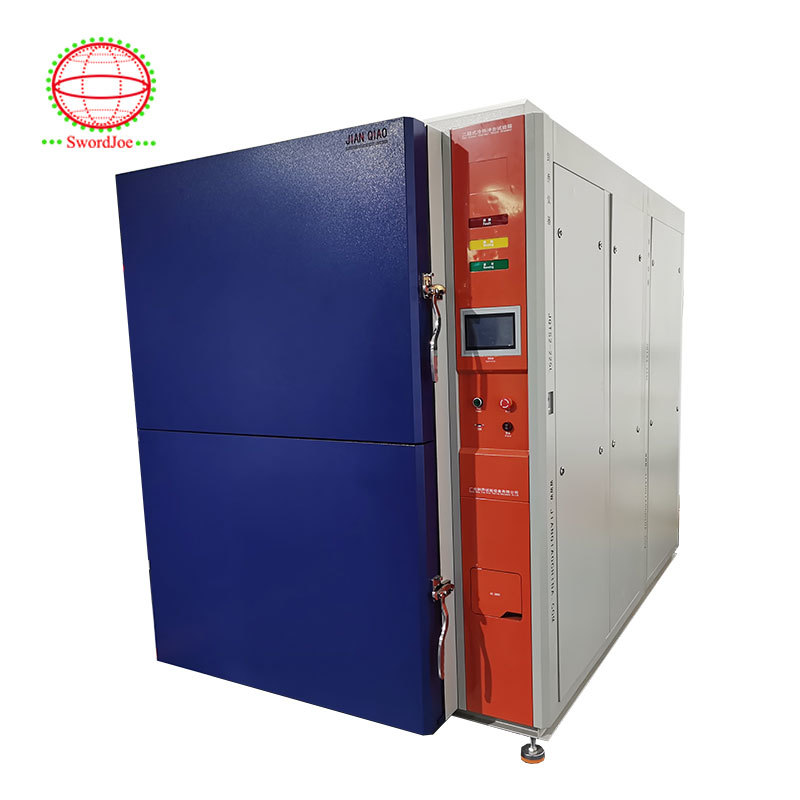

Touch Screen Two Zone Thermal Shock Chamber -65 ℃ To 200 ℃ 208V Power Connection
Product Details
| Model: | JQTS-100 | Temperature Range: | -40°C/-55°C/-65°C~+150°C |
|---|---|---|---|
| Highlight |
Touch Screen Two Zone Thermal Shock Chamber,Two Zone Thermal Shock Chamber 208V,Touch Screen Thermal Shock Chamber |
||
Product Description
The JQTS-2-225 thermal shock chamber provides an efficient solution for thermal cycling tests without requiring special utilities or excessive lab space. With a temperature range of -65°C to 200°C, it transfers product loads between cold and hot zones with precision and reliability.
- Meets Mil-Std 883 1010.7/1010.8 thermal cycling requirements with 4 kg (8 lbs) capacity
- Compliant with IEC 61300-2-47, JEDEC JESD47E, JESD22-A104 standards
- Intuitive touch-screen operation with full-featured controls
- Refrigeration-based cooling eliminates need for liquid nitrogen or cooling water supply
- Only requires standard 208V power connection
- Quiet operation below 60dB
| Model | JQTS-100 |
|---|---|
| Temperature Range | -40°C/-55°C/-65°C to +150°C |
- Separate hot and cold temperature zones
- Direct-drive system for reliable transfer between zones (max load 17 lb.)
- Compact design with integrated mechanical refrigeration
- Includes two specimen baskets and 2" diameter cable tube
- Specimen power supply terminal
- Mobility features with casters and leveling pads
- Maintains precise low temperature in cold zone
- Dual sirocco blower motors (one per zone) for optimal air circulation
- Non-CFC cascade refrigeration with 2-hp compressors
- Quiet operation below 60dB
- 7" color touch-screen display (10" optional)
- Cycle-time reduction function for automatic step advancement
- 20 user-definable programs with alphanumeric naming
- System alarm memory for historical review
- Standard Ethernet with browser access and USB connectivity
| Model | JQTS2-50 | JQTS2-80 | JQTS2-100 | JQTS2-150 | JQTS2-225 | JQTS2-408 |
|---|---|---|---|---|---|---|
| Inner Size W*D*H(cm) | 35*32*40 | 50*40*40 | 50*50*40 | 65*50*46 | 65*70*50 | 85*80*60 |
| Outer Size W*D*H(cm) | 125*160*185 | 135*170*185 | 140*185*190 | 160*190*205 | 160*230*210 | 180*250*230 |
| Capacity (L) | 50L | 80L | 100L | 150L | 225L | 408L |
| Weight (kg) | 800 | 900 | 950 | 1050 | 1250 | 1450 |
| Temperature Shock Range | A: -40°C to 180°C B: -55°C to 180°C C: -65°C to 180°C |
|---|---|
| Shock Types | 1. High Temp → Low Temp 2. Low Temp → High Temp 3. Normal Temp → High Temp → Normal Temp → Low Temp 4. Normal Temp → High Temp → Normal Temp → Low Temp |
| High Temp Chamber | +60°C to +200°C |
| Pre-Heating Time | (+20°C to 200°C) <35 minutes |
| Low Temp Chamber | (-40°C/-55°C/-65°C) to -10°C |
| Pre-Cooling Time | (+20°C to -75°C) <60 minutes |
| Temperature Transfer Time | -40°C/-55°C/-65°C to +180°C <5 seconds (Two Zone) |
| Recovery Time | Heat chamber exposure 30min Cold chamber exposure 30min Within 5-10min |
| Temperature Fluctuation | ±0.5°C |
- Outer shell: 1.5mm electrolytic plate with baked electrostatic painting
- Inner shell: 1.2mm thick SUS#304 stainless steel plate (matt treatment)
- Insulation: Glass fiber wool + Rigid polyurethane foam
- 7" LCD color touch screen (10" optional)
- 120 programs, 1200 steps
- USB, RS232/R485 interface
- Mobile APP and computer remote control (optional network interface)
- P.I.D + S.S.R + Microcomputer balance temperature control system
- Semi-closed two-stage compressor (water cooled)
- Fully-closed two-stage compressor (air-cooled)
- Refrigerant: HFC-404a and HFC23/HFC-R449A/HFC-507
- Compressors: French "Tecumseh" or German "Bock"/"Bitzer"
- Fuse-free switch
- Compressor high/low voltage protection
- Over-temperature protection
- Over-current protection
- Refrigerant high-voltage protection
- Electronic sound/light alarm system
- Glass viewing window
- Two shelves
- 2×Ø50mm cable ports
- Casters
AC/380V, 50HZ, 20-50A
