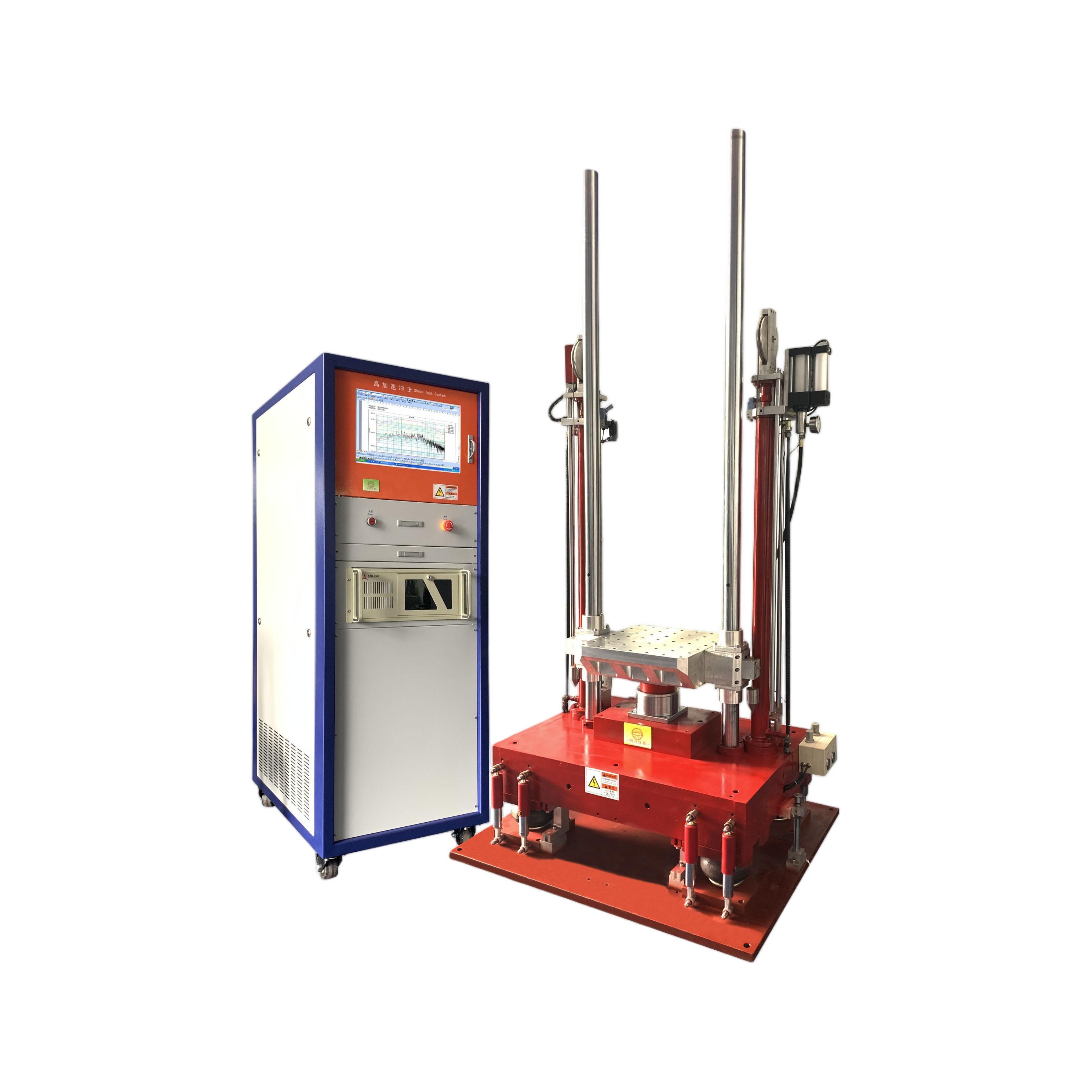

Hydraulic Shock Testing System For Battery Pack Half Sine Shock Classic Shock
Product Details
| Features: | Digital Control | Name: | Shock Test System |
|---|---|---|---|
| Control And Measurement System: | OKS01 | Power Requirements: | 220V±10% Single Phase AC 50Hz 2kVA |
| Standard: | GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200 | ||
| Highlight |
Hydraulic Shock Testing System,Battery Shock Testing System,Half Sine Shock Testing Machine |
||
Product Description
Shock tests accurately measure the fragility of products and evaluate how they respond to specific shock inputs.
Shock test data is key information when determining if your product is capable of withstanding its intended distribution and use environment. For any mechanical shock testing application, Jianqiao builds a Shock Test System to meet your needs.
Each customer has unique requirements for their dynamic testing equipment. It is important to know the size and weight of test items to correctly configure the appropriate testing equipment. The size of your largest test item will help determine the table surface area. The maximum payload will help determine the shock system performance category.
Jianqiao makes a wide range of Shock Systems. We recommend the most suitable system configuration for every testing application based on two important criteria:
- The size of your largest test item
- The performance capability needed to meet your testing needs
Each customer has unique requirements for their dynamic testing equipment. It is important to know the size and weight of test items to correctly configure the appropriate testing equipment. The size of your largest test item will help determine the table surface area. The maximum payload will help determine the shock system performance category.
Shock testing levels vary significantly depending on the product you are evaluating or the conditions you are simulating. The two most important shock performance criteria are velocity change and acceleration level. It is also important to know the shock pulse waveforms—half sine, sawtooth, or trapezoidal.
| Model | IS5 | IS10 | IS25 | IS50 | IS100 | IS200 | IS300 |
|---|---|---|---|---|---|---|---|
| Maximum test load (kg) | 5 | 10 | 25 | 50 | 100 | 200 | 300 |
| Table size (mm*mm) | 120*120 | 200*200 | 350*350 | 500*500 | 700*700 | 750*750 | 800*800 |
| Shock waveform (m/s²) | |||||||
| Half sine waveform | 100~30000 | 100~20000 | 100~10000 | 100~6500 | 150~6000 | 150~5000 | 150~3500 |
| After peak saw-tooth | 100~1000 | 100~1000 | 100~1000 | 100~1000 | 100~1000 | 150~1000 | 150~1000 |
| Trapezoidal wave | 150~1500 | 150~1500 | 150~1200 | 150~1200 | 150~1200 | 150~1000 | 100~1000 |
| Pulse duration time (m/s) | |||||||
| Half sine waveform | 0.5~20 | 0.6~20 | 0.8~20 | 1.5~20 | 2~20 | 2.5~20 | 3~20 |
| After peak saw-tooth | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Trapezoidal wave | 6~20 | 6~20 | 6~20 | 6~25 | 6~25 | 6~25 | 6~25 |
| Maximum impact distance (mm) | 1550 | 1500 | 1400 | ||||
| Anti-secondary impact device | Air pressure friction brake | Hydraulic friction brake | |||||
| Table weight (kg) | 1300 | 1500 | 2800 | 3800 | 4350 | 4900 | 6250 |
| Dimensions (L*W*H)(mm) | 900*450*2600 | 1000*500*2700 | 1100*800*2800 | 1100*750*2800 | 1350*850*2850 | 1420*920*2900 | 1480*1000*2950 |
| Control and measurement system | OKS01 | ||||||
| Power requirements | 220V±10% single phase AC 50Hz 2kVA | ||||||
| Hydraulic pump station power requirements | 380V±10% 3 phases AC 50Hz | ||||||
| Hydraulic pump station power consumption (kVA) | 2.5 | 2.5 | 4 | 4.6 | 4.6 | 6.2 | 6.5 |
| Applicable standard | GB/T2433.5,GB/T2423.6,IEC68-2-29,JJG497-200 | ||||||
