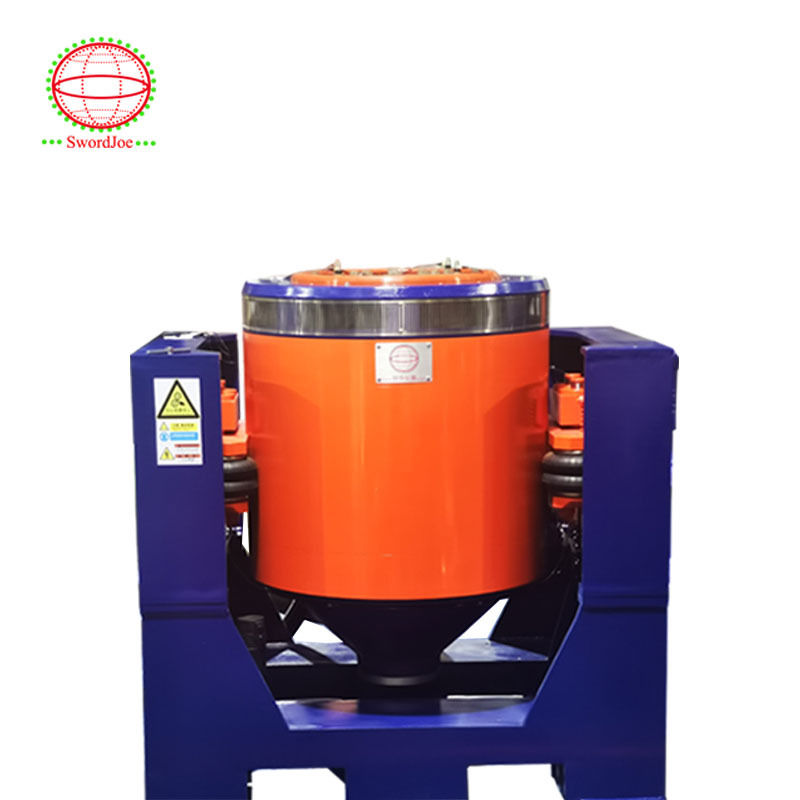

Ed Shakers Tips Vibration Test Table For Automobtive And Transportation
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
Transportation Vibration Test Table,Automobtive Vibration Test Table |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 20kN /2000kg/4409lbf |
| Random force | 20kN /2000kg/4409lbf |
| Shock force | 98kN /9800kg/9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |
Vibration tests verify product requirements and assess robustness for transport or use conditions. These five expert tips will help optimize your vibration testing process.
Detailed planning is crucial for efficient vibration testing. Specifications should include more than just standard references - operational status and acceptance criteria must be clearly defined. Review sample checklists: ECR-205 and IEC 60068-2-6.
Mount test objects as they would be in normal use. Fixtures should create stable connections without adding resonances. IEC 60068-2-47 provides excellent guidance on fixture design.
While acceleration describes random movement absolutely, displacement (visible to the eye) helps calculate mechanical stress. Contact us for an Excel tool to calculate displacement for sine vibration.
Sine tests use single frequencies sequentially, while random tests use multiple frequencies simultaneously. Random vibration typically better simulates real-world conditions. IEC 60068-3-8 provides guidance on selecting appropriate test types.
Beyond basic pass/fail criteria, perform detailed inspections for hidden damage. Check electrical connectors with magnification and examine EMC gaskets for wear. This reveals issues not apparent during initial testing.
| Parameter | Value |
|---|---|
| Frequency Range (Hz) | 5~3000 |
| Rated Sine Force (KN) | 20 |
| Shock Force (KN) | 40/60✱ |
| Maximum Acceleration (m/s²) | 980 |
| Maximum Speed (m/s) | 2 |
| Maximum Displacement (mmp-p) | 51/76 |
| Maximum Load (kg) | 300 |
| Vibration Isolation Frequency (Hz) | 2.5 |
| Moving Parts Weight (kg) | 23 |
| Armature Diameter (φmm) | 335 |
We specialize in vibration test systems, environmental test chambers, and battery testing equipment. With over 20 years of experience, we've served top Thai enterprises and 11,289 end users.
Our ISO9001-certified products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and IEC. We serve industries including new energy vehicles, aerospace, marine, and electronics.
