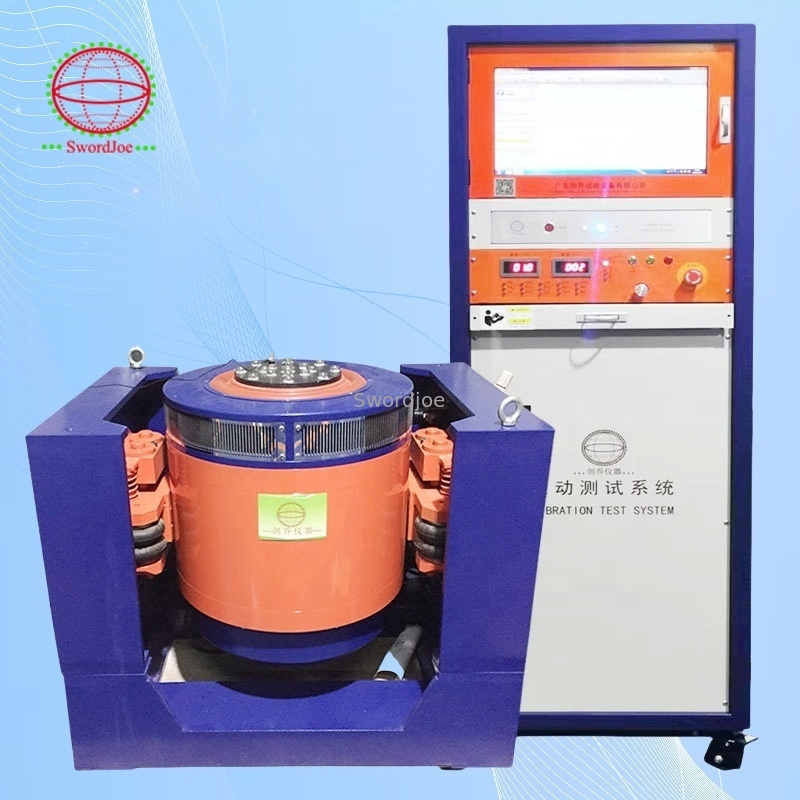

Air Cooled Electric 3 Axis Vibration Table Test System Shaker Table
Product Details
| Frequency: | 2000Hz | Sine Force: | 3kN /300kg/674.43lbf |
|---|---|---|---|
| Random Force: | 3kN /300kg/674.43lbf | Shock Force: | 6kN /600kg/1348.86lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 120KG |
| Moving Parts Mass: | 3KG | Armature Diameter: | 150mm |
| Highlight |
Electric 3 Axis Vibration Table,Air Cooled 3 Axis Vibration Table,Electric 3 Axis Shaker Table |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 3kN / 300kg / 674.43lbf |
| Random force | 3kN / 300kg / 674.43lbf |
| Shock force | 6kN / 600kg / 1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 120KG |
| Moving parts mass | 3KG |
| Armature diameter | 150mm |
The air-cooled series electric vibration test system offers wide frequency range, excellent performance indicators, high reliability, compact footprint, easy mobility, and simple operation. Available in various models with excitation forces ranging from 1kN to 70kN and maximum loads from 70kg to 1000kg.
- Forced air cooling system
- 1:1 random and sinusoidal excitation force ratio
- Displacement peak-to-peak value up to 100mm
- Effective trunnion airbag isolation
- Double magnetic circuit design with low magnetic flux leakage
- Sinusoidal excitation force range: 1kN ~ 70kN
- Double sinusoidal impact force capability
- Lightweight dynamic coil with optimized vibration resistance
- Configurable horizontal slide for versatile testing
- Low-noise cooling fan with excellent performance
- Frequency range starting from 1Hz
High Dynamic Winding Reliability: Enhanced moving coil winding structure provides superior vibration resistance in high thrust, high acceleration, impact, and high temperature environments.
Efficient Cooling: Unique fan design delivers optimal cooling with minimal noise.
Versatile Testing: Horizontal slide enables simple switching between vertical and horizontal test orientations.
Advanced Amplifiers: Feature reliable MOSFET and IGBT modules for maximum stability.
| Parameter | JQA-102-240 Specifications |
|---|---|
| Frequency Range | 5~3500Hz |
| Rated Sinusoidal Force | 10KN |
| Shock Force | 20KN |
| Max. Acceleration | 980m/s² |
| Max. Speed | 2m/s |
| Max. Displacement | 51mm p-p |
| Max. Load | 200kg |
| Armature Diameter | 240mm |
- IEC62660-2 (Secondary lithium-ion cells)
- IEC 62281 (Safety during transport)
- IEC 62133-2:2017 (Safety requirements)
- IEC60068-2-64 (Environmental testing)
- IEC60068-2-6 (Vibration testing)
- IEC60086-4 (Lithium battery safety)
- UN 38.3.4.3 (Transport of dangerous goods)
- UL-1642 (Lithium battery safety)
- ISO16750-2 (Automotive electronics)
- RTCA-DO-160G (Airborne equipment)
- SAE J1211 (Automotive modules)
About Guangdong Jianqiao Testing Equipment Co., Ltd
A leading manufacturer specializing in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment. With over 20 years of experience, we provide high-quality products and comprehensive solutions to top enterprises and end users worldwide.
Our products comply with ISO9001 and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB. Widely used in new energy vehicles, aerospace, shipping, electronics, and other industries for scientific research, quality inspection, and academic applications.
