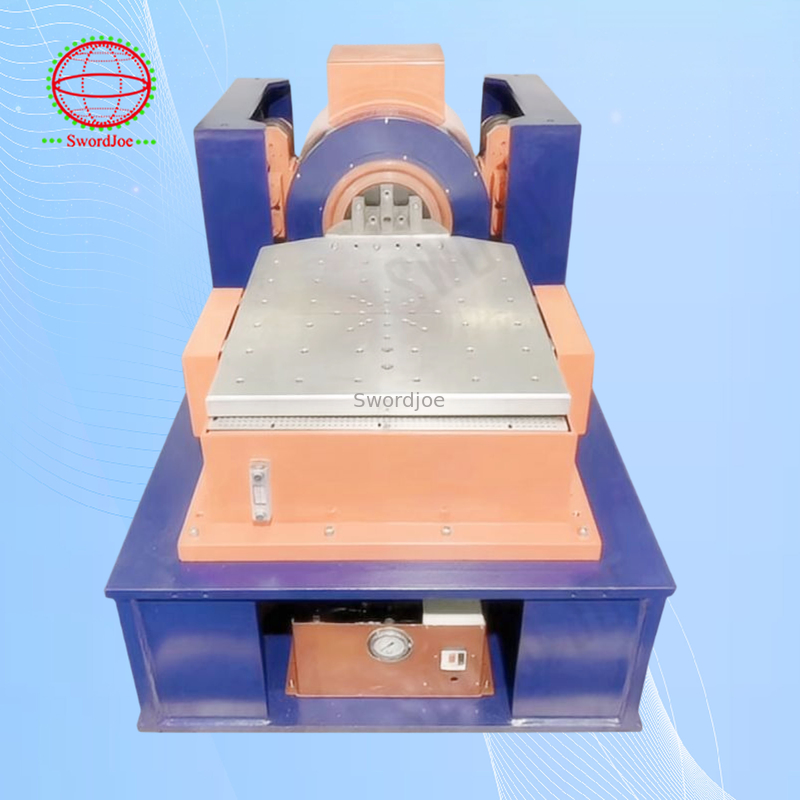

EV Battery Electrodynamics Vibration Test Machine System UN38.3
Product Details
| Frequency: | 2000Hz | Sine Force: | 3kN /300kg/674.43lbf |
|---|---|---|---|
| Random Force: | 3kN /300kg/674.43lbf | Shock Force: | 6kN /600kg/1348.86lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 120KG |
| Moving Parts Mass: | 3KG | Armature Diameter: | 150mm |
| Highlight |
un38.3 vibration machine test,un38.3 vibration test machine,2000hz vibration machine test |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 3kN /300kg/674.43lbf |
| Random force | 3kN /300kg/674.43lbf |
| Shock force | 6kN /600kg/1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 120KG |
| Moving parts mass | 3KG |
| Armature diameter | 150mm |
The air-cooled series-electric vibration test system offers wide frequency range, excellent performance indicators, high reliability, compact footprint, easy mobility, and simple operation. Available in various models with excitation forces ranging from 1kN to 70kN and maximum loads from 70kg to 1000kg.
- Forced air cooling system
- Random and sinusoidal excitation force 1:1 ratio
- Displacement peak-to-peak value up to 100mm
- Trunnion airbag with excellent isolation effect
- Double magnetic circuit design with low magnetic flux leakage and uniform magnetic field
- Sinusoidal excitation force range: 1kN ~ 70kN
- Light dynamic coil with optimized design for strong vibration resistance
- Center airbag with strong carrying capacity and excellent low frequency performance
- Configurable horizontal slide
- High-efficiency cooling fan with low noise operation
- Frequency range starting from 1Hz
High dynamic winding reliability: Innovative structure and technology significantly improve vibration resistance reliability in high thrust, high acceleration vibration, impact, and high temperature environments.
Cooling fan: Unique air duct design provides excellent cooling effect with low noise operation.
Horizontal and vertical testing: Electric vibration table with horizontal slide allows for simple switching between test orientations.
IGBT module: Amplifiers feature reliable MOSFET and IGBT modules for high stability and reliability.
| Parameter | Value |
|---|---|
| Shaker Model | JQA-102-240 |
| Frequency Range (Hz) | 5~3500 |
| Rated sinusoidal force (KN) | 10 |
| Shock force (KN) | 20 |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mmp-p) | 51 |
| Max. load (kg) | 200 |
| Vibration isolation frequency(Hz) | 2.5 |
| Shaking table type | JQ-10 |
| Moving parts weight (kg) | 10 |
| Armature diameter (φmm) | 240 |
| Allowable eccentric moment (N x m) | 300 |
- IEC62660-2 (Secondary lithium-ion cells for electric road vehicles)
- IEC 62281 (Safety during transport)
- IEC 62133-2:2017 (Safety requirements for secondary cells)
- IEC60068-2-64 (Environmental testing - Vibration)
- IEC60068-2-6 (Environmental testing - Sinusoidal vibration)
- UN 38.3.4.3 (Transport of dangerous goods)
- UL-1642 (Standard for lithium battery safety)
- ISO16750-2 (Environmental conditions for automotive electronics)
- RTCA-DO-160G (Environmental test procedures for airborne equipment)
- SAE J1211 (Validation of automotive electrical/electronic modules)
As a large-scale professional manufacturer specializing in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment, we serve dozens of top enterprises and over 11,000 end users. Our products meet ISO9001 standards and comply with various international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and IEC.
Our testing equipment is widely used in new energy vehicles, aerospace, shipping, electronics, and other industries, serving scientific research units, quality inspection institutions, and academic fields.
