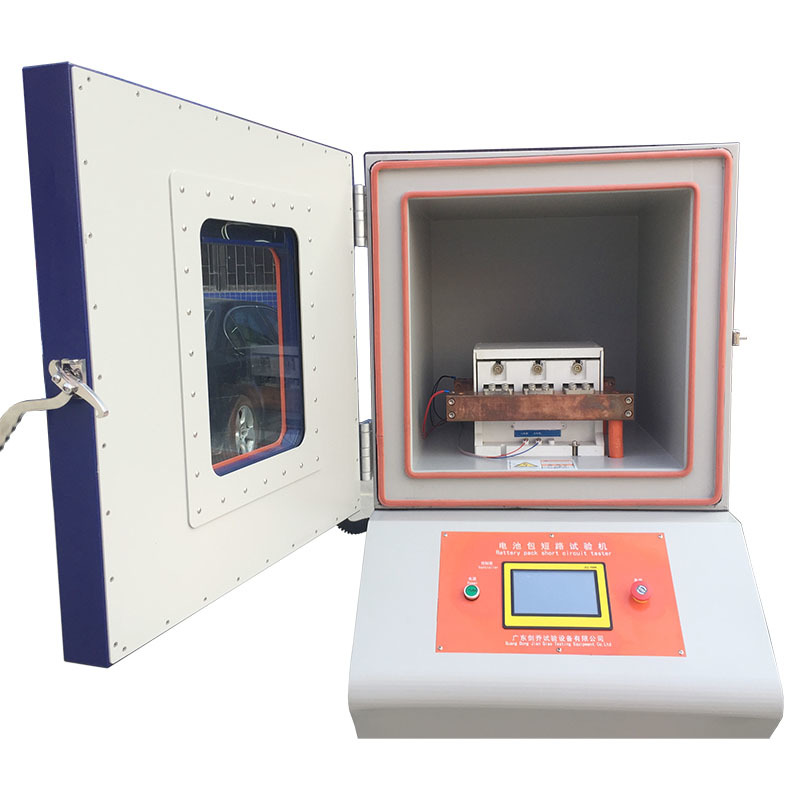

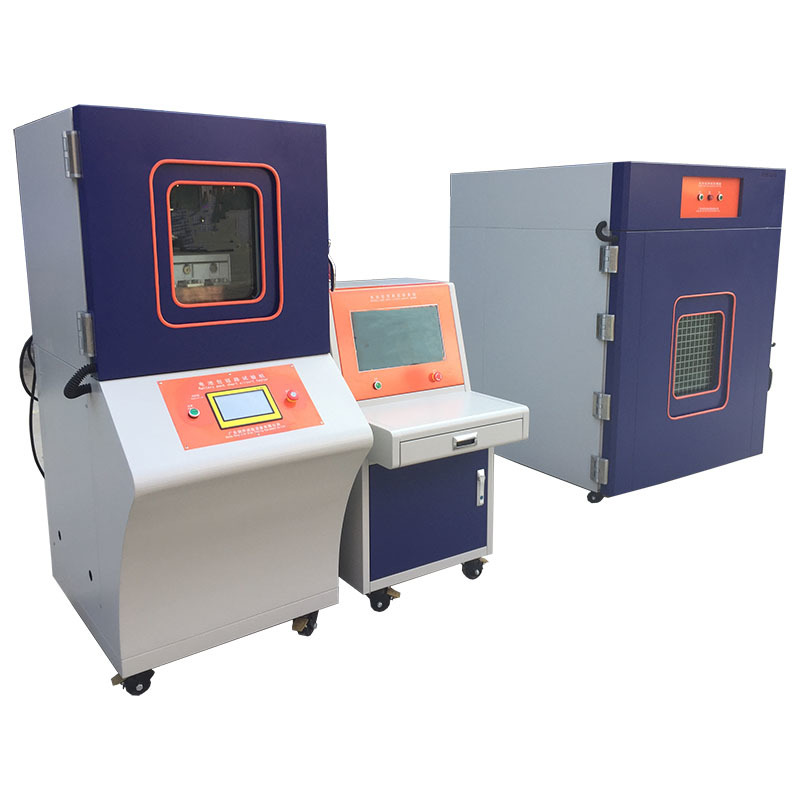

AC380V Electric Car Battery Tester Short Circuit Tester 26A
Product Details
| Device Internal Resistance: | ＜5mΩ | Controller Dimensions: | 700*900*1500mm(W·D·H) |
|---|---|---|---|
| Power: | AC380V,50Hz,26A | Model: | DL-6055 |
| Highlight |
AC380V Electric Car Battery Tester,Electric Car Battery Tester 26A,Battery Short Circuit Tester |
||
Product Description
The power battery short-circuit tester is a test device for high-power power batteries for automobiles. During the test, not only the current change during battery short-circuit can be detected, but also the temperature change of different battery surfaces can be detected at the same time. Various data of temperature changes at different positions on the surface of the battery can be saved and output in the form of numbers and curves. It is the preferred testing instrument for power battery research, testing .
Test Method
2.1 Test object for the battery system 2.2 All control systems of the test object in the test should be in working condition 2.3 Short the terminal of the test object for 10min 2.4 The short-circuit resistance is not more than 20mΩ, which both parties mutually agree. Observed 2h 2.5 Requirements: The protection device works, the battery system has no leakage, the casing is broken, fires or explodes, etc. The insulation resistance value after the test is not less than 100Ω/V.
|
Model |
DL-6055 |
||
|
Maximum operating current |
5000A |
10000A |
15000A |
|
The device can withstand the maximum instantaneous current |
6000A |
11000A |
16000A |
|
Device internal resistance |
＜5mΩ |
||
|
Control method |
PLC touch screen control + remote control (within 10 meters) |
||
|
Controller dimensions |
700*900*1500mm(W·D·H) |
||
|

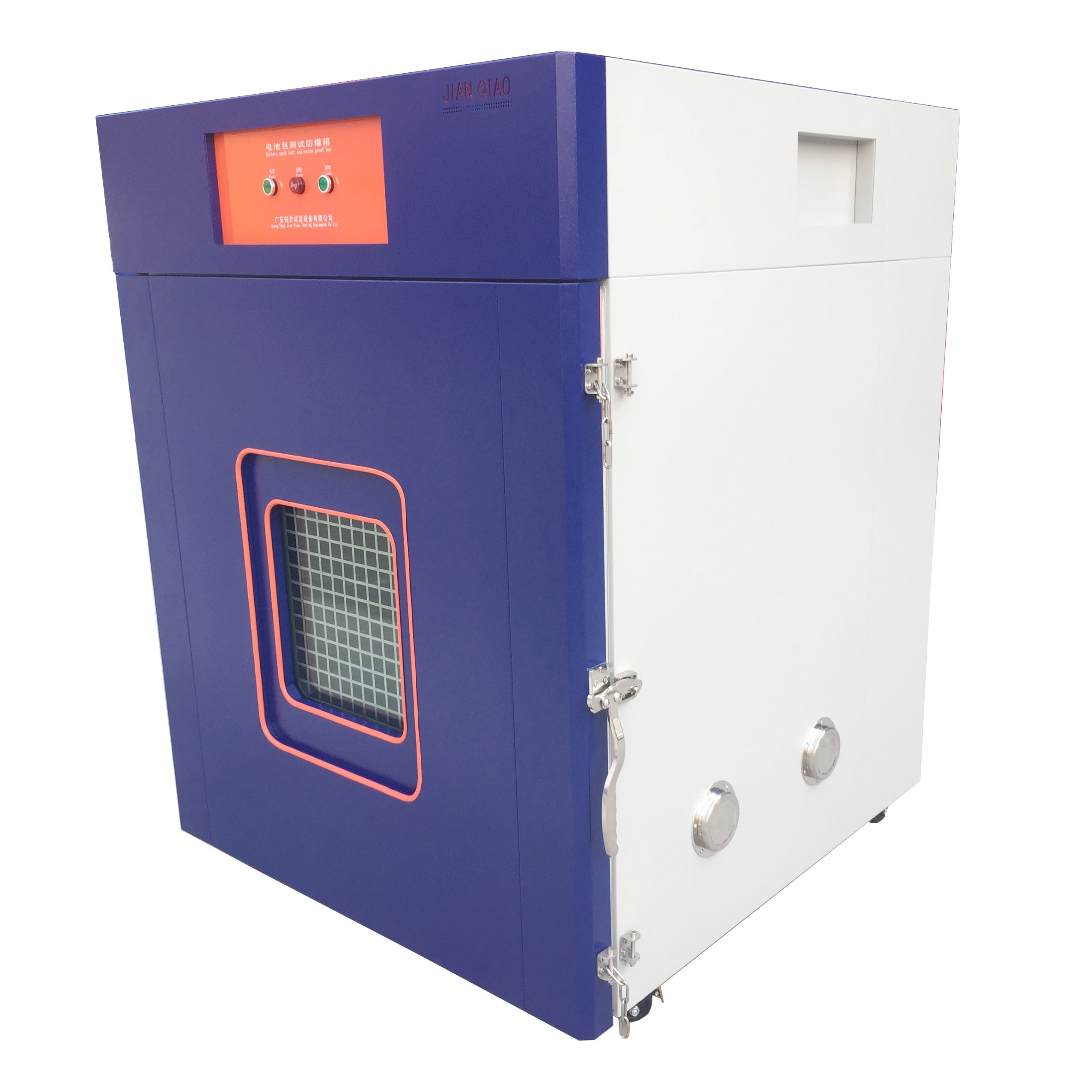

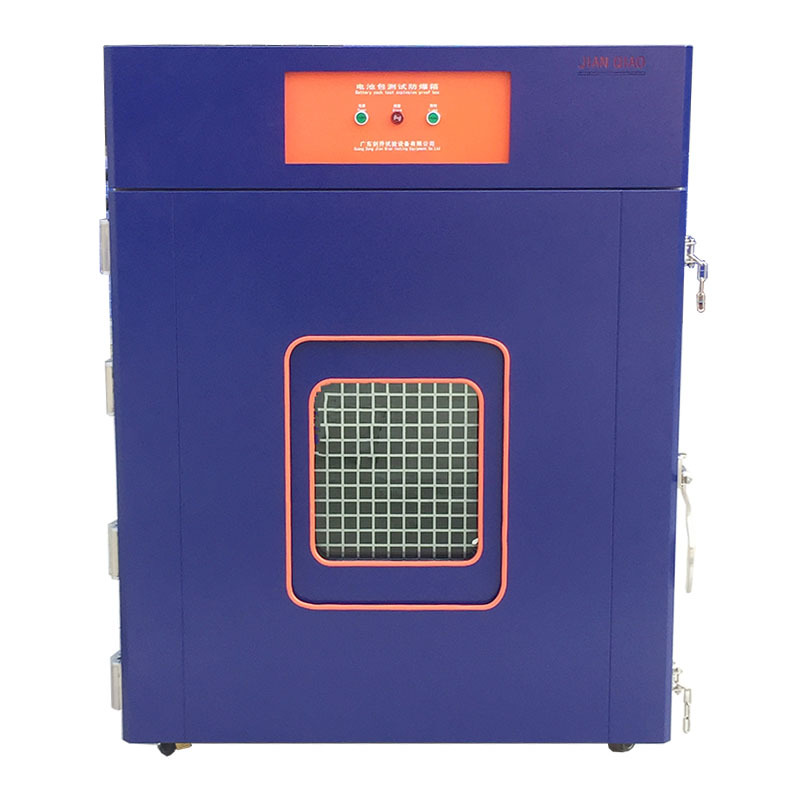

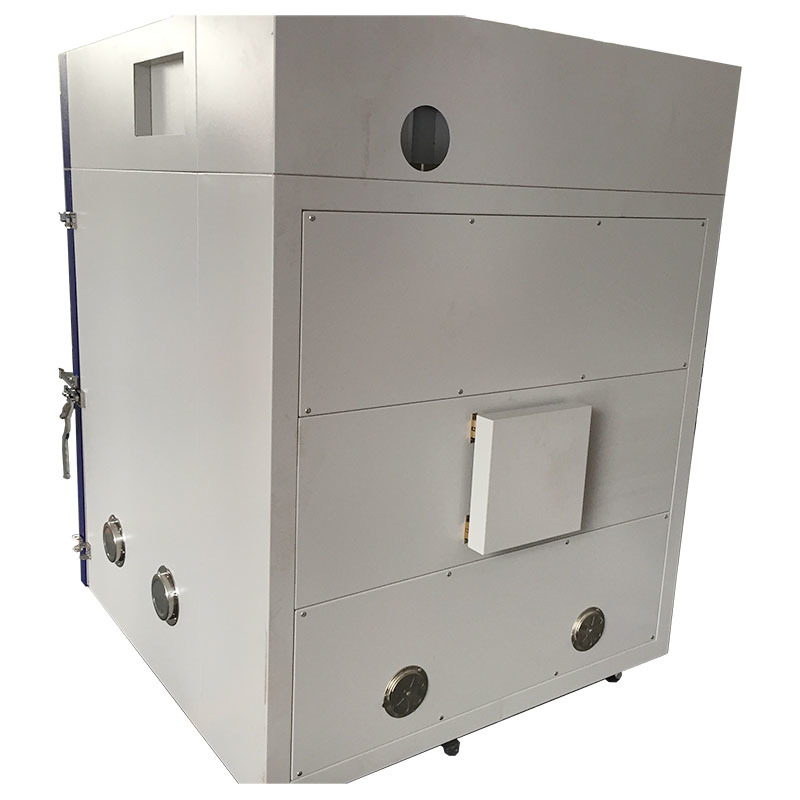

Explosion-proof Chamber (optional) |
2000*2000*2000mm(W·D·H)； 3000*3000*2000mm(W·D·H) Can use the customer's independent explosion-proof room as an explosion-proof Chamber |
||
|
Safety equipment |
Test space installation lighting system, video surveillance system, powerful smoke exhaust system, anti-misoperation system, smoke alarm device |
||
|
Data collection |
Independent remote acquisition isolation, multi-channel voltage, temperature, current acquisition channel, to ensure data is correct, acquisition frequency: 100Hz |
||
|
Short circuit |
Mechanical pneumatic suction or mechanical pneumatic suction + vacuum arc extinguishing (optional) |
||
|
Power |
AC380V,50Hz,26A |
||
|
Security system |
Leakage, over-current protection, abnormal sound and light alarm system, video surveillance system, safety explosion-proof system, smoke emission system, smoke alarm device, explosion-proof lighting device, etc. |
||
Product Highlights
The power battery short-circuit tester is a test device for high-power power batteries for automobiles. During the test, not only the current change during battery short-circuit can be detected, but also the temperature change of different battery surfaces can be detected at the same time. Various ...
