Durable Head Expander For Vibration Test System 2 kHz Frequency

Brand Name:	Jianqiao
Model Number:	SZ-1010

Detail Information

Product Description

Detail Information

Document:

Climatic Test Chamber Catal...25.pdf

Name:

High Quality Head Expander

Frequency:

2 KHz

Custom:

Shapes And Sizes

Characteristics:

FEA Technology

Types:

Guided / Unguided

Packaging Details:

Wooden case

Highlight:

Durable Head Expander

Head Expander 2 kHz

Product Description

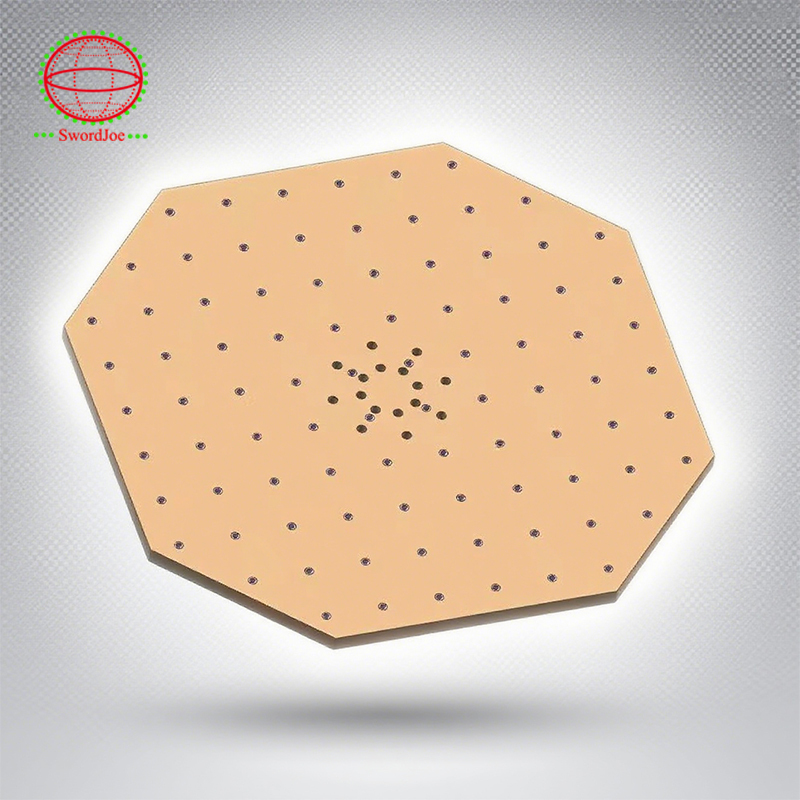

Head Expander for Vibration Test System

A head expander, in the context of vibration testing, is an accessory used to increase the mounting surface area of an electrodynamic shaker table. This allows for testing of larger or heavier specimens that cannot be directly mounted on the standard shaker table.

Key Features and Benefits

Purpose: Expands the mounting surface of shaker tables to accommodate larger test specimens.
Material: Constructed from lightweight magnesium or aluminum for optimal strength-to-weight ratio.
Design: Engineered for rigidity and stability with reinforced features like gussets and welds.
Customization: Available in custom sizes, shapes, and mounting hole patterns to meet specific requirements.
Applications: Widely used in automotive, aerospace, and electronics industries for vibration and shock testing.
Integration: Designed for seamless compatibility with existing shaker systems.

Performance Advantages

Increases testing capacity for larger and heavier specimens
Improves test accuracy with stable mounting platform
Reduces test time through potential multi-specimen testing
Cost-effective solution for expanding testing capabilities

Technical Specifications

Model	Vertical Head Expander (Square)	Effective Mass (kg)	Upper Frequency Limit (Hz)
CZ0303	7 \| 8 \| 10	2000	2000 \| 2000 \| 2000
CZ0404	12 \| 13 \| 21	2000	2000 \| 2000 \| 2000
CZ0505	23 \| 29 \| 32 \| 35	2000	2000 \| 2000 \| 2000 \| 2000
CZ0606	35 \| 38 \| 40 \| 40 \| 48	1000 \| 1500 \| 2000 \| 2000 \| 2000
CZ0707	40 \| 43 \| 60 \| 70 \| 80	1000 \| 1000 \| 2000 \| 2000 \| 2000
CZ0808	60 \| 60 \| 70 \| 80 \| 85 \| 100 \| 100	800 \| 1000 \| 1200 \| 1300 \| 1200 \| 1500 \| 1500
CZ0909	80 \| 95 \| 95 \| 105 \| 120 \| 120	500 \| 1000 \| 1000 \| 1000 \| 1000 \| 1000
CZ1010	73 \| 100 \| 110 \| 175 \| 190 \| 210	400 \| 600 \| 1000 \| 1000
