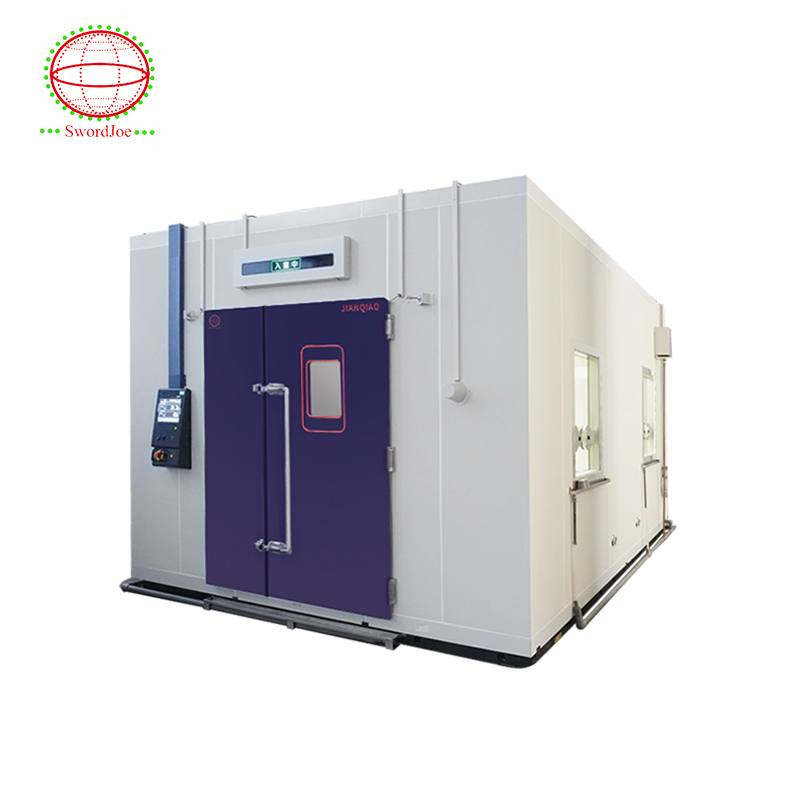

Automatic High Temperature Aging Chamber AC380V 50Hz High Performance
Product Details
| Temp Heating Rate: | 3℃/min Or Customized | Temp Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Interior Material: | Stainless Steel Plate SUS304 | Power Supply: | AC380V 50Hz |
| Humidity Range: | 20% To 98% RH | ||
| Highlight |
Automatic High Temperature Aging Chamber,High Temperature Aging Chamber AC380V |
||
Product Description
The High Temperature Aging room, is a high-performance electronic product (such as: computer machine, terminal machine, vehicle electronics, power supply, monitor, etc.) to simulate high temperature and other harsh environment testing equipment, is an important test equipment for to improve the stability and reliability of product, and an important production process for manufacturers to improve product quality and competitiveness. This Equipment is widely used in power electronics, computers, communications, bio-pharmaceutical and other fields. The aging room usually consists of retaining structure, duct system, a control system, an indoor test structure.
Feature
1: The aging process can be fully automatic control, with some abnormal self-processing functions, which make the operation automatic and simple.
2: With multiple protection functions, it is safe and reliable.
4: Electric heat anti-dry, when the fan is faulty or the temperature inside the air duct is too high, the power of the circulating system is automatically cut off, and the alarm is alarmed.
5: The electric heating is linked with the fan. When the fan fails to start, the heater cannot be started separately.
When it is turned off, the electric heating and the circulating fan are closed at the same time to prevent the electric heat wire from dry burning:
6: Over-temperature sound and light alarm function: When the over-temperature condition occurs during the aging process, the red light is on and the buzzer sounds.
|
Model |
JQHTA-08 |
JQHTA-12 |
JQHTA-16 |
JQHTA-25 |
JQHTA-34 |
JQHTA-40 |
|
Inner size (cm) |
200*200*200 |
200*300*200 |
220*350*210 |
300*400*210 |
340*480*220 |
400*500*220 |
|
Outer size (cm) |
230*360*240 |
230*460*240 |
246*520*250 |
330*560*250 |
370*660*270 |
430*660*270 |
|
Volume (L) |
8.0m³ |
12m³ |
16m³ |
25m³ |
34m³ |
40m³ |
|
Temp Range |
RT+10°C ~+80°C /100°C/120°C/150°C/180°C |
|||||
|
Humidity range |
20 % to 98% RH(Humidity can be chosen) |
|||||
|
Temp Fluctuation |
±0.5℃ |
|||||
|
Temp uniformity |
±2℃ |
|||||
|
Temp Heating rate |
3℃/min or customized |
|||||
|
Exterior material |
Standard color steel plate for walk in chamber/ |
|||||
|
Interior material |
Stainless steel plate SUS304 |
|||||
|
Controller |
TW DELTA PLC,7 " color touch screen control |
|||||
|
Configuration interface |
With USB , WLAN, RS232 port ,Test Port APP function is optional |
|||||
|
Protector |
South Korea imported Autonics over temperature protector , South Korea rainbow dry burning protector,Humidification protection ,water shortage protection ,overload protection ,high voltage protection , leakage protection . When the equipment fails , automatically stops running . |
|||||
|
Power supply |
AC380V @50Hz |
|||||
