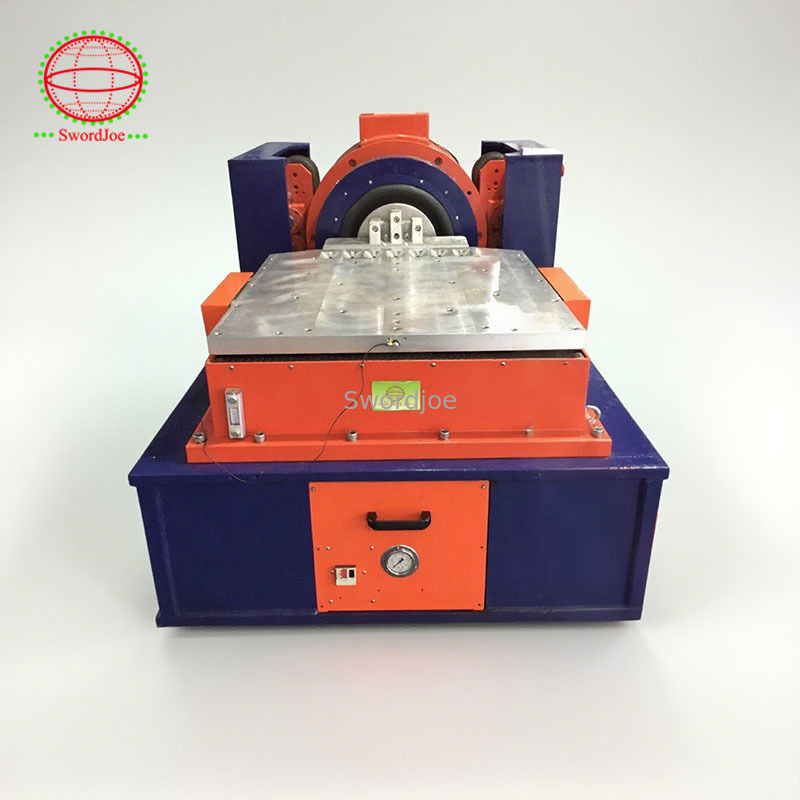

Electron Dynamic Vibration Test Machine TV Home Appliance Vibration Test
Product Details
| Frequency: | 2000Hz | Sine Force: | 3kN /300kg/674.43lbf |
|---|---|---|---|
| Random Force: | 3kN /300kg/674.43lbf | Shock Force: | 6kN /600kg/1348.86lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 120KG |
| Moving Parts Mass: | 3KG | Armature Diameter: | 150mm |
| Highlight |
dynamic vibration test machine,home appliance vibration tester,vibration test table for TV |
||
Product Description
| Frequency | 2000Hz |
| Sine force | 3kN /300kg/674.43lbf |
| Random force | 3kN /300kg/674.43lbf |
| Shock force | 6kN /600kg/1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4")/76mm (3")/51mm (2") |
| Maximum load | 120KG |
| Moving parts mass | 3KG |
| Armature diameter | 150mm |
- Purpose: To evaluate a TV's durability and reliability by simulating real-world environmental stresses. This helps identify defects related to shipping, handling, and long-term use.
- Equipment: The test uses a vibration test system, which includes a powerful electrodynamic shaker (often driven by an amplifier) and a vibration control system. Sensors, such as accelerometers, are used to measure the TV's response.
- Test types:
- Random Vibration: Simulates the chaotic, broad-spectrum vibrations of real-world environments, such as those experienced in a vehicle or during handling.
- Sinusoidal Vibration: Involves applying a continuous, single-frequency vibration that is swept up and down to pinpoint specific resonance frequencies.
- Procedure:
- The TV is mounted onto a shaker table, often the principal axes of the TV.
- A vibration profile is applied, which could involve random or sinusoidal frequencies, with parameters like acceleration, velocity, and frequency carefully controlled.
- Vibration is applied along each of the three perpendicular axes.
- The response of the TV is monitored using sensors to check for any structural damage, performance issues, or premature failures.
- Forced air cooling system
- 1:1 ratio for random and sinusoidal excitation force
- Displacement peak-to-peak value up to 100mm
- Trunnion airbag with excellent isolation effect
- Double magnetic circuit design with low magnetic flux leakage and uniform magnetic field
- Sinusoidal excitation force range: 1kN ~ 70kN
- Double sinusoidal impact force (three times more than 2 tons)
- Light dynamic coil with optimized design and strong vibration resistance
- Center airbag with strong carrying capacity and excellent low frequency performance
- Configurable horizontal slide
- High-efficiency cooling fan with low noise operation
- Frequency range starting from 1Hz
| Parameter | Value |
|---|---|
| Shaker Model | JQA-202-335/JQA-203-335 |
| Frequency Range (Hz) | 5~3000 |
| Rated sinusoidal force (KN) | 20 |
| Shock force (KN) | 40/60 |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mmp-p) | 51/76 |
| Max. load (kg) | 300 |
| Vibration isolation frequency(Hz) | 2.5 |
| Shaking table type | JQ-20 |
| Moving parts weight (kg) | 23 |
| Armature diameter (φmm) | 335 |
| Allowable eccentric moment (N x m) | 490 |
| Outer dimension (W*H*D)(mm) | 1080*990*860 |
| Shaker weight (kg) | 1600 |
| Power amplifier model | PA-20 |
| Max. output power (KVA) | 20 |
| Amplifier Size (W*H*D) | 550*1750*850 |
| Power amplifier Weight (kg) | 410 |
| Power Amplifier working model | Switch |
| System power consumption (KVA) | 40 |
| Cooling method | Forced air cooling |
| Fan model | FJ-3000 |
| Rated flow (m³/min) | 40 |
| Rated wind pressure (kPa) | 3.5/8.8 |
| Fan power (KW) | 7.5 |
