Modular or Integrated WALK-IN CHAMBER

Brand Name:	Jianqiao
Model Number:	JQWI-2000
MOQ:	1
Delivery Time:	5WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Climatic Test Chamber Catal...25.pdf

Humidity Range:

30~98% R.H (complex)

Weight(kg):

Subject To The Actual Weight

Interior Material:

Stainless Steel Plate Sus304

Temp.Range:

-70℃/-40℃~85℃/120℃/150℃/180℃ Customized

Spray Method:

Continuous Spray

Design:

Modular

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

modular walk-in test chamber

integrated walk-in environmental chamber

walk-in chamber with warranty

Product Description

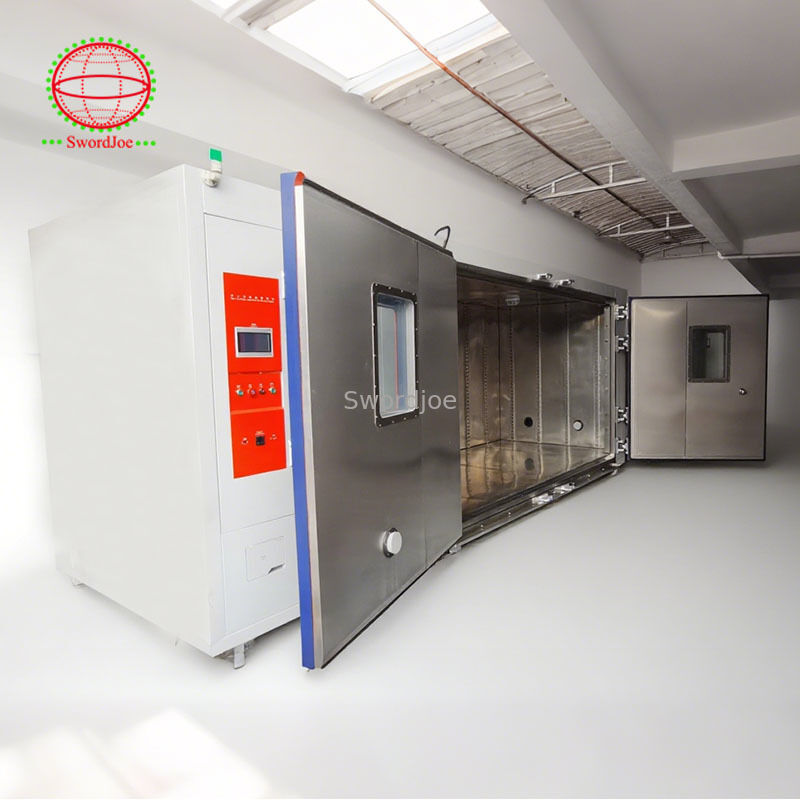

Modular or Integrated Walk-In Chamber

Walk-in chambers feature solid, one-piece construction with fiberglass insulation and an angle-iron frame. The stainless steel interior liner is reinforced and continuously welded, including leak-testing for integrity.

Temperature range up to 150°C
Temperature-cycling faster than 10°C/min
Capable of long-term 85°/85% tests

Conventional chambers, like our JQWI models, are built using panels with foam insulation that cannot withstand higher temperatures and are more susceptible to leaks at the seams under extreme conditions, such as fast temperature cycling.

The angle-iron frame provides enough structural strength to allow a full-opening door for easy loading of large arrays without restriction. A full-opening door can also allow floor-space saving over panel chambers.

Comparison

Note: Actual change rate capability is determined by selection of heating/cooling system based on your requirement.

Easy-to-use Programmer

The JQ-2700 touch-screen controller makes running an environmental test chamber a breeze. The full-color, touch-screen interface is remarkably easy to use and understand. The JQ-2700 Touch Screen Controller can be managed remotely via our Ethernet/LAN-based Web Controller or RS-232 serial port.

Features for Solid Walk-in Chambers

Solid-construction chamber is a one-piece welded structure with six inches of fiberglass insulation and a 304 stainless steel interior
Full-opening door(s) with heated windows
One 4" (100mm) diameter cable port with silicone plug

Refrigeration and Plenum

Modular or Integrated Air Plenum with cooling coil, wire heaters, and two circulator blowers
Non-CFC refrigeration system using Copeland Discus or Scroll compressors
Automatic water regulator controls water usage on water cooled models
Humidity system includes steam generator and dehumidification coil

System Controls

Instrumentation console mounted to the right of the chamber door
Three levels of overheat protection including an independent, adjustable sensor
Exclusive Programmer

Feature	Benchtop Chamber	Walk-in Chamber
Capacity	Limited	Large-scale
Access	External only	Walk-in for easy loading
Test Speed	One-by-one	Batch testing
ROI	Slower	Faster, better efficiency

Bottom line? Walk-in chambers are ideal if you want to increase capacity, improve test control, and boost productivity.

Technical Specifications

Model	JQ-8000C	JQ-12000C	JQ-16000C	Non-standard customization
Volume	8 cubic meters	12 cubic meters	16 cubic meters	Non-standard customization
Dimensions of working chamber (mm)	2000×2000×2000	3000×2000×2000	4000×2000×2000	Non-standard customization

Chamber temperature: Salt water test method (NSS AASS) 35°C ±1°C / corrosion resistance test method (CASS) 50°C ±1°C / 10°C~70°C (composite)
Pressure tank temperature: Salt water test method (NSS AASS) 47°C ±1°C / corrosion resistance test method (CASS) 63°C ±1°C
Saline concentration: Add 0.26 g of copper chloride per liter in 5% sodium chloride solution or 5% sodium chloride solution
Humidity range: 30~98% R.H (complex)
Compressed air pressure: 1.00 ±0.01 kgf/cm²
Amount of spray: 1.0~2.0ml/80 cm²/h (Collect at least 16 hours, take the average)
Chamber relative humidity: Over 85%
pH value: 6.5~7.2 (NSS AASS) / 3.0~3.2 (CASS)
Spray method: Continuous spray
Power supply: AC380V Φ 3 phase 28.6KW (JQ-8000C) / 30.6KW (JQ-12000C) / 32.6KW (JQ-16000C) / AC380V Φ 3 phase (Custom)
