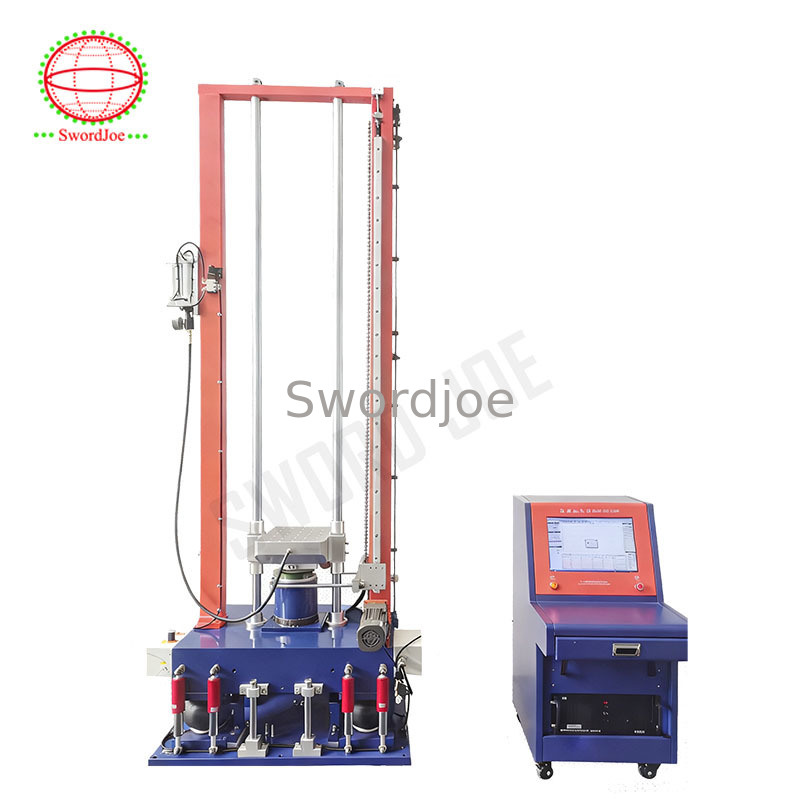

IS-25 Pneumatic Mechanical Shock Testing System For Transducer Industry
Product Details
| Features: | Digital Control | Name: | Shock Test System |
|---|---|---|---|
| Control And Measurement System: | OKS01 | Power Requirements: | 220V±10% Single Phase AC 50Hz 2kVA |
| Standard: | GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200 | ||
| Highlight |
Pneumatic shock test system for transducers,Mechanical shock testing system industrial,IS-25 transducer shock test system |
||
Product Description
- Shock Simulation: Reproduces real-world shock scenarios, such as drops, collisions, or transportation vibrations, in a controlled environment.
- Performance Testing: Evaluates whether products (e.g., electronics, automotive parts) maintain functionality and structural integrity after shock exposure.
- Data Acquisition: Records key parameters like shock acceleration, duration, and direction to quantify the impact intensity and product response.
| Type | Working Principle | Typical Application Scenarios |
|---|---|---|
| Drop Tester | Lifts the product to a set height and drops it freely onto a specified surface (e.g., steel, concrete). | Testing small consumer electronics (phones, tablets), packaging, and small mechanical parts. |
| Pendulum Tester | Uses a pendulum to strike the product with a fixed force and speed, simulating lateral or frontal impacts. | Evaluating the impact resistance of automotive components (bumpers, glass) and industrial equipment casings. |
| Shaker Tester | Drives a platform via an electromagnetic or hydraulic system to generate short, high-acceleration shock pulses. | Testing precision instruments (sensors, aerospace components) and large equipment (servers, industrial controllers). |
- Shock Acceleration: The maximum acceleration the tester can generate, usually measured in g-force (g) (1g ≈ 9.8 m/s²).
- Shock Duration: The length of time the shock pulse lasts, typically ranging from 0.1 ms -100 ms; shorter durations correspond to more intense, instantaneous impacts.
- Shock Pulse Shape: The waveform of the shock, with the most common types being half-sine wave (simulating soft impacts), square wave (simulating rigid collisions), and sawtooth wave (simulating sudden stops).
- Electronics: Testing smartphones, laptops, and circuit boards to ensure they survive drops or transportation shocks.
- Automotive: Verifying the durability of airbags, sensors, and engine parts under collision or vibration conditions.
- Aerospace: Validating the resistance of avionics and satellite components to launch or landing shocks.
- Packaging: Assessing whether packaging materials (cartons, foam) can protect products during shipping and handling.
| Model | IS5 | IS10 | IS25 | IS50 | IS100 | IS200 | IS300 |
|---|---|---|---|---|---|---|---|
| Maximum test load (kg) | 5 | 10 | 25 | 50 | 100 | 200 | 300 |
| Table size (mm*mm) | 120*120 | 200*200 | 350*350 | 500*500 | 700*700 | 750*750 | 800*800 |
| Shock waveform (m/s²) | |||||||
| Half sine waveform | 100~30000 | 100~20000 | 100~10000 | 100~6500 | 150~6000 | 150~5000 | 150~3500 |
| After peak saw-tooth | 100~1000 | 100~1000 | 100~1000 | 100~1000 | 100~1000 | 150~1000 | 150~1000 |
| Trapezoidal wave | 150~1500 | 150~1500 | 150~1200 | 150~1200 | 150~1200 | 150~1000 | 100~1000 |
| Pulse duration time (m/s) | |||||||
| Half sine waveform | 0.5~20 | 0.6~20 | 0.8~20 | 1.5~20 | 2~20 | 2.5~20 | 3~20 |
| After peak saw-tooth | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Trapezoidal wave | 6~20 | 6~20 | 6~20 | 6~25 | 6~25 | 6~25 | 6~25 |
| Maximum impact distance (mm) | 1550 | 1500 | 1400 | ||||
| Anti-secondary impact device | Air pressure friction brake | Hydraulic friction brake | |||||
| Table weight (kg) | 1300 | 1500 | 2800 | 3800 | 4350 | 4900 | 6250 |
| Dimensions (L*W*H)(mm) | 900*450*2600 | 1000*500*2700 | 1100*800*2800 | 1100*750*2800 | 1350*850*2850 | 1420*920*2900 | 1480*1000*2950 |
Product Highlights
IS-25 Pneumatic Mechanical Shock Testing System For Transducer Industry A mechanical shock tester is a device used to simulate and measure the impact of sudden mechanical shocks on products, verifying their ability to withstand such forces without damage. Core Functions Shock Simulation: Reproduces ...
