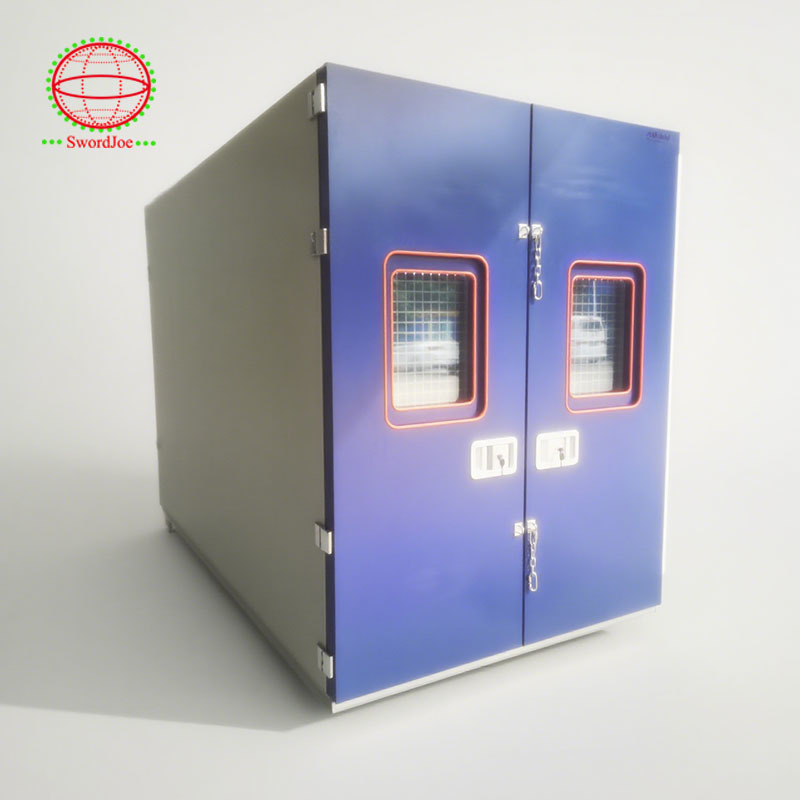

High Temperature Salt Spray Test Chamber Machine Provide Accurate And Results

Product Description

Salt Spray Test Chamber

Salt mist testing evaluates the corrosion resistance of parts and products covered with metal materials, plated films, or paint films. Salt mist combined-cyclic testing is a widely used method for reliability evaluation, combining salt mist testing with conditions such as dry, damp, low temperature, or saltwater immersion.

This equipment simulates or accelerates market conditions for products used in salt-damaged areas (from sea salt particles or deicing salt in snowy regions). It's ideal for evaluating materials and components such as vehicles, vehicle exterior materials, undercarriage components, or steel.

Available Systems

Salt Mist Test System
Large Capacity Salt Mist Combined Cyclic Test System

Key Features

Supports combined cycles including high-temperature (150°C) dry process
Includes low-temperature (-20°C) freeze process
Salt Mist Test System installed at Utsunomiya Test Center

Technical Specifications

Model	JQ-60A/B	JQ-90A/B	JQ-120A/B	JQ-160A/B	JQ-200A/B
Chamber inner size WDH (mm)	600400450	900500600	1200500800	16005001000	20006001200
Chamber outer size WDH (mm)	11501090672	14501200842	208012581240	248015201450	290015501650
Chamber temperature	Salt water test method (NSS ACSS) 35°C ±1°C / Corrosion resistance test method (CASS) 50°C ±0.1°C
Pressure tank temperature	Salt water test method (NSS ACSS) 47°C ±1°C / Corrosion resistance test method (CASS) 63°C ±0.1°C
Chamber volume	108L	270L	480L	800L	1440L
Solvent tank volume	15L	25L	40L	40L	40L
Saline concentration	Add 0.26g of copper chloride per liter in 5% sodium chloride solution or 5% sodium chloride solution
Compressed air pressure	1.00±0.01kgf/cm²
Amount of spray	1.0~2.0ml/80cm²/h (Collect at least 16 hours, take the average)
pH value	6.5~7.2 (NSS ACSS) / 3.0~3.2 (CASS)
Spray method	Continuous spray / Optional intermittent spray
Power	AC220V1 10A	AC220V1 15A	AC220V1 20A	AC220V1 20A	AC220V1 30A
