Industrial Environmental High Temperature Test Room For Material Aging Climatic Test Chamber

Brand Name:	Jianqiao
Model Number:	JQHTA
MOQ:	1
Delivery Time:	5 weeks
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Climatic Test Chamber Catal...25.pdf

Temp Heating Rate:

3℃/min Or Customized

Temp Fluctuation:

±0.5℃

Interior Material:

Stainless Steel Plate SUS304

Power Supply:

AC380V 50Hz

Humidity Range:

20% To 98% RH

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

Environmental High Temperature Test Room

Industrial High Temperature Test Room

Industrial Climatic Test Chamber

Product Description

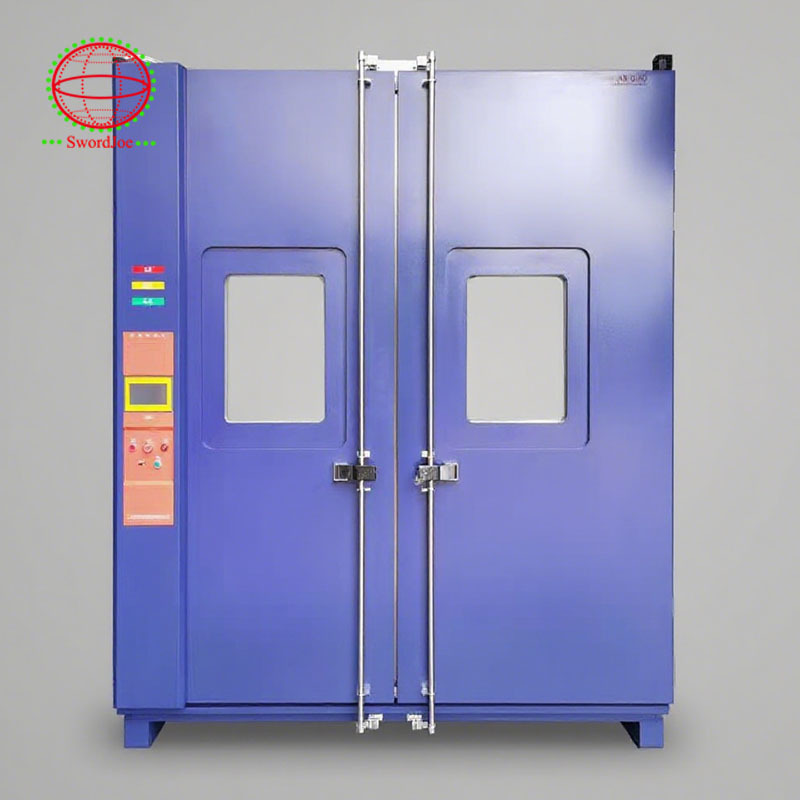

High Temperature Testing Room

An environmental high-temperature test room, also known as a temperature chamber or climatic chamber, is a controlled enclosure used to simulate high-temperature environments for testing the performance and reliability of materials, products, and electronic devices.

Key Features and Functionality

Temperature Regulation: Maintains specific high temperatures or ranges with precise control and monitoring.
Heating Systems: Utilizes electric heaters and other mechanisms to achieve desired temperature levels.
Insulation: Effective insulation prevents heat loss and maintains stable temperatures.
Temperature Monitoring: Sensors and controllers adjust heating systems to maintain set temperatures.
Environmental Simulation: Some models can simulate additional conditions like humidity for comprehensive testing.

Applications

Materials Testing: Evaluating performance under high temperatures including tensile, compression, and flexure testing.
Product Reliability: Assessing durability of electronic components and devices in high-heat environments.
Quality Control: Ensuring products meet standards for high-temperature performance.
Research & Development: Studying heat effects on materials and devices in controlled environments.

Available Models

Model	JQHTA-08	JQHTA-12	JQHTA-16	JQHTA-25	JQHTA-34	JQHTA-40
Inner size (cm)	200200200	200300200	220350210	300400210	340480220	400500220
Outer size (cm)	230360240	230460240	246520250	330560250	370660270	430660270
Volume (L)	8.0m³	12m³	16m³	25m³	34m³	40m³

Technical Specifications

Temp Range: RT+10°C ~+80°C /100°C/120°C/150°C/180°C

Humidity range: 20% to 98% RH (Humidity can be chosen)

Temp Fluctuation: ±0.5℃

Temp variation in space: ±2℃

Temp Heating rate: 3℃/min or customized

Exterior material: Standard color steel plate for walk in chamber/cold-roll steel sheets with coating/Laminating metal sheet

Interior material: Stainless steel plate SUS304

Controller: TW DELTA PLC,7" color touch screen control

Configuration interface: With USB, WLAN, RS232 port, Test Port APP function is optional

Protector: South Korea imported Autonics over temperature protector, South Korea rainbow dry burning protector, Humidification protection, water shortage protection, overload protection, high voltage protection, leakage protection

Power supply: AC380V @50Hz
