Home /Products/High Temperature Aging Chamber/Precision High Temperature Aging Chamber Testing Room 3℃/Min Temp Heating Rate

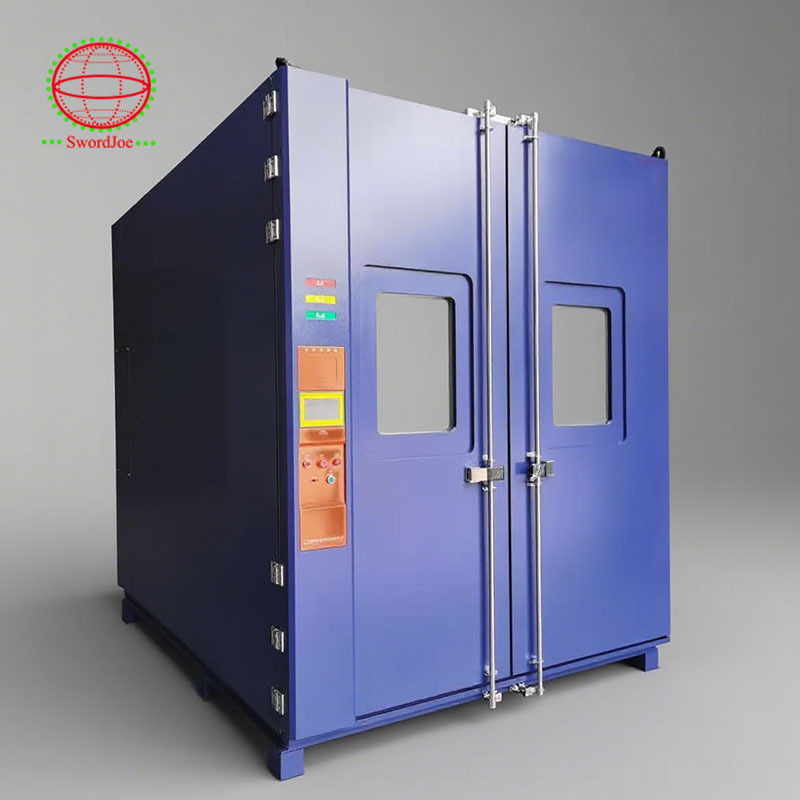

Precision High Temperature Aging Chamber Testing Room 3℃/Min Temp Heating Rate

1
MOQ
Precision High Temperature Aging Chamber Testing Room 3℃/Min Temp Heating Rate
Features Gallery Product Description Chat Now
Features
Specifications
Temp Heating Rate: 3℃/min Or Customized
Temp Fluctuation: ±0.5℃
Interior Material: Stainless Steel Plate SUS304
Power Supply: AC380V 50Hz
Humidity Range: 20% To 98% RH
Highlight:

Precision High Temperature Aging Chamber

,

High Temperature Aging Chamber 3℃/Min

,

Precision High Temperature Testing Room
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQHTA
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5 weeks
Payment Terms: T/T
Supply Ability: 300
Product Description
High Temperature Testing Room
An environmental high-temperature test chamber is a specialized piece of equipment designed to simulate and test the effects of elevated temperatures on materials, components, or products. These chambers assess performance, durability, and reliability under extreme heat conditions, ensuring items can withstand real-world environmental stresses.
Purpose and Functionality
  • Simulating extreme heat: Creates controlled high-temperature environments to evaluate material reactions to heat stress
  • Assessing product performance: Determines if products maintain functionality and integrity under high temperatures
  • Ensuring reliability: Identifies potential weaknesses or failures before market release
Operational Features
  • Temperature regulation: Precision heating elements and control systems maintain specified temperatures
  • Forced air circulation: Fans ensure uniform temperature distribution throughout the chamber
  • Monitoring and control: Advanced sensors and systems maintain desired conditions
Industry Applications
  • Aerospace: Testing aircraft components for high-altitude and engine environment resistance
  • Automotive: Evaluating engine parts and electronic components for heat tolerance
  • Electronics: Assessing circuit boards and components under heat stress
  • Materials science: Studying high-temperature material properties and limitations
  • Quality control: Verifying products meet temperature resistance specifications
Key Technical Features
  • Temperature range: From moderate to extremely high settings
  • Precision control: ±0.5℃ accuracy for reliable results
  • Thermal cycling: Rapid temperature change capability
  • Insulated construction: Prevents heat loss for stable conditions
  • Observation window: Allows visual inspection during operation
  • Data systems: Advanced logging and control for parameter recording
Technical Specifications
Model JQHTA-08 JQHTA-12 JQHTA-16 JQHTA-25 JQHTA-34 JQHTA-40
Internal Dimensions (cm) 200×200×200 200×300×200 220×350×210 300×400×210 340×480×220 400×500×220
External Dimensions (cm) 230×360×240 230×460×240 246×520×250 330×560×250 370×660×270 430×660×270
Volume 8.0 m³ 12 m³ 16 m³ 25 m³ 34 m³ 40 m³
Performance Parameters
  • Temperature range: +10℃ to +80℃/100℃/120℃/150℃/180℃
  • Humidity range: 20% to 98% RH (optional)
  • Temperature stability: ±0.5℃
  • Temperature uniformity: ±2℃
  • Heating rate: 3℃/minute (customizable)
Construction Details
  • Exterior material: Powder-coated cold-rolled steel plate/film-coated metal panel
  • Interior material: SUS304 stainless steel plate
Control System
  • Controller: Delta TW PLC with 7" color touch screen
  • Interfaces: USB, WLAN, RS232 ports with optional APP functionality
Safety Features
  • Korean Autonics over-temperature protector
  • Korean Rainbow dry-burn protector
  • Humidification protection
  • Water shortage protection
  • Overload protection
  • High voltage protection
  • Leakage protection
  • Automatic shutdown during malfunctions
Power Requirements

AC 380V @ 50Hz
