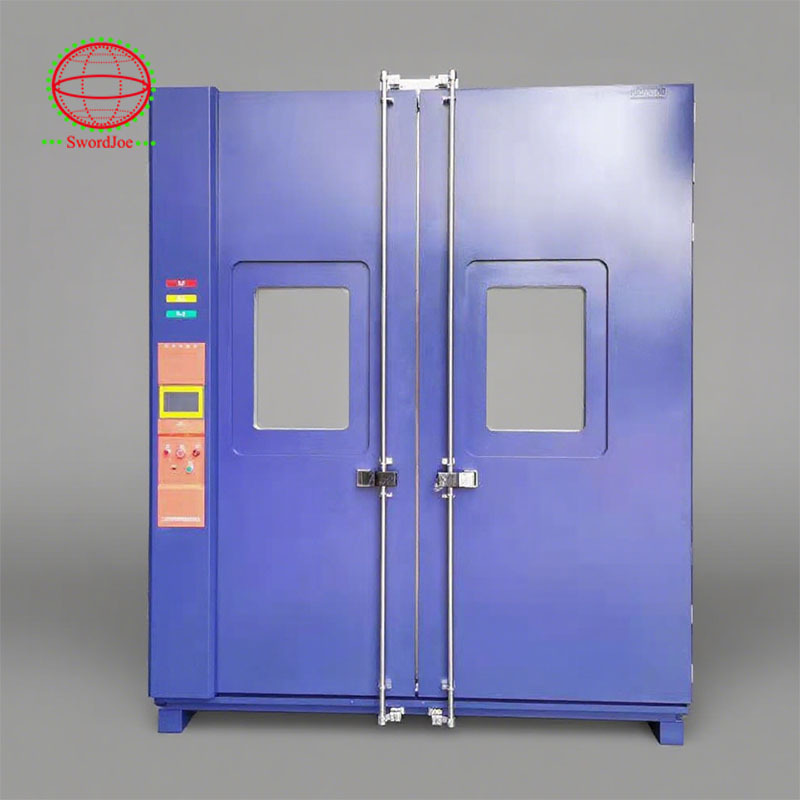

20% - 98% RH Humidity range High Temperature Aging Chamber Stainless Steel Plate SUS304
Product Details
| Temp Heating Rate: | 3℃/min Or Customized | Temp Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Interior Material: | Stainless Steel Plate SUS304 | Power Supply: | AC380V 50Hz |
| Humidity Range: | 20% To 98% RH | ||
| Highlight |
98% RH High Temperature Aging Chamber,20% RH High Temperature Aging Chamber,High Temp Aging Chamber Stainless Steel |
||
Product Description
- A temperature-controlled enclosure that can simulate and maintain specific high temperatures
- An environmental testing device used to evaluate product or material performance under thermal stress
- Utilizes a combination of heating and cooling systems (such as electric heaters and refrigeration systems) to achieve and maintain desired temperatures
- May include humidity control systems to simulate different environmental conditions
- Controllers monitor temperature and humidity to ensure they remain within specified test parameters
Performance Assessment: Understand how product performance changes under thermal stress
Material Testing: Study material behavior at high temperatures, including strength, durability, and resistance to degradation
Product Development: Test prototypes and ensure they meet design requirements for high-temperature environments
Failure Analysis: Determine root causes of failures occurring at high temperatures
- Electronics: Testing components, circuit boards, and complete devices for heat resistance
- Automotive: Evaluating performance of vehicle components like engines in high-temperature conditions
- Aerospace: Testing materials and components used in spacecraft or aircraft engines
- Plastics & Polymers: Assessing heat resistance and stability of plastic materials
- Construction Materials: Evaluating performance of building materials in high-temperature environments
- Medical Devices: Testing durability and functionality of medical equipment under thermal stress
- Walk-in Chambers: Large enclosures capable of accommodating entire vehicles or large components
- Benchtop Chambers: Smaller units for testing individual components or smaller products
- High-Power Series: Chambers designed to meet strict automotive industry standards with extended temperature control and rapid temperature change capabilities
- High Temperature Test Facilities (HTTF): Specialized facilities for testing nuclear reactor components at high temperatures
- Freezer Chambers: Units capable of reaching extremely low temperatures, sometimes combined with high-temperature capabilities
| Model | JQHTA-08 | JQHTA-12 | JQHTA-16 | JQHTA-25 | JQHTA-34 | JQHTA-40 |
|---|---|---|---|---|---|---|
| Internal Dimensions (cm) | 200×200×200 | 200×300×200 | 220×350×210 | 300×400×210 | 340×480×220 | 400×500×220 |
| External Dimensions (cm) | 230×360×240 | 230×460×240 | 246×520×250 | 330×560×250 | 370×660×270 | 430×660×270 |
| Volume | 8.0 m³ | 12 m³ | 16 m³ | 25 m³ | 34 m³ | 40 m³ |
| Temperature Range | +10℃ to +80℃/100℃/120℃/150℃/180℃ | |||||
| Humidity Range | 20% to 98% RH (optional humidity control) | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Temperature Uniformity | ±2℃ | |||||
| Heating Rate | 3℃/min (customizable) | |||||
| Exterior Material | Powder-coated cold rolled steel plate/metal plate with film | |||||
| Interior Material | SUS304 stainless steel plate | |||||
| Controller | Taiwan Delta PLC with 7" color touch screen | |||||
| Interface Configuration | USB, WLAN, RS232 ports, optional test port APP functionality | |||||
| Safety Protections | Korean Autonics over-temperature protector, Korean Rainbow dry-burning protector, humidity protection, water shortage protection, overload protection, high voltage protection, leakage protection. Automatic shutdown when faults occur. | |||||
| Power Supply | AC 380V @ 50Hz | |||||
