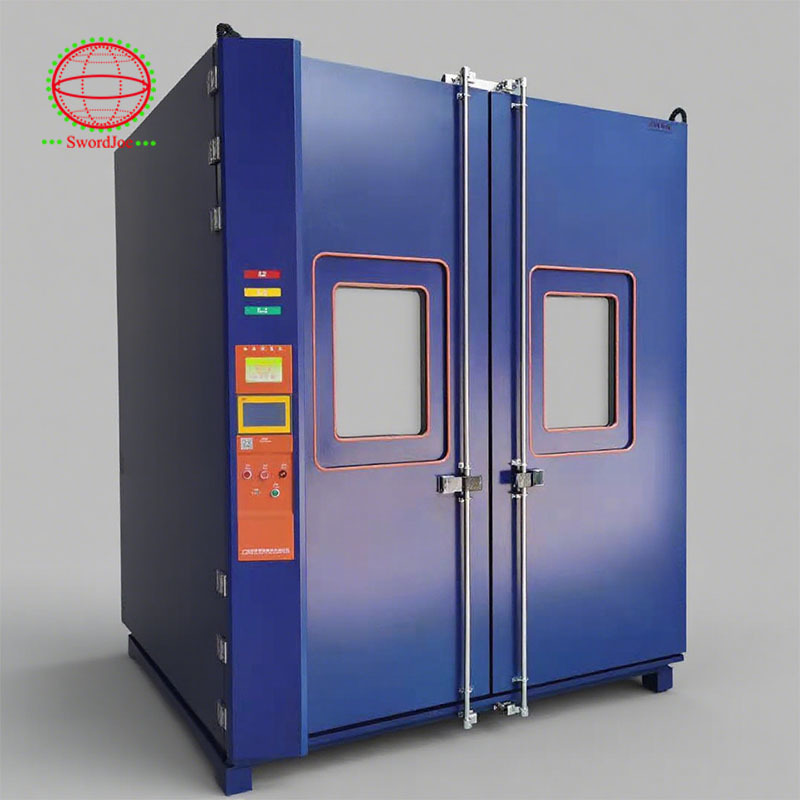

Environmental High Temperature Testing Chamber AC380V 50Hz Customized

Brand Name:	Jianqiao
Model Number:	JQHTA
MOQ:	1
Delivery Time:	5 weeks
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Climatic Test Chamber Catal...25.pdf

Temp Heating Rate:

3℃/min Or Customized

Temp Fluctuation:

±0.5℃

Interior Material:

Stainless Steel Plate SUS304

Power Supply:

AC380V 50Hz

Humidity Range:

20% To 98% RH

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

Environmental High Temperature Testing Chamber

High Temperature Testing Chamber AC380V

High Temperature Testing Chamber 50Hz

Product Description

High Temperature Testing Room

A high-temperature test room, also known as a temperature chamber or environmental chamber, is a specialized enclosure used to test how products or materials react to high temperatures. These chambers are designed to create controlled, extreme heat conditions to evaluate product reliability and performance under stress.

Product Overview

What It Is:

A temperature-controlled enclosure that simulates and maintains specific high temperatures
Environmental testing equipment for assessing product/material behavior under heat stress

How It Works:

Utilizes heating and cooling systems to achieve desired temperatures
May include humidity control systems for comprehensive environmental simulation
Precision controllers maintain specified temperature and humidity parameters

Key Applications

Reliability Testing: Assess product longevity at high temperatures

Performance Evaluation: Monitor product behavior under heat stress

Material Testing: Study material strength, durability, and heat resistance

Product Development: Validate prototypes for high-temperature environments

Failure Analysis: Determine root causes of high-temperature failures

Industry Applications

Electronics: Testing components, circuit boards, and devices
Automotive: Evaluating engine and component performance
Aerospace: Testing materials for spacecraft/aircraft engines
Plastics/Polymers: Assessing heat resistance and stability
Construction: Evaluating building material performance
Medical Devices: Testing durability under heat stress

Available Models

Model	JQHTA-08	JQHTA-12	JQHTA-16	JQHTA-25	JQHTA-34	JQHTA-40
Internal Dimensions (cm)	200×200×200	200×300×200	220×350×210	300×400×210	340×480×220	400×500×220
External Dimensions (cm)	230×360×240	230×460×240	246×520×250	330×560×250	370×660×270	430×660×270
Volume	8.0 m³	12 m³	16 m³	25 m³	34 m³	40 m³

Technical Specifications

Temperature Range: +10℃ to +80℃/100℃/120℃/150℃/180℃
Humidity Range: 20% to 98% RH (optional)
Temperature Fluctuation: ±0.5℃
Temperature Uniformity: ±2℃
Heating Rate: 3℃/minute (customizable)
Exterior Material: Powder-coated cold-rolled steel sheet/metal plate
Interior Material: SUS304 stainless steel plate
Controller: Delta PLC with 7" color touch screen
Interfaces: USB, WLAN, RS232 ports, optional test port APP
Safety Protections: Autonics over-temperature protector, dry-burn protector, humidity protection, water shortage protection, overload protection, high voltage protection, leakage protection
Power Supply: AC 380V @ 50Hz
