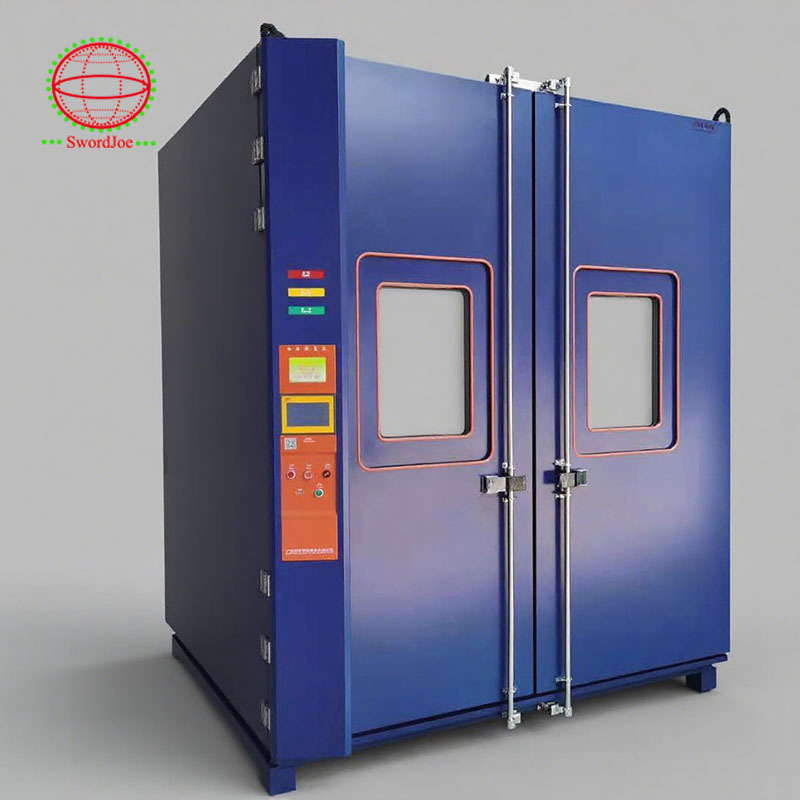

Industrial High Temperature Aging Chamber For Materials Automotive Parts
Product Details
| Temp Heating Rate: | 3℃/min Or Customized | Temp Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Interior Material: | Stainless Steel Plate SUS304 | Power Supply: | AC380V 50Hz |
| Humidity Range: | 20% To 98% RH | ||
| Highlight |
Industrial High Temperature Aging Chamber,Materials High Temperature Aging Chamber |
||
Product Description
- Purpose: Evaluates material and product behavior under high-temperature conditions to identify potential weaknesses or degradation points.
- Applications: Performance and durability testing for materials, electronic components, automotive parts, and various industrial products.
- Working Principle: Utilizes advanced heating systems to achieve target temperatures with precision control systems to maintain and monitor test parameters.
- Industry Applications: Aerospace, automotive, consumer electronics, food processing, pharmaceuticals, packaging, and telecommunications.
- Benefits: Enables manufacturers to detect potential defects, enhance product quality, and ensure reliability in high-temperature operating environments.
| Model | JQHTA-08 | JQHTA-12 | JQHTA-16 | JQHTA-25 | JQHTA-34 | JQHTA-40 |
|---|---|---|---|---|---|---|
| Internal Dimensions (cm) | 200×200×200 | 200×300×200 | 220×350×210 | 300×400×210 | 340×480×220 | 400×500×220 |
| External Dimensions (cm) | 230×360×240 | 230×460×240 | 246×520×250 | 330×560×250 | 370×660×270 | 430×660×270 |
| Volume | 8.0 m³ | 12 m³ | 16 m³ | 25 m³ | 34 m³ | 40 m³ |
- Temperature Range: Ambient +10℃ to +180℃ (multiple setpoint options available)
- Humidity Range: 20% to 98% RH (optional humidity control)
- Temperature Stability: ±0.5℃
- Temperature Uniformity: ±2℃
- Heating Rate: 3℃/minute (customizable)
- Exterior Material: Color steel plate/cold-rolled steel coating/laminated metal panel
- Interior Material: SUS304 stainless steel plate
- Control System: Delta PLC with 7" color touch screen interface
- Connectivity: USB, WLAN, RS232 ports with optional APP functionality
- Safety Features: Autonics over-temperature protection, dry-burn protection, humidity protection, water shortage protection, overload protection, high voltage protection, and leakage protection with automatic shutdown
- Power Supply: AC 380V @50Hz
Product Highlights
High Temperature Aging Chamber A high-temperature aging chamber is specialized equipment designed to simulate and evaluate the effects of elevated temperatures on materials, products, or components. These precision chambers create controlled high-temperature environments to test durability and ...
