Vibration Shaker Head Expander FEA Technology Vibration Test Fixtures

Vibration Shaker Head Expander FEA Technology Vibration Test Fixtures
Features Gallery Product Description Chat Now
Features
Specifications
Name: High Quality Head Expander
Frequency: 2 KHz
Custom: Shapes And Sizes
Characteristics: FEA Technology
Types: Guided / Unguided
Highlight:

Shaker Head Expander

,

Head Expander FEA

,

Shaker Vibration Test Fixtures
Basic Infomation
Brand Name: Jianqiao
Model Number: SZ-1010
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Product Description

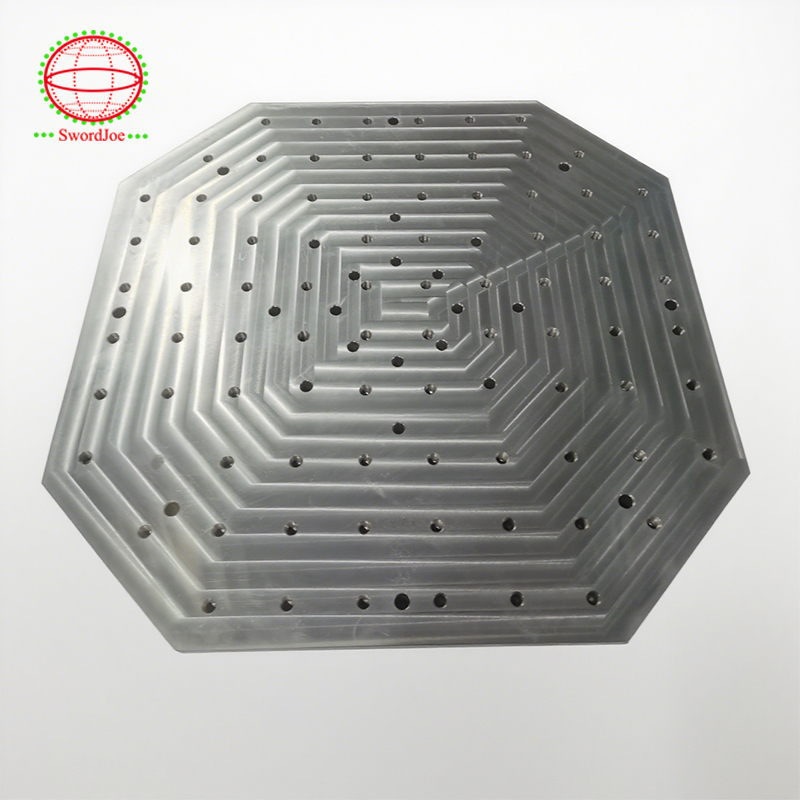

Head Expander for Vibration Shaker
Head expanders provide a larger work surface for testing, enabling evaluation of larger samples or multiple samples simultaneously. These essential shaker accessories are designed using FEM analysis and advanced manufacturing technologies to ensure optimal performance.
Material Options
ALUMINIUM HEAD EXPANDERS:
The most popular choice due to their lightweight properties, cost-effectiveness, and ease of machining.
MAGNESIUM HEAD EXPANDERS:
Significantly lighter than aluminum with similar dynamic behavior, but more expensive and difficult to machine. Recommended when minimizing mass is critical.
Innovative Redesign Features
Our R&D department has developed an improved head expander design featuring:
  • New rib profiles for enhanced performance
  • Option to combine aluminum and magnesium components
  • Four key advantages over standard head expanders:
    • Lower profile for easier setup and climate chamber testing
    • Reduced weight
    • Improved dynamic behavior
    • No cost increase
All Centrotecnica head expanders include technical documentation verifying their high production standards.
Quality Assurance
Modal analysis: Each head expander undergoes hammer testing to identify resonance frequencies and determine optimal control strategies, with results documented in the test report.
Technical Specifications
Model Vertical Head Expander (Square) Effective Mass (kg) Upper Frequency Limit (Hz)
CZ0303 7 | 8 | 10 2000 2000 | 2000 | 2000
CZ0404 12 | 13 | 21 2000 2000 | 2000 | 2000
CZ0505 23 | 29 | 32 | 35 2000 2000 | 2000 | 2000 | 2000
CZ0606 35 | 38 | 40 | 40 | 48 1000 1500 | 2000 | 2000 | 2000
CZ0707 40 | 43 | 60 | 70 | 80 1000 1000 | 2000 | 2000 | 2000
CZ0808 60 | 60 | 70 | 80 | 85 | 100 | 100 800 1000 | 1200 | 1300 | 1200 | 1500 | 1500
CZ0909 80 | 95 | 95 | 105 | 120 | 120 500 1000 | 1000 | 1000 | 1000 | 1000
CZ1010 73 | 100 | 110 | 175 | 190 | 210 400 600 | 1000 | 1000
