Vibration Shaker Head Expander For FEA Technology Custom Shapes And Sizes

Brand Name:	Jianqiao
Model Number:	SZ-1010

Detail Information

Product Description

Detail Information

Document:

Climatic Test Chamber Catal...25.pdf

Name:

High Quality Head Expander

Frequency:

2 KHz

Custom:

Shapes And Sizes

Characteristics:

FEA Technology

Types:

Guided / Unguided

Packaging Details:

Wooden case

Highlight:

FEA Head Expander

Head Expander Custom

Product Description

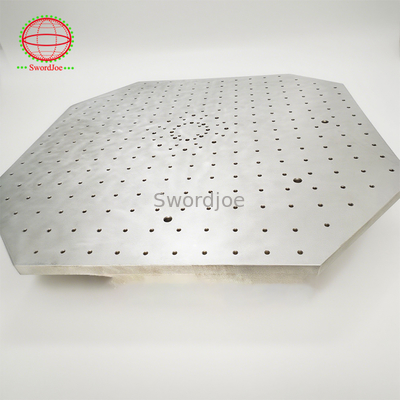

Head Expander for Vibration Shaker

Our Head Expanders provide larger vertical test mounting surfaces for vibration testing applications. Manufactured from lightweight magnesium alloy for optimal strength-to-weight ratio, with aluminum alloy options available for smaller fixtures.

Key Features

Enables simultaneous testing of multiple items, reducing total test cycle time
Load support guidance for safe mounting of large payloads, protecting shaker suspension systems
Ideal for testing large, heavy packages under demanding transportation test profiles
Customizable designs available to meet specific specimen mounting requirements
Available in cube, L-type, and T-type configurations for multi-axis testing

Applications

Designed as bolt-on platforms for shaker armatures to accommodate large objects during vertical axis (Z-axis) vibration testing. Particularly valuable when armature space constraints prevent direct mounting of large fixtures and test objects.

Construction & Materials

Fabricated from high-quality aluminum or magnesium alloy with cast or welded structures. Available in circular or square shapes to suit various test requirements. Guided head expanders (Load Support Platforms) recommended for voluminous or overhanging objects to enhance loading capacity and prevent overturning moments.

Technical Specifications

Model	Vertical Head Expander (Square) Specification	Effective Mass (kg)	Upper Frequency Limit (Hz)
CZ0303	7 \| 8 \| 10	2000	2000
CZ0404	12 \| 13 \| 21	2000	2000
CZ0505	23 \| 29 \| 32 \| 35	2000	2000
CZ0606	35 \| 38 \| 40 \| 48	1000-2000	1000-2000
CZ0707	40 \| 43 \| 60 \| 70 \| 80	1000-2000	1000-2000
CZ0808	60 \| 70 \| 80 \| 85 \| 100	800-1500	800-1500
CZ0909	80 \| 95 \| 105 \| 120	500-1000	500-1000
CZ1010	73 \| 100 \| 110 \| 175 \| 190 \| 210	400-1000	400-1000

Testing Capabilities

Designed for comprehensive vibration testing applications including design qualification, product reliability assessment, and environmental stress screening. Features heavy steel structure and high-quality mechanical linkages for extended service life.

Installation Note: Supported on air springs to isolate vibration transmission, eliminating the need for special foundations. Can be installed on standard industrial flooring.
