Quality Durable Guided / Unguided Head Expander For Vibration Test Machine factory
<
Quality Durable Guided / Unguided Head Expander For Vibration Test Machine factory
>

Durable Guided / Unguided Head Expander For Vibration Test Machine

Brand Name: Jianqiao
Model Number: SZ-1010
Tags

Vibration Test Fixtures

Shaker Head Expander

Vibration Shaker Head Expander

Product Details

Name: High Quality Head Expander Frequency: 2 KHz
Custom: Shapes And Sizes Characteristics: FEA Technology
Types: Guided / Unguided
Highlight

Guided Head Expander

,

Unguided Head Expander

Product Description

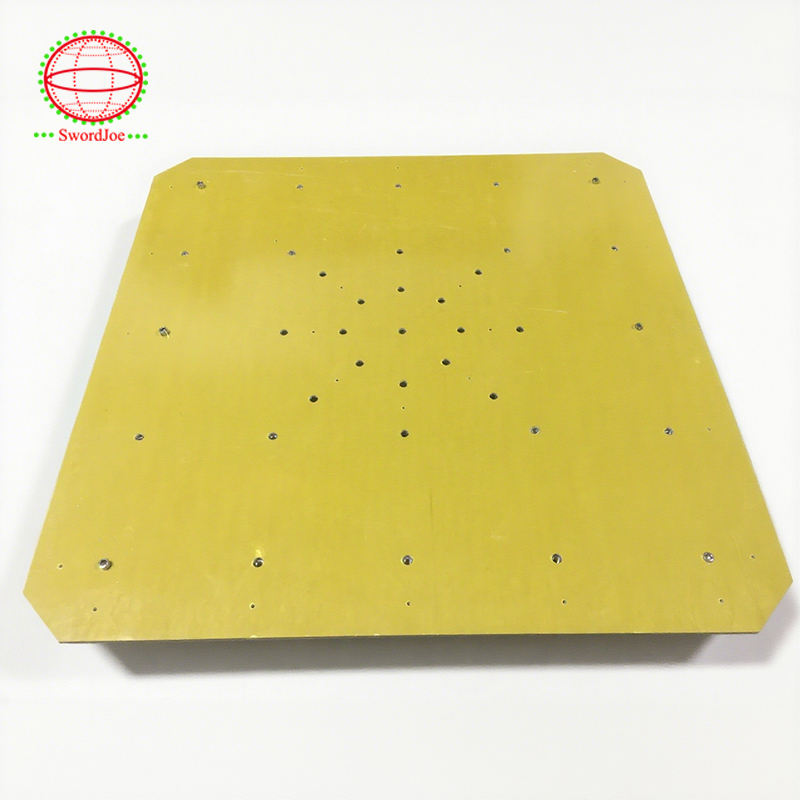

Head Expander for Vibration Test Machine
Head Expander: Round & Square
For most vibration test applications, a Head Expander is essential when the test specimen or fixture exceeds the armature surface dimensions. The Head Expander provides an expanded mounting surface for larger test specimens and fixtures.
Constructed from lightweight magnesium or cost-effective aluminum, our Head Expanders are available in standard configurations or can be customized to meet specific requirements. Each unit features load support capabilities to safely accommodate larger test specimens while protecting the shaker suspension system from damage.
We offer design and customization services for both new and existing vibration test systems. All Head Expanders undergo rigorous testing to meet strict frequency, table weight, acceleration, amplitude uniformity, and lateral movement requirements.
Key Features
  • Finite element analysis verified for all models
  • Engineered to enhance vibration test system performance
  • Manufactured using high-quality processes for consistent technical performance
  • Available in square or round configurations with magnesium or aluminum construction
  • Custom shapes and sizes available upon request
Vertical Head Expander Specifications
Model 7 8 10 Effective mass (kg)
CZ0303 2000 2000 2000 Up limit frequency (Hz)
CZ0404 12 13 21
  2000 2000 2000
CZ0505   23 29 32
  2000 2000 2000 2000
CZ0606   35 38 40
  1000 1500 2000 2000
CZ0707   40 43 60
  1000 1000 2000 2000
CZ0808   60 60 70
  800 1000 1200 1300
CZ0909     80 95
    500 1000 1000
CZ1010     73 100
    400 600 1000

Product Highlights

Head Expander for Vibration Test Machine Head Expander: Round & Square For most vibration test applications, a Head Expander is essential when the test specimen or fixture exceeds the armature surface dimensions. The Head Expander provides an expanded mounting surface for larger test specimens and ...
