Name: Vertical Head Expander For Vibration Test System Accommodate Larger Payloads
Brand: Guangdong Jianqiao Testing Equipment Co., Ltd.
SKU: SZ-1010
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Name: High Quality Head Expander

Frequency: 2 KHz

Custom: Shapes And Sizes

Characteristics: FEA Technology

Types: Guided / Unguided

Highlight:

Vibration Test Head Expander

Vertical Head Expander

Basic Infomation

Brand Name: Jianqiao

Model Number: SZ-1010

Document: Climatic Test Chamber Catal...25.pdf

Payment & Shipping Terms

Packaging Details: Wooden case

Gallery

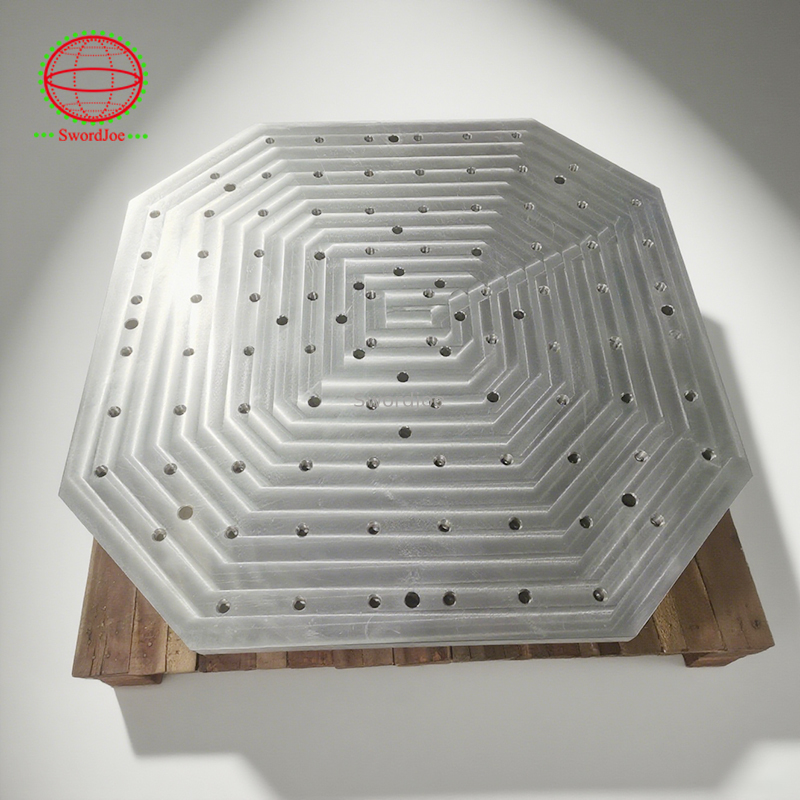

Vertical Head Expander For Vibration Test System Accommodate Larger Payloads

Product Description

Head Expander for Vibration Test System

The high-quality head expanders increase the capability of existing shaker systems by allowing users to increase the effective mounting surface compared to that of the armature, and thus accommodate larger payloads.

Key Benefits

Increase the effective mounting surface of the shaker armature
Accommodate larger payloads
Increase the quantity of test items in one test to reduce testing time
Provide increased flexibility in fixture design

Product Features

High-quality aerospace-grade magnesium alloy structure with excellent damping properties
Usable frequency range up to 2 kHz
Standard insert pattern in M8, M10 or 3/8 UNC insert sizes
Accurate, in-house tested dynamic performance (first mode data supplied)
Includes full mounting kit with tools
Corrosion resistant: Non-machined parts are painted; machined parts are coated with lubricant
Standard off-the-shelf design for short lead time
Full technical support
Accelerometer options available

Technical Specifications

Designed using finite element analysis (FEA) technology, Head Expanders are cast from a high-strength, aerospace-grade magnesium alloy with excellent damping properties to minimize force dispersion. They have a usable frequency range from DC - 2000 Hz. To prevent corrosion, non-machined parts are painted, and machine parts are coated with lubricant.

Head Expander Types

Guided head expanders: Enable testing of payloads with masses greater than those the shaker can support. Available for shakers (whether trunnion- or combo-mounted) they are 1200 mm² in size and have a support capability up to 1200 kg.
Unguided head expanders: Allow testing of payloads whose dimensions exceed those of the shaker's armature work surface. These accommodate larger - not heavier - articles and do not provide additional load support.

Included Components

All head expanders are supplied complete with fasteners and fitting tools, including keyed payload attachment inserts in both grid and armature patterns, as well as armature screws, dedicated wrench key and torque wrench, and lifting eye-bolt.

Thermal Barrier Options

By reducing heat conductivity between payload and shaker, thermal barriers enable vibration testing systems to operate with climactic chambers for environmental tests. We offer thermal barriers to match all sizes of head expander; other insert patterns can be supplied to special order.

Model Specifications

Model	Vertical Head Expander (Square) Specification	Effective Mass (kg)	Upper Frequency Limit (Hz)
CZ0303	7 \| 8 \| 10	2000	2000
CZ0404	12 \| 13 \| 21	2000	2000
CZ0505	23 \| 29 \| 32 \| 35	2000	2000
CZ0606	35 \| 38 \| 40 \| 40 \| 48	1000-2000	1000-2000
CZ0707	40 \| 43 \| 60 \| 70 \| 80	1000-2000	1000-2000
CZ0808	60 \| 60 \| 70 \| 80 \| 85 \| 100 \| 100	800-1500	800-1500
CZ0909	80 \| 95 \| 95 \| 105 \| 120 \| 120	500-1000	500-1000
CZ1010	73 \| 100 \| 110 \| 175 \| 190 \| 210	400-1000	400-1000
