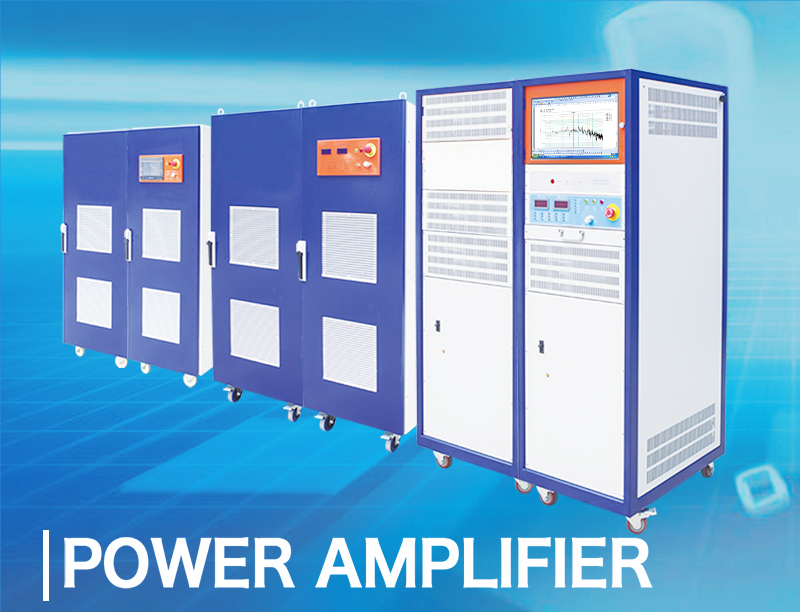

Modular Vibration Test Amplifier High Performance For Shaker Control

Brand Name: Jianqiao

Model Number: JQ

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Supply Ability: 300 set/year

In vibration testing systems, the power amplifier supplies the power to drive the electrodynamic shaker. The vibration controller outputs a simple analog signal that describes the amplitude and frequency of the vibration profile in terms of a rapidly varying voltage. This voltage signal cannot drive the shaker, so the power amplifier converts it to a high-level actuator current that can.

Without this device, the control loop would essentially end at the controller's output. The power amplifier's function is straightforward; however, the device is necessary for vibration control, so engineers should understand its function. Supplying power to the shaker haphazardly can lead to product damage or employee harm.

Power Amplifiers for Shaker Control

Amplifier Gain

The power amplifier's gain is an adjustable value, typically controlled with a knob on the front plate of the device. The gain determines the extent to which the amplifier boosts the analog signal. Turning the gain to 100% boosts the drive to the amplifier's maximum capacity.

If a test is not running, reset the amplifier gain. If any question exists, shut down the amplifier. This action will ensure that power does not run to the shaker while the engineer sets up/adjusts the system. An unexpected power surge to the shaker can have dangerous consequences. Additionally, never change the amplifier gain while the test is running.

The amplifier gain differs from the system gain: a ratio of the accelerometer response (g) and drive voltage (V). Each device in the test setup—including the amplifier—affects the overall gain, which engineers use to determine the expected acceleration for a given voltage. Many drive limits, such as startup max system gain and startup max output consider the overall system gain.

What Amplifier Gain Value Should I Set?

With every new test setup, an engineer must determine the correct test levels, including amplifier gain. They want to provide sufficient power without causing unnecessary fatigue or damage. Typically, the amplifier manufacturer will recommend an initial gain level, such as the standard 70%.

From there, the engineer can determine the suitable amplifier gain by performing a system check before running the test and reviewing the projected levels during start-up.

In the System Check mode verifies that the accelerometer, amplifier, shaker, and control system are functioning. Several System Check stop codes may indicate that the amplifier gain is too low:

No acceleration detected on Ch1
Max system drive voltage
Output signal clipping

The projected levels toolbar in JQTV-9004/9008/90016 provides additional diagnostic information about the expected results of a test during start-up. When the engineer starts the test in manual mode or schedules it at a lower initial level, the software can project the values for the lower level to each level in the test schedule.

If a stop code appears while running a test, the VibrationVIEW Help file will indicate if the amplifier gain is a likely issue. After the engineer has determined a suitable gain level, they should use the same gain settings each time they run the same test profile on the same test setup.

Should I Turn My Amplifier All The Way Up?

Running the test at full gain may be acceptable, but the suitable value is not always 100%.

Errors Related to the Amplifier

While the amplifier is an essential piece of equipment, it can be a source of error. Amplifiers are limited to their output voltage and current capabilities. If the amplifier trips, it will display an error code on its front panel. Typical reasons include:

Over-current
Over-travel (displacement)
Over-voltage
Temperature sensors (overheat)

Amplifier Noise

The amplifier's field supply or a ground loop can generate system noise. Additionally, the system may pick up on ambient noise between the controller and amplifier. While all power amplifiers distort the signal to some degree, a mindful test setup can minimize the impact of amplifier noise. To help prevent amplifier noise, engineers can:

Ensure cables are shielded and not overly long to reduce the potential for electromagnetic interference
Check the ground connections for the amplifier, shaker, and controller

Purchasing a Power Amplifier

A vibration shaker and its amplifier must be powerful enough to drive the device under test and fixture to the test's required force and motion levels. The shaker's suspension must be sufficiently linear to reproduce the low-amplitude characteristics of the demand, and the amplifier's noise floor must be low enough not to mask these features.

When choosing a power amplifier, engineers should consider the system's overall power requirements, including overall mass and test specifications. Typically, they use the equation force = mass x acceleration for shaker sizing, but it also applies to the amplifier. The heavier the system, the more power it will need. Likewise, the higher the acceleration, the more power it will need.

A test's power requirement increases as the shaker and amplifier performance degrades. Engineers may want to establish a baseline voltage, current, and temperature to monitor the amplifier's performance over time. Power amplifiers have a typical lifetime of 15-20 years. The engineer should shut down the system for maintenance if the voltage exceeds a predetermined threshold value during a simple diagnostics test.

The electrodynamic shaker systems offered by Vibration Research consist of a shaker and a matching linear direct-coupled power amplifier. Customers can add additional components to the basic system to tailor it to specific needs. The systems have been designed and manufactured with both its shakers and matching amplifiers in tandem.

Product Highlights

Power Amplifier for Vibration Test Table In vibration testing systems, the power amplifier supplies the power to drive the electrodynamic shaker. The vibration controller outputs a simple analog signal that describes the amplitude and frequency of the vibration profile in terms of a rapidly varying ...

Send Inquiry

Industrial Vibration Table For Automotive Electronics And Construction Industries

Industrial Vibration Table Designed for rigorous vibration resistance testing, this industrial vibration table is widely used across automotive, electronics, and construction industries to ensure product durability under transport conditions. Key Specifications Frequency: 2000Hz Sine force: 50kN / 5000kg Random force: 50kN / 5000kg Shock force: 98kN / 9800kg / 9918lbf Channel options: 2/4/8/16 Maximum acceleration: 100g Maximum displacement: 100mm (4") / 76mm (3") / 51mm (2")

Digital Control Hydraulic Shock Test System For ISTA Package Test

Hydraulic Shock Test System for ISTA Package Test IS Shock Test Machine The Shock Test Machine is a high-acceleration testing system specifically designed to meet military industry and home appliance testing requirements. Utilizing drop principle technology with air pressure reverse thrust or spring energy storage, it achieves various acceleration levels through adjustable inflation pressure. For higher accelerations, the system includes a waveform amplifier. This automatic

AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber

Reliable Temperature, Humidity, & Altitude Chamber for Quality Testing The Temperature, Humidity, and Altitude Chamber is a state-of-the-art testing solution designed to simulate a variety of environmental conditions for research, product testing, and quality control. These chambers offer precise control over temperature, humidity, and altitude levels, making them ideal for industries such as aerospace, automotive, electronics, and pharmaceuticals. Key Features Programmable

2000Hz Horizontal Slip Table Vibration Testing Humidity Range ≤90%

Slip Table for Vibration Shaker System A slip table in vibration testing is an auxiliary table used with a vibration exciter (shaker) to transmit motion in the horizontal direction. It's essential for testing specimens in a horizontal orientation, particularly when the specimen's orientation must be maintained throughout the test. Slip tables also enable testing of large and heavy specimens that might exceed the capacity of the shaker's vertical table.Key Functions and

Request A Quote

Please use our online inquiry contact form below if you have any questions, our team will get back to you as soon as possible.

Email*

Phone / WhatsApp

Name

Company Name

Inquiry Message*

Attach Files

Choose Files

You can upload up to 5 files and Each file sized 10M max.

Power Output:	8 To 56 KVA Range	Control:	Optional Remote Panel (200m Range)
Interface:	Microprocessor Control With LCD Display	Efficiency:	Over 90% Energy-efficient
Power Supply:	1~ / N / PE 230 V±5% 50/60 Hz, CEE 7/7	Voltage/Current Mode:	Yes/Yes
Highlight	Modular Vibration Test Amplifier , Shaker Control Vibration Test Amplifier
