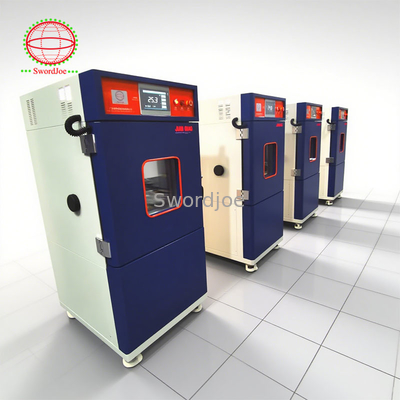

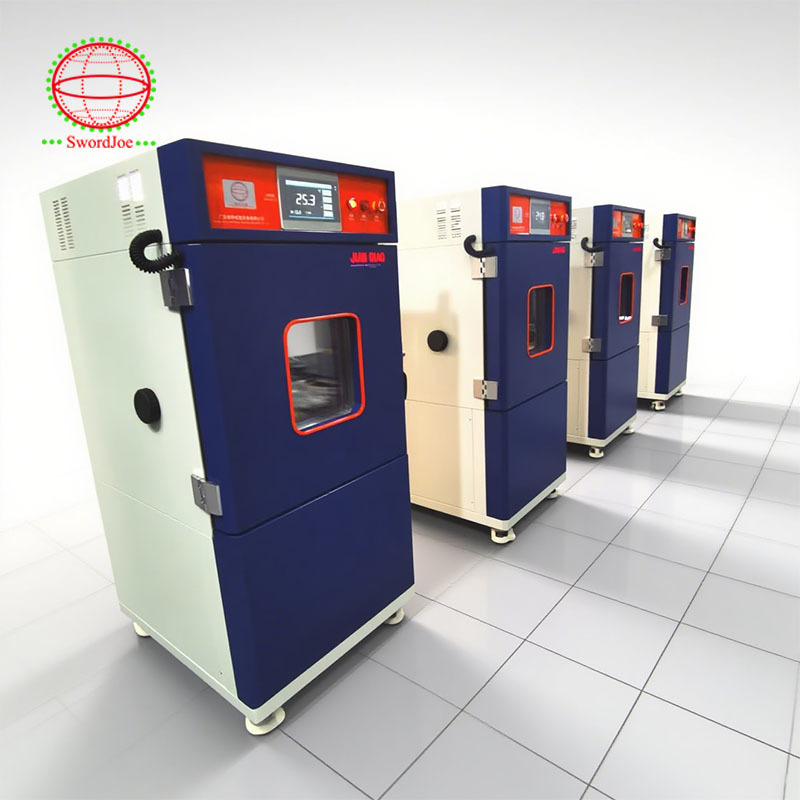

Electronic EV Battery Test Equipment Battery Thermal Cycling Tester
Product Details
| Temperature Uniformity: | ±1℃ | Total Output Power: | 10KW-120KW |
|---|---|---|---|
| Test Voltage Current: | 60V/20A | Table Size: | 400mm*400mm (Can Be Customized) |
| Highlight |
Electronic Battery Test Equipment,EV Battery Test Equipment,EV Battery Thermal Cycling Tester |
||
Product Description
- Cold-end controlling technology
- Report metering results
- Energy saving up to 35%
- Double 85° without starting the compressor
- Quad-insulation, no fog or drop
- No frost for long-time low temperature and humidity
All products comply with international standards including ISO, ASTM, AATCC, TAPPL, UL, VDE, IEC, ANSI, CSA, JIS BS, EN, DIN, SATRA, GB, and CNS.
- Stainless steel 304# 1.2mm interior
- Energy-efficient refrigeration with exclusive electronic expansion valve system
- Specialized humidity generation and control
- Unique thermal break construction for extreme testing
- 3" cable port with cover, two shelves & casters included
- 5.5" touch screen interface
- Improved performance and energy savings with USB or Internet access
- Multi-lingual display (English/Chinese, customizable)
- Alarm diagnostics and history with troubleshooting back trace
- Standard USB port & customizable Remote WLAN & APP
| Model | JQ-100-C | JQ-150-C | JQ-225-C |
|---|---|---|---|
| Content product (L) | 400×400×500mm | 500×500×600mm | 600×500×750mm |
| External dimensions | 920×1420×1550mm (W×D×H) | 1020×1520×1750mm (W×D×H) | 1120×1520×2050mm (W×D×H) |
| Temperature range | 0℃~150℃ (Model A) -20℃~150℃ (Model B) -40℃~150℃ (Model C) -70℃~150℃ (Model D) Optional humidity |
||
| Temperature uniformity | ±1℃ | ||
| Heating rate | 3~5℃/min | ||
| Cooling rate | 0.7℃~1℃/min | ||
| Control System | Original Korean "TMEI" touch screen programmable controller with fixed value or program operation. 120 program groups, 100 segments each. Communication: RS232/RS485 at 9.6Kbps. |
||
| Sensor | Imported PT100, precision 0.01 | ||
| Electronic control system | Electrical control | ||
| Cooling System | Imported Germany or US compressor | ||
| Heating system | 316L stainless steel fin radiator | ||
| Test chamber | Inner chamber: High-grade mirror stainless steel Outer casing: SU304 stainless steel or A3 steel plate |
||
| Insulation Materials | PU + fiberglass | ||
| Observation window | Anti-fog observation window with illumination light | ||
| Safety protection | Multiple safety protection measures | ||
| Standard configuration | 50mm test hole, 2 sample test stands | ||
| Power supply | AC220±5% 50HZ | AC380±5% 50HZ | |
| Power (kW) | 4.5 | 7 | 7.5 |
Product Highlights
Battery Thermal Cycling Tester for EV Battery and Electronic Battery Testing The Temperature Cycle Tester simulates the ability of battery packs, battery systems, battery modules, and cell samples to adapt to different temperature and humidity conditions. Key Advantages Cold-end controlling ...
