Features

Specifications

Control Method Plc: Touch Screen Control

Temperature Uniformity: ±1℃

Impact Height: 0-1000mm (Can Be Set)

Power Supply: AC220±5% 50HZ AC380±5% 50HZ

Highlight:

EV Battery Temperature Cycling Tester

Stainless Steel Electronic Battery Tester

EV Electronic Battery Tester

Basic Infomation

Payment & Shipping Terms

Packaging Details: Wooden case

Gallery

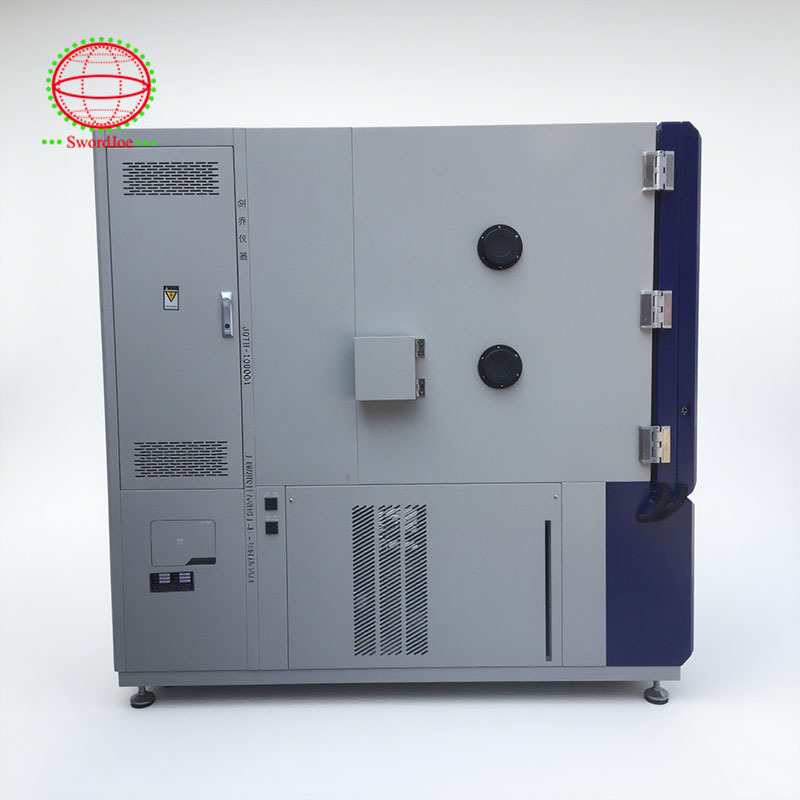

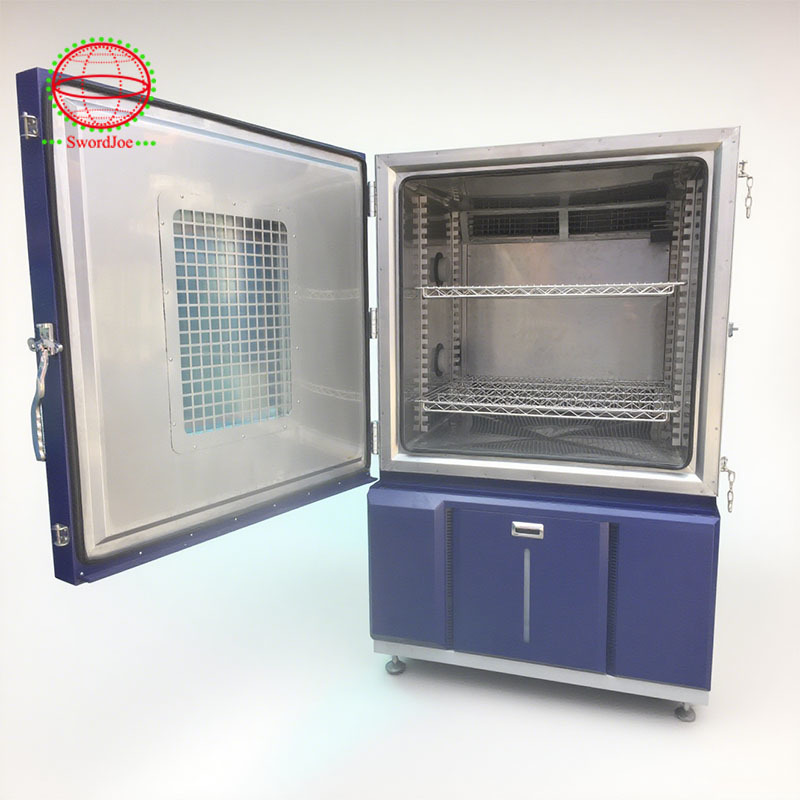

EV Battery Temperature Cycling Tester Stainless Steel Electronic Battery Tester

Product Description

Battery Temperature Cycling Tester for EV Battery and Electronic Battery Test

The Temperature Cycle Tester simulates the ability of battery packs, battery systems, battery modules, and cell samples to adapt to various temperature and humidity conditions. This constant temperature and humidity chamber (also known as high and low temperature alternating humidity test chamber) is primarily used in material testing for heat resistance, cold resistance, dry resistance, and moisture resistance evaluations.

Key Features

Color touch-sensitive screen controller with multilingual support (Chinese, English, Russian)
Easy program editing with real-time system operation data display
Automatic fault diagnosis with solution recommendations
Cold-end controlling technology
Energy saving up to 35%
Double 85° operation without compressor start
Quad-insulation design prevents fogging and dripping
No frost formation during long-term low temperature and humidity tests

Technical Specifications

Model	JQ-100-C	JQ-150-C	JQ-225-C
Content product (L)	400×400×500mm	500×500×600mm	600×500×750mm
External dimensions	920×1420×1550mm (W×D×H)	1020×1520×1750mm (W×D×H)	1120×1520×2050mm (W×D×H)
Temperature range	0℃~150℃ (Model A) -20℃~150℃ (Model B) -40℃~150℃ (Model C) -70℃~150℃ (Model D) Optional humidity
Temperature uniformity	±1℃
Heating rate	3~5℃/min
Cooling rate	0.7℃~1℃/min
Power supply	AC220±5% 50HZ	AC380±5% 50HZ
Power (kW)	4.5	7	7.5

Advanced Control System

The tester features a Korean "TMEI" touch screen programmable controller supporting both fixed value and program operation modes. Capable of editing 120 program groups (100 segments each) with RS232/RS485 communication (9.6Kbps rate).

Premium Components

Imported PT100 sensor with 0.01 precision
German/US imported compressor cooling system
316L stainless steel fin radiator heating system
High-grade mirror stainless steel inner chamber
SU304 stainless steel or A3 steel plate outer casing
PU + fiberglass insulation materials
Anti-fog observation window with illumination

Compliance Standards

IEC60068-2-1.1990, IEC60068-2-2.1974, GJB150.3, GJB150.4, GB11158, GB10589-89, GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.22-2001, GB10592-89, ISO, ASTM, AATCC, TAPPL, UL, VDE, IEC, ANSI, CSA, JIS BS, EN, DIN, SATRA, GB, CNS

Additional Features

Stainless steel 304# 1.2mm interior
Energy-efficient refrigeration with electronic expansion valve system
Specialized humidity generation and control
Unique thermal break construction for extreme testing
3" cable port with cover, two shelves & casters included
5.5" touch screen interface
USB/Internet connectivity options
Multi-language display support
Comprehensive alarm diagnostics with history tracking
Standard USB port with optional WLAN/APP customization
