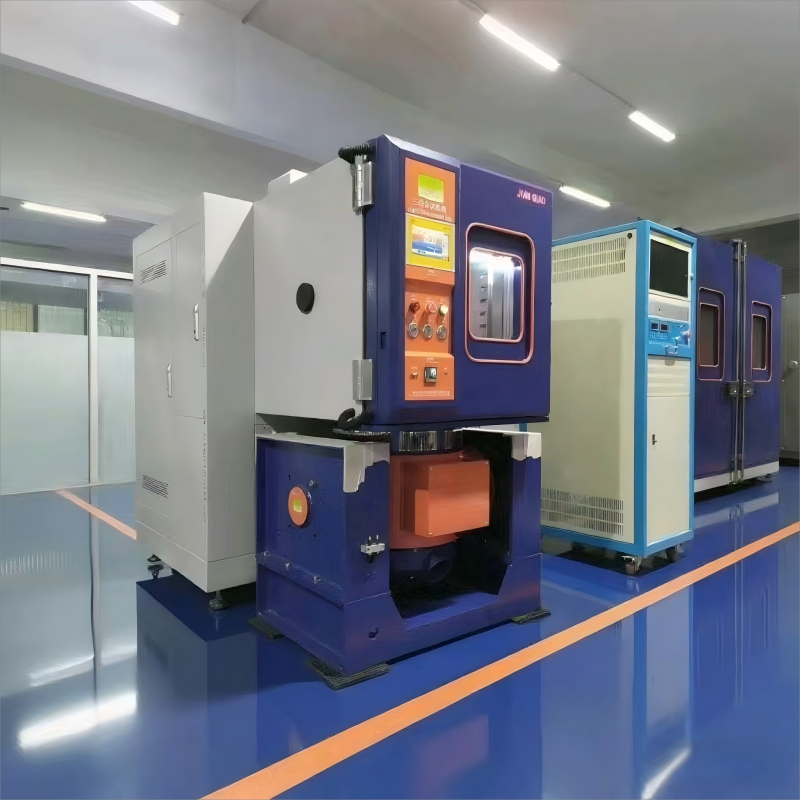

AC 380V 50Hz / 60Hz Battery Agree Chamber For Temperature Humidity Vibration Testing

Reliability & Abuse Testing for Lithium Ion Cells in Electric Vehicles

• Capacity discharge test at -20°C, 0°C, 25°C and 45°C
• High temperature endurance: Raise temp at 5°C/min to 130°C ±2°C, soak for 30 min
• Temperature cycling: Cycles between -40°C and +85°C (30 cycles without electrical operation) or -20°C to +65°C (30 cycles with electrical operation)

EV & HEV Rechargeable Energy Storage System Safety & Abuse Testing

• Thermal Stability: Increasing temperature in 5°C increments
• Temperature Cycling: Cycle between 70°C to -40°C (5 cycles total)

Primary Batteries, Part 4: Safety of Lithium Batteries

• Altitude Simulation Test: Store at ≤11.6 kPA for ≥6 hrs at ambient
• Thermal Cycling: Store at 75°C and -40°C (10 cycles with ≤30 min transitions)
• External Short Circuit: Stabilize at 55°C
• Thermal Abuse: Heat at 5°C/min to 130°C, soak for 10 min

Standard for Lithium Batteries

• Short circuit test at 20°C & 55°C
• Heating test from 20°C to 130°C at 5°C/min, soak for 10 min
• Temperature cycling test (10 cycles total): 70°C (4h), 20°C (2h), -40°C (4h)
• Altitude Simulation Test: Store at 11.6kpa (50,000) at 20°C for 6h

UN Lithium Battery Testing Requirements

• Altitude Simulation Test: Store at 11.6kpa (50,000) at 20°C for ≥6h
• Temperature Cycling Test: Store at 75°C and -40°C (10 cycles total with 30 min transitions)

Secondary lithium cells and batteries for portable applications

Discharge performance test at 20°C and -20°C

Safety requirements for portable sealed secondary cells

• Altitude Simulation Test: Store at 11.6kpa (50,000) at 20°C for 6h
• Temperature cycling: 75°C (4h), 20°C (2h), -20°C (4h) (5 cycles total)
• Thermal Abuse: Heat from 20°C to 130°C at 5°C/min, soak for 10 min

Household and Commercial Batteries

• Heating test from 20°C to 130°C at 5°C/min, soak for 10 min
• Temperature cycling test (10 cycles total): 70°C (4h), 20°C (2h), -40°C (4h)

Laptop Rechargeable Batteries

• Altitude Simulation Test: Store at 11.6kpa (50,000) at 20°C
• Heating Test: 130°C for 10 min
• Temperature Cycling Test: Store at 75°C and -40°C (5 cycles total)

Phone Rechargeable Batteries

• Heating Test: 130°C for 60 min
• Temperature Stability: 150°C for 10 min
