Battery Cell And Pack Agree Chamber 3-2000Hz Environmental Chamber For Battery Testing

1
MOQ
Battery Cell And Pack Agree Chamber 3-2000Hz Environmental Chamber For Battery Testing
Features Gallery Product Description Chat Now
Features
Specifications
Certifications: CE, ISO 9001:2008
Power Source: 380V AC 50/60Hz
Internal Material: Stainless Steel(SUS304)
Inner Chamber: 1000*1000*1000
Temperature Cooling Rate: 0.8~1.5°C/Min
Frequency Rang: 3-2000Hz
Controller: Standard: South Korea TEMI-1500
Usage: Environmental Testing
Fan: Centrifugal Blower
Internal Dimens: Customizable
Chamber Material: Stainless Steel
Highlight:

Battery Cell Agree Chamber

,

Battery Pack Agree Chamber

,

2000Hz Environmental Chamber For Battery Testing
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQTHV-1000
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5 weeks
Payment Terms: ,T/T
Supply Ability: 300/YEAR
Product Description
Battery Agree Chamber for Battery Cell and Pack Testing
Product Specifications
Attribute Value
Certifications CE, ISO 9001:2008
Power Source 380V AC 50/60Hz
Internal Material Stainless steel (SUS304)
Inner Chamber 1000*1000*1000
Temperature cooling rate 0.8~1.5°C/Min
Frequency Range 3-2000Hz
Controller Standard: South Korea TEMI-1500
Usage Environmental testing
Fan Centrifugal blower
Internal Dimensions Customizable
Chamber Material Stainless steel

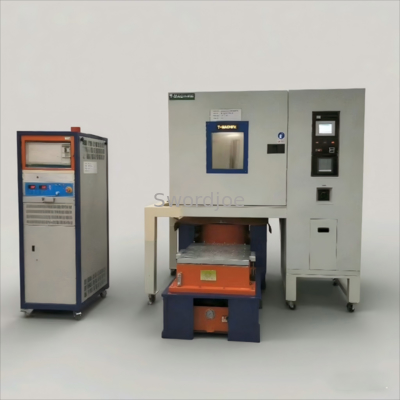

Battery Cell And Pack Agree Chamber 3-2000Hz Environmental Chamber For Battery Testing 0 Battery Cell And Pack Agree Chamber 3-2000Hz Environmental Chamber For Battery Testing 1
Compliance Testing Standards
Test Specification Description
IEC 62660-2 Reliability & Abuse Testing for Lithium Ion Cells in Electric Vehicles
  • Capacity discharge test at -20°C, 0°C, 25°C and 45°C
  • High temperature endurance test (5°C/min to 130°C ±2°C, soak for 30 min)
  • Temperature cycling between -40°C to +85°C for 30 cycles
SAE J2464 EV & HEV Rechargeable Energy Storage System Safety & Abuse Testing
  • Thermal stability testing in 5°C increments
  • Temperature cycling between 70°C to -40°C (5 cycles)
IEC 60086-4 Primary Batteries, Part 4: Safety of Lithium Batteries
  • Altitude simulation test at 11.6 kPa for 6 hours
  • Thermal cycling between 75°C and -40°C (10 cycles)
UL 1642 Standard for Lithium Batteries
  • Short circuit test at 20°C & 55°C
  • Heating test from 20°C to 130°C at 5°C/min (10 min soak)
  • Temperature cycling test (10 cycles)
UN Lithium Battery Testing UN Lithium Battery Testing Requirements
  • Altitude simulation test at 11.6 kPa for 6 hours
  • Temperature cycling between 75°C and -40°C (10 cycles)
IEC 61960 Secondary lithium cells and batteries for portable applications
  • Discharge performance test at 20°C and -20°C
IEC 62133 Safety requirements for portable sealed secondary cells
  • Altitude simulation test at 11.6 kPa for 6 hours
  • Temperature cycling (5 cycles)
  • Thermal abuse test (20°C to 130°C at 5°C/min)
UL 2054 Household and Commercial Batteries
  • Heating test from 20°C to 130°C at 5°C/min (10 min soak)
  • Temperature cycling test (10 cycles)
Available Models
Model JQTHV-500 JQTHV-1000 JQTHV-1700 JQTHV-3400
Inner Size (cm) 50*75*65 80*70*90 100*100*100 195*315*516
Volume (L) 512L 1000L 1700L 3400L
Weight (KG) Subject to the actual weight
Temperature Range -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D: -70℃)
Humidity Range 10%~98% RH
Cooling Rate Standard 1℃ /Min or Optional specified
Heating Up Rate Standard 3℃ /Min or specified
Frequency Range 3~5000 Hz (adjustable)
Sine Force (kg) 300kg to 35000kg for chooses or specified.300kg~35t
Displacement (mm) Please see vibration shaker details
Max.Load (kg) Please see vibration shaker details
Exterior material Standard 1.2mm Electrolytic plate Electrostatic spray paint
Interior material SUS 304# Stainless steel plate
Floor load resistance Customized
Languages Chinese, English, Russian
Controller TW DELTA PLC, 7" or 10" color touch screen control
Configuration interface With USB, WLAN, RS232 port, APP function is optional
Compressor French Tecumseh or German Bitzer brand or Bock
Power supply AC380V @50Hz
