Stainless Steel Battery Test Equipment Electronic Universal Tensile Testing Machine
Product Details
| Material: | Stainless Steel | Product Name: | Battery Extrusion Needle Tester |
|---|---|---|---|
| Penetrating Force: | 100~200kg | Drive Mode: | Cylinder Driver |
| Penetrating Speed: | 10~40mm/s | Powe Supply: | 1 Phase AC 220V 60/50Hz |
| Steel Nail: | Dia. 2mm-Dia. 8mm High Temperature Resistance | ||
| Highlight |
Stainless Steel Battery Test Equipment,Battery Test Equipment Electronic,Battery Universal Tensile Testing Machine |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Stainless steel |
| Product name | Battery Extrusion Needle Tester |
| Penetrating force | 100~200kg |
| Drive mode | Cylinder driver |
| Penetrating speed | 10~40mm/s |
| Power supply | AC 1 Phase 220V 60/50Hz |
| Steel nail | Dia. 2mm-Dia. 8mm high temperature resistance |

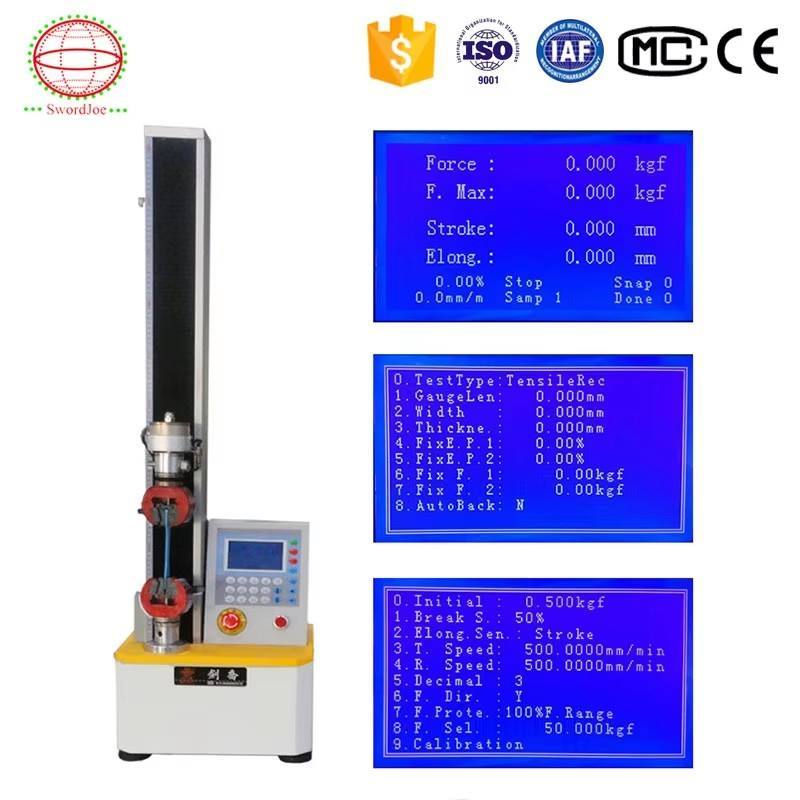

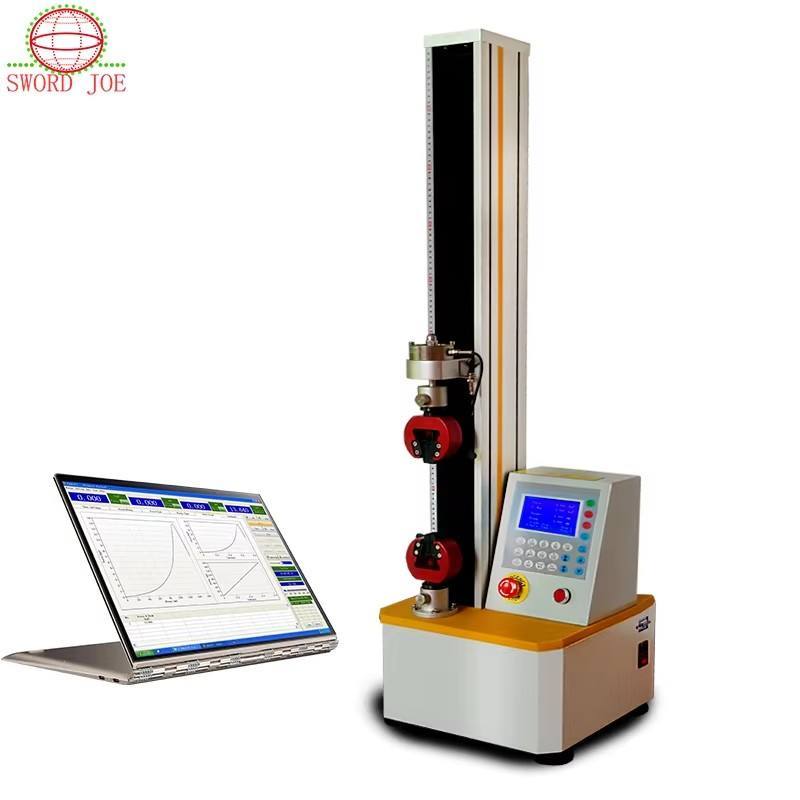

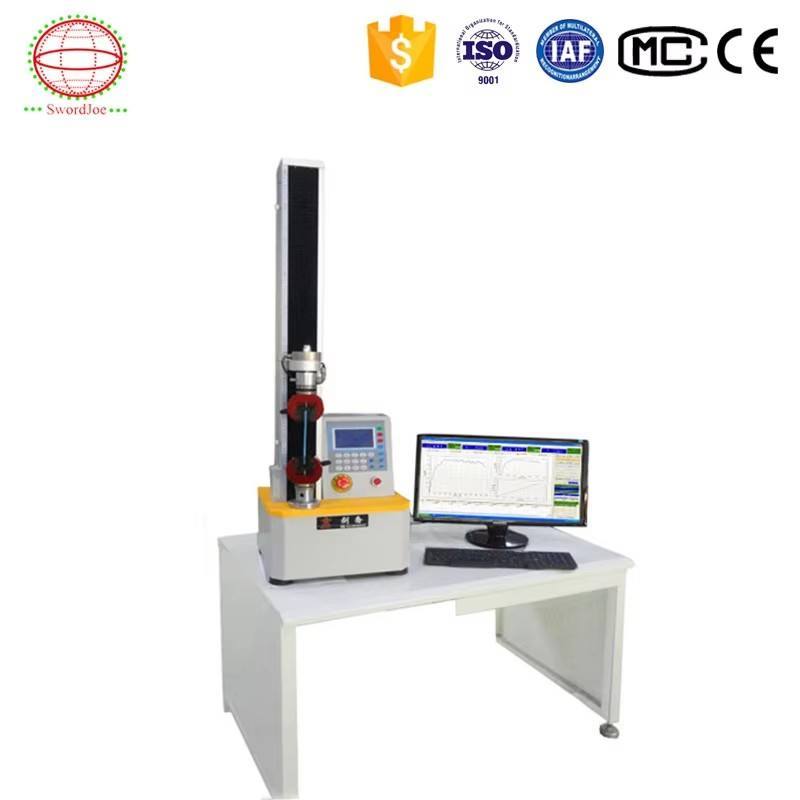

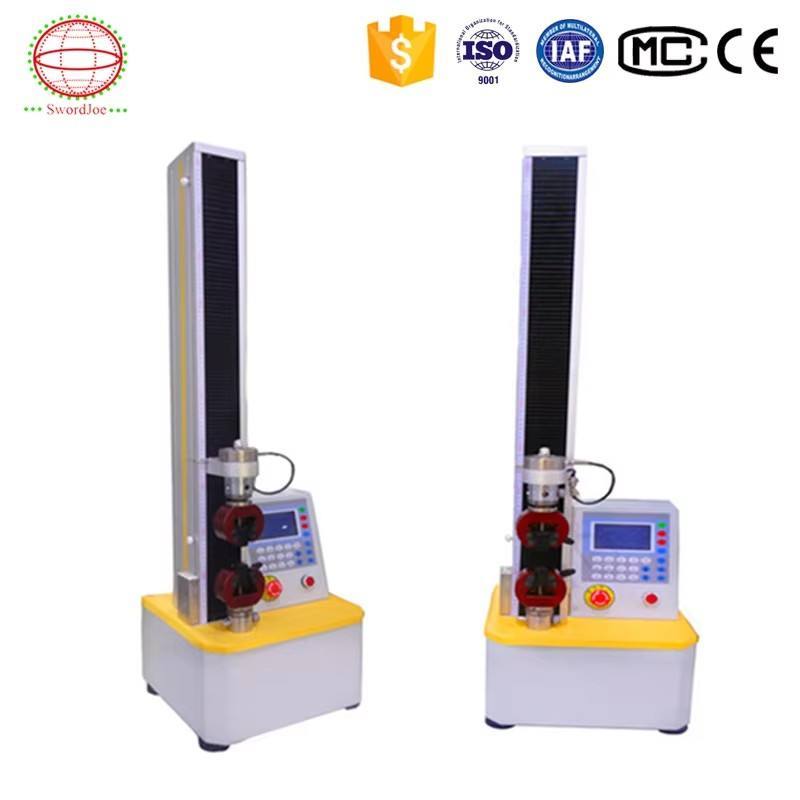

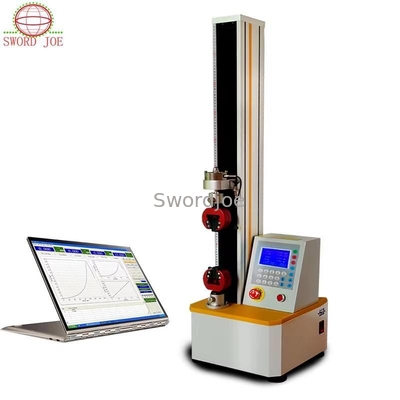

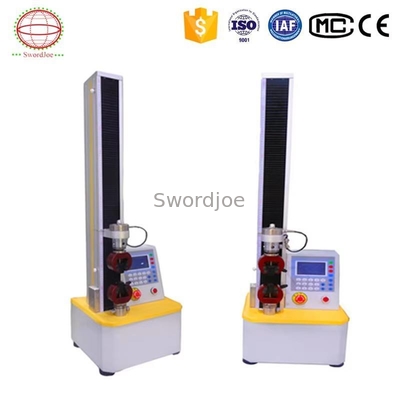

This tensile compression flexural testing machine is designed for comprehensive material testing including elongation, tear strength, peeling force, resistance, bending force, shearing, constant load, constant stroke, three-point bending, and four-point bending. Ideal for testing various materials in industries such as hardware, metal, rubber, footwear, leather, textiles, building materials, insulators, wires, cables, and more.
- LCD control or Computer control options available
- Long stroke (travel) of 1000mm suitable for wire, cable, yarn, and other materials
- Rugged construction for repetitive testing
- One-touch recall of up to 5 most common tests
- Automatic return to 'start' position saves testing time
- Automatic detection of Peak Load and Displacement at Break with color-coded pass/fail identification
- Automatic export of results to printer or external software
- Optional mini printer available
- Wide range of grips available
- Color silicone protector maintains clean machine surface
- RS232 computer connect port
| Model | JQ-8750 |
|---|---|
| Capacity (optional) | 50N, 100N, 200N, 500N, 5000N |
| Unit (Switchable) | Kg, LB, N, KN |
| Load Resolution | 1/250000 |
| Load Accuracy | ±1% |
| Stroke (exclude grips) | 650mm |
| Rotating Rod | Ball screw |
| Test speed | 0.01~500mm/min (adjustable) |
| Speed Accuracy | ±1% |
| Resolution | 0.001mm |
| Sample Rate | 400 times/sec |
| Motor | Step servo drive system |
| Dimensions (W x D x H) | 450 x 350 x 1250 cm |
| Weight (approx) | 115kg |
| Power | 220V, 10A specified |
